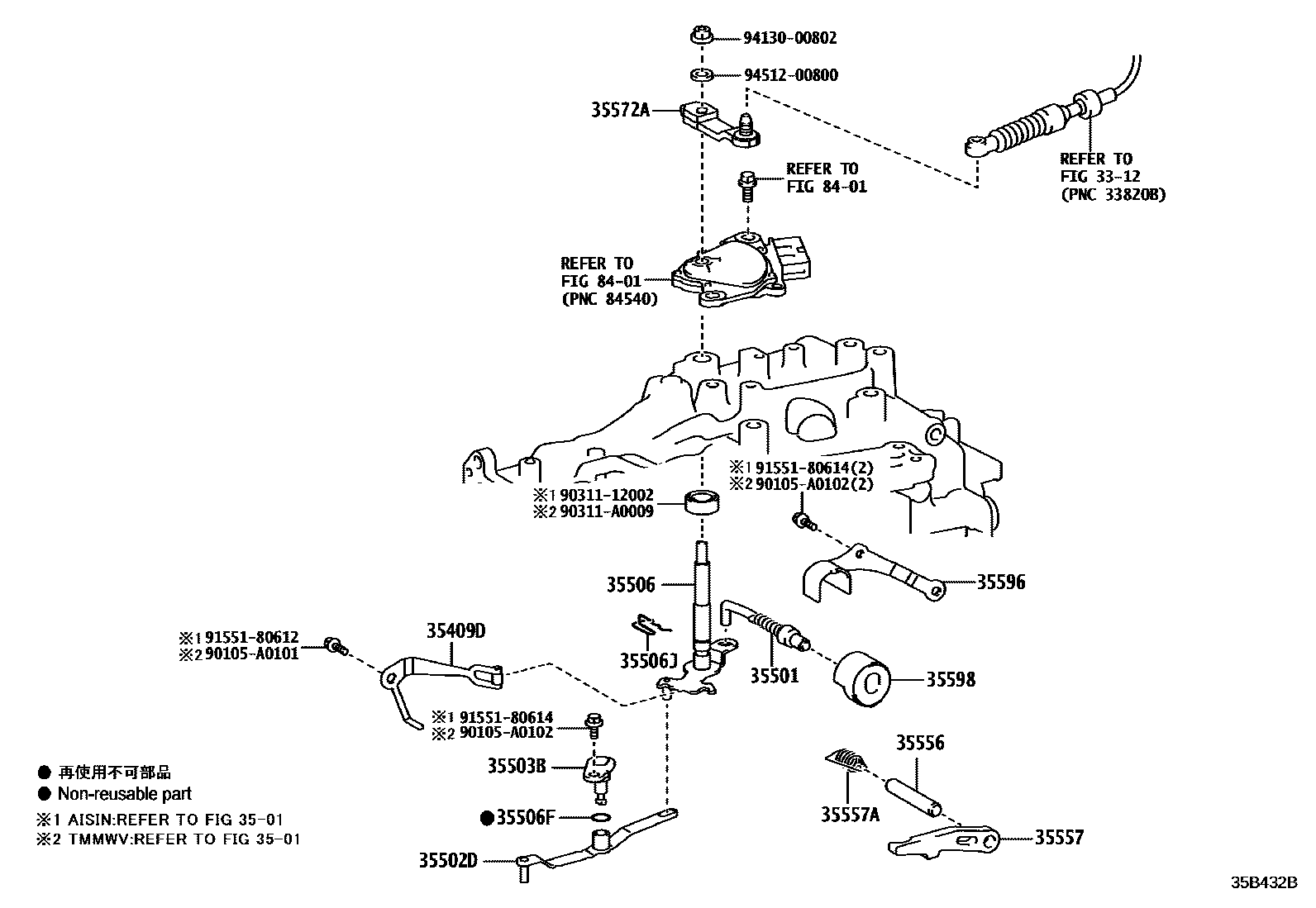

THROTTLE LINK & VALVE LEVER (ATM)

3312

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-48060iTASA1#202306

35501ROD SUB-ASSY, PARKING LOCK

main35501-48040iTASA1#202306

35502DLEVER SUB-ASSY, MANUAL VALVE LINK

main35502-48010iTASA1#202306

35503BSHAFT SUB-ASSY, MANUAL VALVE LINK

main35503-48010iTASA1#202306

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35506-06022iTASA1#202306

TMMWV:REFER 35-01

main35506-48022iTASA15202306

AISIN:REFER 35-01

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90301-09173iTASA15202306

AISIN:REFER 35-01

main90301-A0063iTASA1#202306

TMMWV:REFER 35-01

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09004iTASA1#202306

35556SHAFT, PARKING LOCK PAWL

main35556-48030iTASA1#202306

TMMWV:REFER 35-01

main35556-48040iTASA15202306

AISIN:REFER 35-01

35557PAWL, PARKING LOCK

main35557-48040iTASA1#202306

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-29030iTASA1#202306

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-48051iTASA1#202306

35596PLATE, PAWL STOPPER

main35596-06010iTASA1#202306

TMMWV:REFER 35-01

main35596-48030iTASA15202306

AISIN:REFER 35-01

35598SLEEVE, PARKING LOCK

main35598-06020iTASA1#202306

TMMWV:REFER 35-01

main35598-48040iTASA15202306

AISIN:REFER 35-01

8401

90105A0101

main90105-A0101

90105A0102

main90105-A0102

9031112002

main90311-12002

90311A0009

main90311-A0009

9155180612

main91551-80612

9155180614

main91551-80614

9413000802

main94130-00802

9451200800

main94512-00800

23 parts on this diagram · 1 diagram in section
