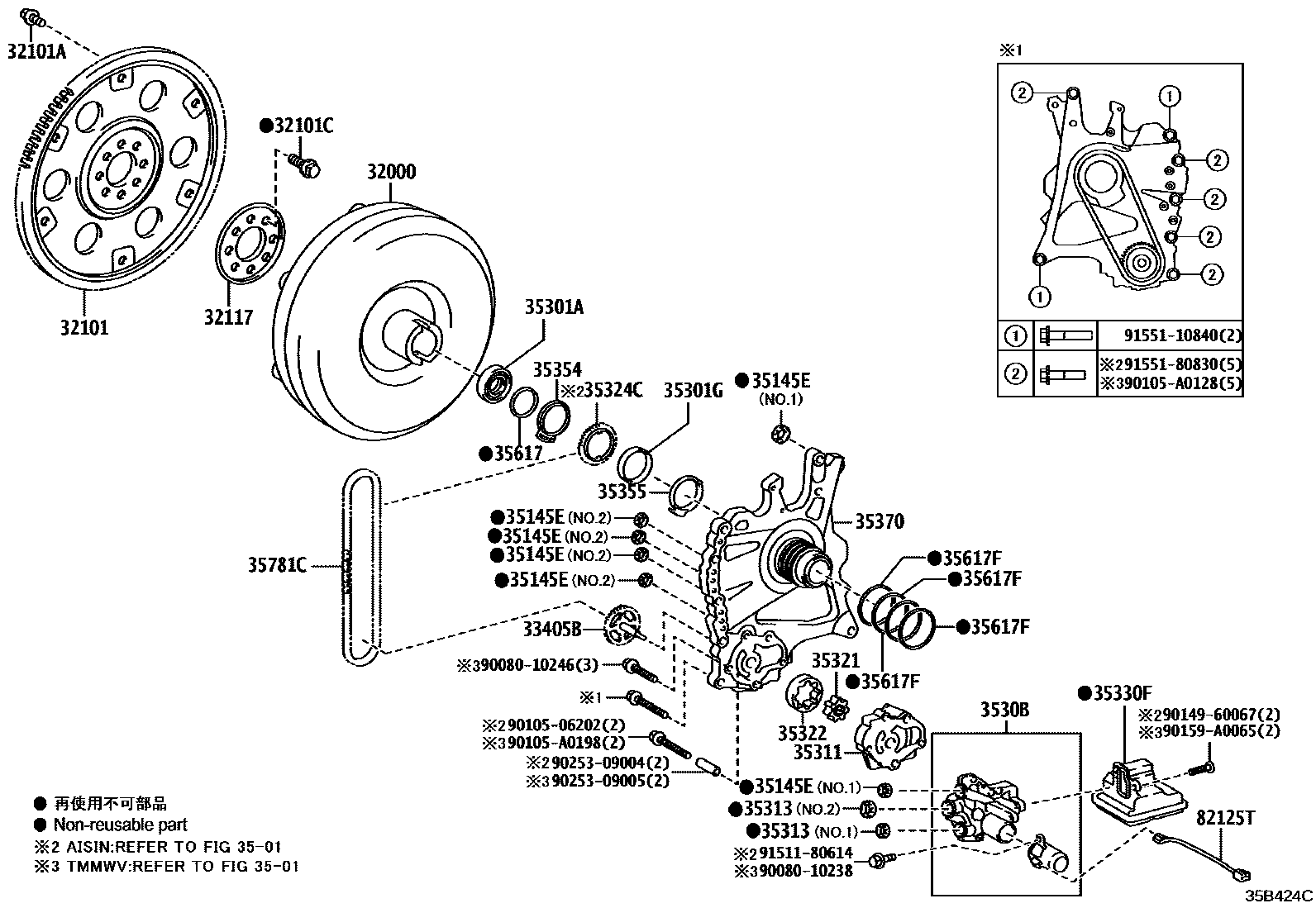

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
TMMWV:REFER 35-01
AISIN:REFER 35-01
32101GEAR SUB-ASSY, DRIVE PLATE & RING
(L)
(J)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX12.4-7.3,BLACK
*9-1.25PX12.4-8.4,SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*12-1.25PX20.3-14.3
33405BSHAFT SUB-ASSY, OIL PUMP DRIVE
TMMWV:REFER 35-01
AISIN:REFER 35-01
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301GBEARING,NEEDLE ROLLER
3530BCOVER SUB-ASSY, FRONT OIL PUMP & SOLENOID
TMMWV:REFER 35-01
AISIN:REFER 35-01
35311BODY, FRONT OIL PUMP
TMMWV:REFER 35-01
AISIN:REFER 35-01
35321GEAR, FRONT OIL PUMP DRIVE
T=16.66,TMMWV:REFER 35-01
T=16.66,AISIN:REFER 35-01
35322GEAR, FRONT OIL PUMP DRIVEN
T=16.66,TMMWV:REFER 35-01
T=16.66,AISIN:REFER 35-01
35324CSPROCKET, TRANSMISSION OIL PUMP DRIVE
AISIN:REFER 35-01
35330FSTRAINER ASSY, OIL
TMMWV:REFER 35-01
AISIN:REFER 35-01
35354WASHER, OIL PUMP SPROCKET THRUST, FRONT
35355WASHER, OIL PUMP SPROCKET THRUST, REAR
35370SHAFT ASSY, STATOR
TMMWV:REFER 35-01
AISIN:REFER 35-01
35617RING, CLUTCH DRUM OIL SEAL
35617FRING, CLUTCH DRUM OIL SEAL
35781CCHAIN, TRANSMISSION DRIVE
TMMWV:REFER 35-01
AISIN:REFER 35-01
82125TWIRE, TRANSMISSION
9008010238
main90080-10238
9008010246
main90080-10246
9010506202
main90105-06202
90105A0128
main90105-A0128
90105A0198
main90105-A0198
9014960067
main90149-60067
90159A0065
main90159-A0065
9025309004
main90253-09004
9025309005
main90253-09005
9151180614
main91511-80614
9155110840
main91551-10840
9155180830
main91551-80830
35 parts on this diagram · 1 diagram in section
