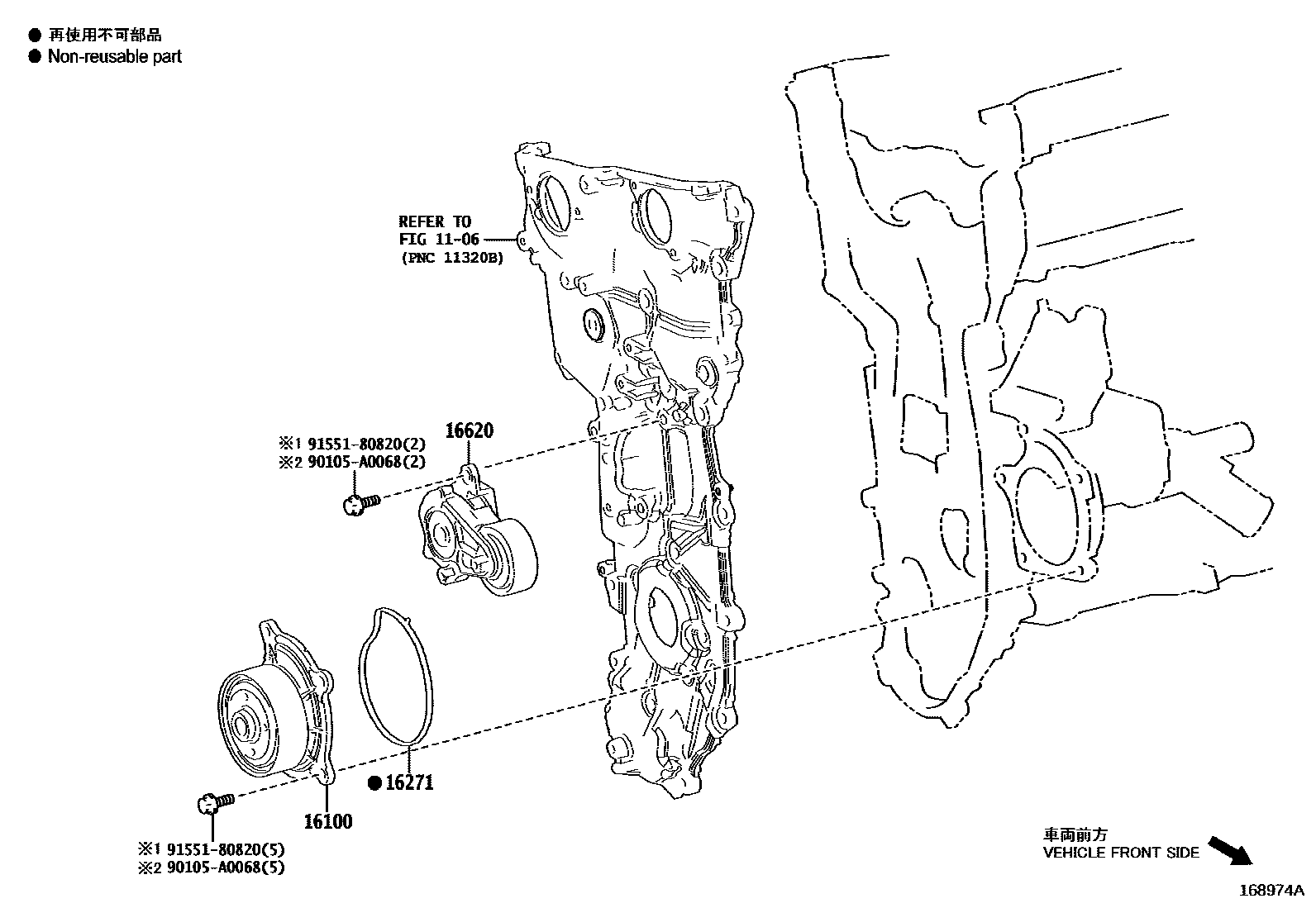

WATER PUMP

1106

16100PUMP ASSY, ENGINE WATER

main16100-25030iT24AFTS..TASA1#202306

(J)

main16100-25040iT24AFTS..TASH15202306

main16100-F0010iT24AFTS..TASA1#202306

(L)

16271GASKET, WATER PUMP

main16271-25020iT24AFTS..TASA1#202306

main16271-25030iT24AFTS..TASH15202306

16620TENSIONER ASSY, V-RIBBED BELT

main16620-25030iT24AFTS..TASH15202306

main16620-25050iT24AFTS..TASA1#202306

(J)

main16620-F0040iT24AFTS..TASA1#202306

(L)

90105A0068

main90105-A0068

9155180820

main91551-80820

6 parts on this diagram · 1 diagram in section
