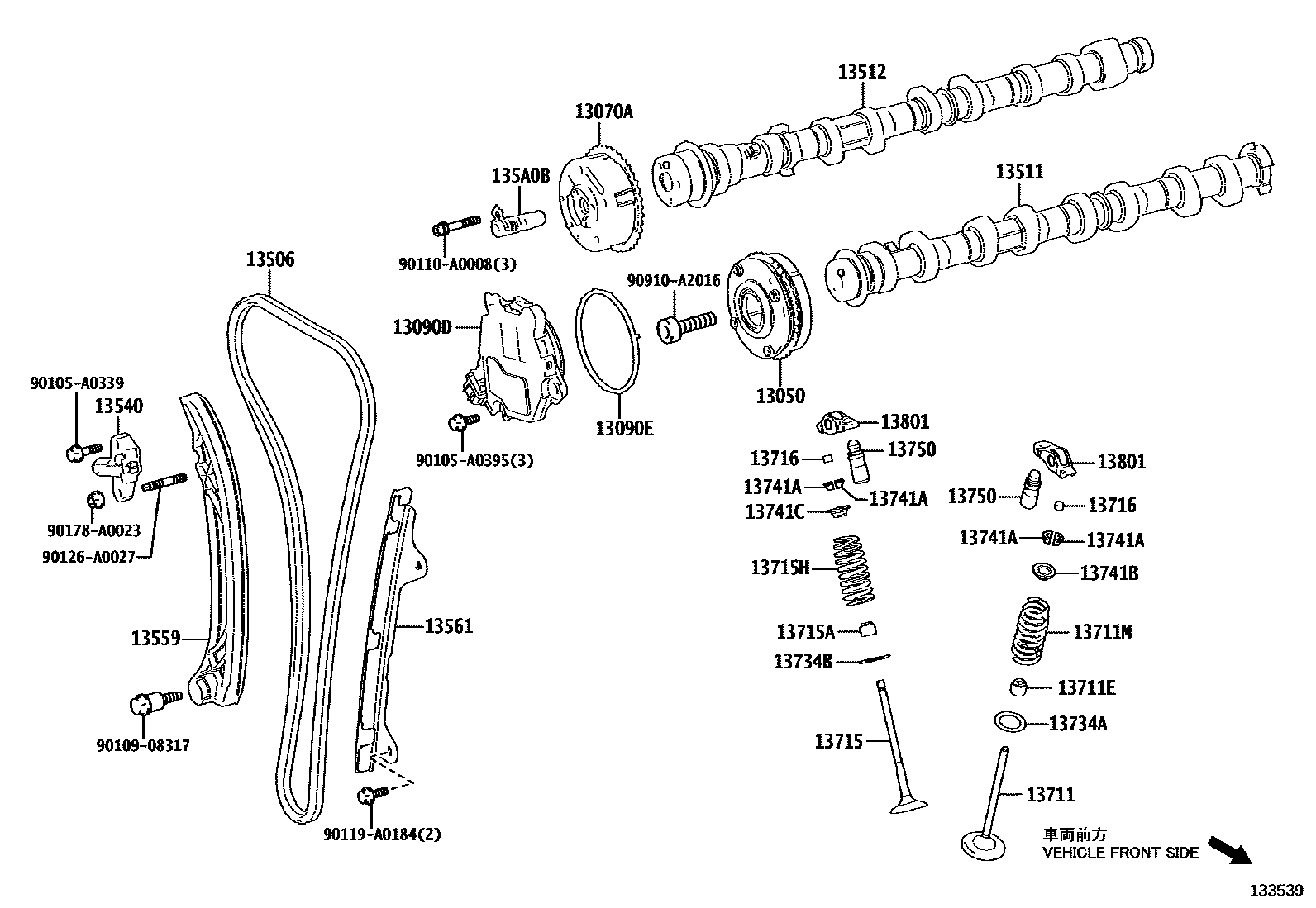

CAMSHAFT & VALVE
13050GEAR ASSY, CAMSHAFT TIMING
(J)
(L)
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
(J)
(L)
13090DMOTOR ASSY, CAM TIMING CONTROL W/EDU
13090ERING, O(FOR CAM TIMING CONTROL MOTOR)
13506CHAIN SUB-ASSY
(J)
(L)
13511CAMSHAFT
13512CAMSHAFT, NO.2
13540TENSIONER ASSY, CHAIN, NO.1
(J)
(L)
13559SLIPPER, CHAIN TENSIONER
(L)
13561DAMPER, CHAIN VIBRATION, NO.1
(J)
(L)
135A0BOLT ASSY, CAMSHAFT TIMING GEAR, CENTER(FOR INTAKE)
(J)
(L)
135A0BVALVE ASSY, CAMSHAFT TIMING
13711VALVE, INTAKE
(J)
(L)
13711ESEAL, INTAKE VALVE STEM OIL
(J)
(L)
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
(J)
(L)
13715VALVE, EXHAUST
(J)
(L)
(L)
13715ASEAL, EXHAUST VALVE STEM OIL
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
(J)
(L)
13716CAP, VALVE STEM
(J)
(L)
13734ASEAT, INTAKE VALVE SPRING
(L)
(J)
13734BSEAT, EXHAUST VALVE SPRING
(L)
(J)
13741ALOCK, VALVE SPRING RETAINER
(J)
(L)
13741BRETAINER, INTAKE VALVE SPRING
(L)
(J)
13741CRETAINER, EXHAUST VALVE SPRING
(L)
(J)
13750ADJUSTER ASSY, VALVE LASH
(J)
(L)
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
(J)
(L)
90105A0339
main90105-A0339
90105A0395
main90105-A0395
9010908317
main90109-08317
90110A0008
main90110-A0008
90119A0184
main90119-A0184
90126A0027
main90126-A0027
90178A0023
main90178-A0023
90910A2016
main90910-A2016
34 parts on this diagram · 2 diagrams in section
