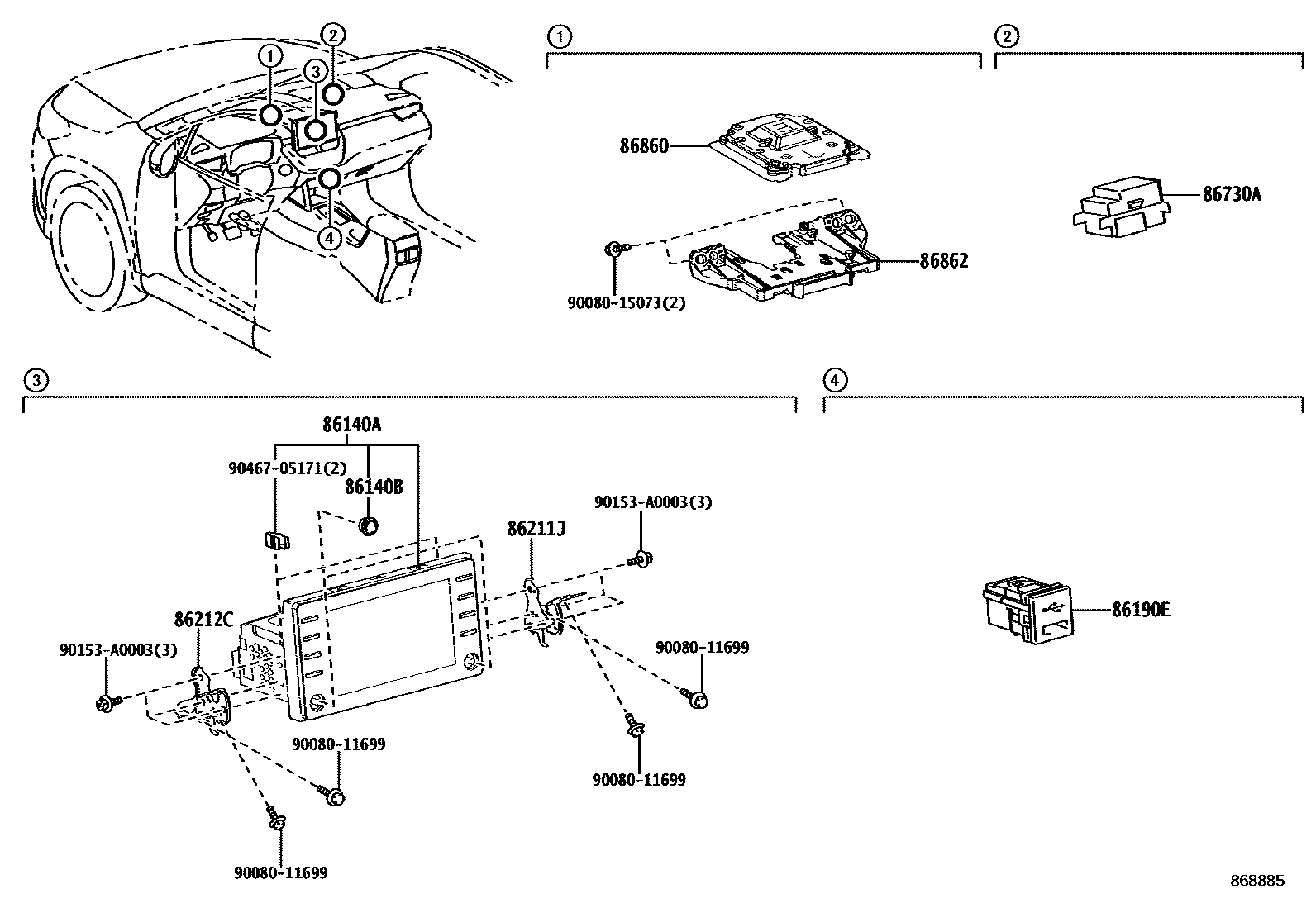

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-0A280iMXGA1#202211-202302

PANASONIC

main86140-0A281iMXGA1#,MXGH15202302-202412

PANASONIC

main86140-0A060iMXGA1#..L202109-202211

PIONEER,HAWAII SPEC&AUDIO-7INCH 6SPEAKER

main86140-0A120iMXGA10..LE202109-202211

PIONEER,USA POSSESSION SPEC&AUDIO-8INCH 6SPEAKER

main86140-0A150iMXGA10..LE;MXGA15..LE,XLE202109-202211

DENSO TEN,CANADA SPEC&AUDIO-8INCH 6SPEAKER

main86140-0A160iMXGA1#..LE,XLE202109-202211

DENSO TEN,AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER

main86140-0A170iMXGA10..LE;MXGA15..LE,XLE202109-202211

DENSO TEN,CANADA SPEC&AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER

main86140-0A290iMXGA1#..LE,XLE202211-202302

PANASONIC,AUDIO-ENTRY 8INCH & JBL & 9SPEAKER

main86140-0A291iMXGA1#,MXGH15..LE,SE,XLE,XSE202412

PANASONIC,AUDIO-ENTRY 8INCH & JBL 9SPEAKER

main86140-0A310iMXGA15;MXGA10..L,LE202211-202302

PANASONIC,CANADA SPEC

main86140-0A311iMXGA15;MXGA10..L,LE;MXGH15..SE,XSE202412

PANASONIC,CANADA SPEC

main86140-0A320iMXGA10..LE;MXGA15..LE,XLE202211-202302

PANASONIC,CANADA SPEC&AUDIO-ENTRY 8INCH & JBL & 9SPEAKER

main86140-0A321iMXGA10..LE;MXGA15..LE,XLE;MXGH15..SE,XSE202302-202412

PANASONIC,CANADA SPEC&AUDIO-ENTRY 8INCH & JBL & 9SPEAKER

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

main90010-22138iMXGA1#..L202109-202211

main90011-25350iMXGA1#,MXGH15202211-202412

main90011-23045iMXGA1#..LE,XLE202109-202211

CANADA SPEC&AUDIO-8INCH 6SPEAKER

86190EADAPTER ASSY, STEREO JACK

main86190-02130iMXGA1#,MXGH15202211-202412

main86190-52070iMXGA1#202109-202211

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-02540iMXGA1#,MXGH15202109-202412

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-02540iMXGA1#,MXGH15202109-202412

86730AMICROPHONE ASSY, TELEPHONE

main86730-0C020iMXGA1#,MXGH15202211-202412

main86730-45030iMXGA1#202109-202211

86860ANTENNA ASSY, NAVIGATION

main86880-0A010iMXGA1#,MXGH15202211-202412

main86880-0E010iMXGA10..LE;MXGA15..LE,XLE202109-202211

CANADA SPEC&AUDIO-8INCH 6SPEAKER

main86860-0E070iMXGA1#;MXGH15..LE202412

MEXICO SPEC

86862BRACKET, NAVIGATION ANTENNA

main86862-42010iMXGA1#,MXGH15202211-202412

main86862-42010iMXGA10..LE;MXGA15..LE,XLE202109-202211

CANADA SPEC&AUDIO-8INCH 6SPEAKER

9008011699

main90080-11699

9008015073

main90080-15073

90153A0003

main90153-A0003

9046705171

main90467-05171

12 parts on this diagram · 2 diagrams in section
