ELECTRONIC FUEL INJECTION SYSTEM
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
(L)
(J)
89448DSENSOR, OIL PRESSURE & TEMPERATURE
89458SENSOR, FUEL PRESSURE
89458HSENSOR, FUEL PRESSURE, NO.2
(L)
(J)
89571COMPUTER, FUEL PUMP CONTROL
(L)
(J)
89573BRACKET, FUEL PUMP CONTROL COMPUTER
89661COMPUTER, ENGINE CONTROL
DENSO,*614
DENSO,*614
DENSO,*614
DENSO,*614
DENSO,*614
DENSO,*614
DENSO,*614
DENSO,*614
DENSO,*614
DENSO,*614
DENSO,*614
DENSO,*614
DENSO,*614
DENSO,*614
DENSO,*614
89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
9008017244
main90080-17244
9011906958
main90119-06958
9011906A12
main90119-06A12
90119A0416
main90119-A0416
9015350015
main90153-50015
90153A0003
main90153-A0003
90178A0023
main90178-A0023
9017906274
main90179-06274
9415180600
main94151-80600

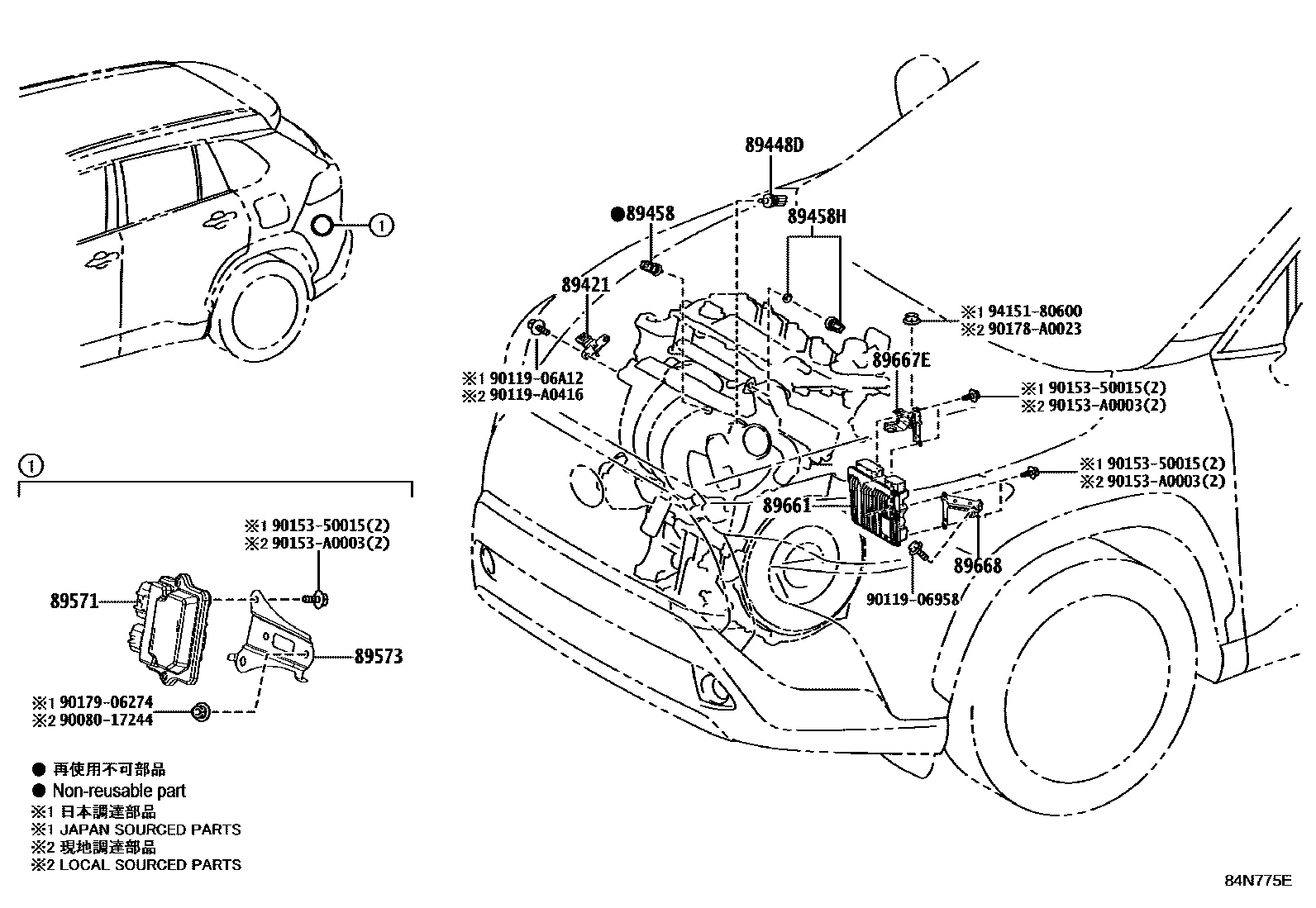

18 parts on this diagram · 2 diagrams in section
