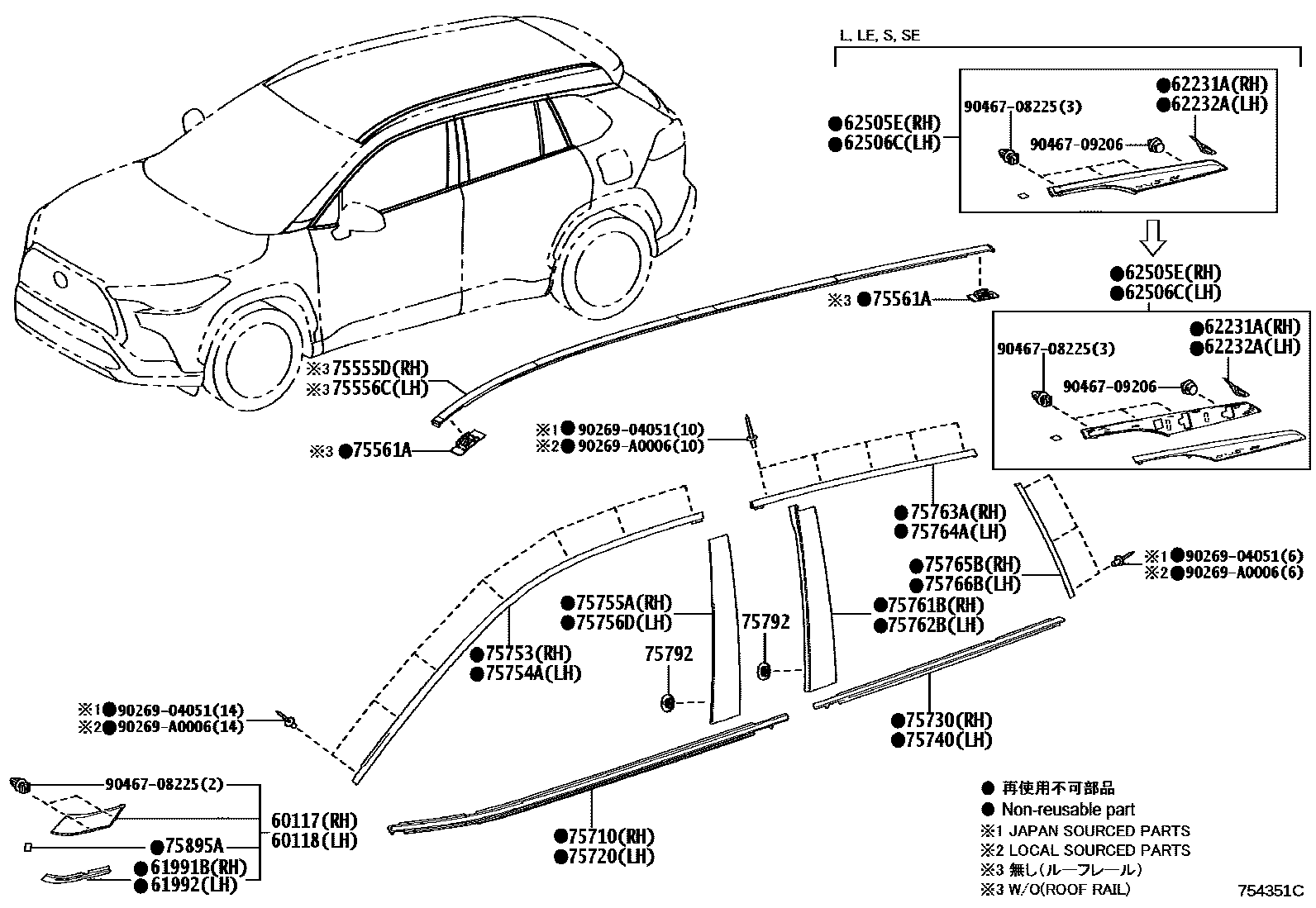

SIDE MOULDING

0001 1 0002 1

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-0A040iMXGA1#,MXGH15202412

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-0A040iMXGA1#,MXGH15202412

61991BPROTECTOR, FRONT PILLAR COVER, RH

main61991-0A040iMXGA1#,MXGH15202412

61992PROTECTOR, FRONT PILLAR COVER, LH

main61992-0A040iMXGA1#,MXGH15202412

62231APAD, QUARTER PILLAR, RH

main62523-0A070iMXGA1#,MXGH15..XLE,XSE202211-202412

main62523-0A080iMXGA1#,MXGH15..L,LE,S,SE202211-202412

62232APAD, QUARTER PILLAR, LH

main62524-0A070iMXGA1#,MXGH15..XLE,XSE202211-202412

main62524-0A080iMXGA1#,MXGH15..L,LE,S,SE202211-202412

62505ECOVER SUB-ASSY, QUARTER PILLAR, RH

main62505-0A070iMXGA1#,MXGH15..XLE,XSE202211-202412

PLATED

main62505-0A080iMXGA1#,MXGH15..L,LE,S,SE202412

PLATED

62506CCOVER SUB-ASSY, QUARTER PILLAR, LH

main62506-0A070iMXGA1#,MXGH15..XLE,XSE202211-202412

PLATED

main62506-0A080iMXGA1#..L,LE202109-202211

PLATED

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-0A050iMXGA1#..LE202109-202211

ROOF RAIL-WITHOUT

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-0A050iMXGA1#..LE202109-202211

ROOF RAIL-WITHOUT

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-0A070iMXGA1#,MXGH15..L,S202412

ROOF RAIL-WITHOUT

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-0A060iMXGA1#,MXGH15202412

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-0A060iMXGA1#,MXGH15202412

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-0A060iMXGA1#,MXGH15202412

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-0A060iMXGA1#,MXGH15202412

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-0A070iMXGA1#,MXGH15..L,LE,S,SE202412

NO PAINT REQ.

main75753-0A080iMXGA1#,MXGH15..XLE,XSE202211-202412

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-0A070iMXGA1#,MXGH15..L,LE,S,SE202412

NO PAINT REQ.

main75754-0A080iMXGA1#..XLE202109-202211

75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75755-0A040iMXGA1#,MXGH15202412

75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75756-0A040iMXGA1#,MXGH15202412

75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75761-0A040iMXGA1#202109-202211

75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75762-0A040iMXGA1#,MXGH15202211-202412

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-0A070iMXGA1#,MXGH15..L,LE,S,SE202211-202412

main75763-0A080iMXGA1#,MXGH15..XLE,XSE202211-202412

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-0A070iMXGA1#,MXGH15..L,LE,S,SE202211-202412

main75764-0A080iMXGA1#..XLE202109-202211

75765BMOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE)

main75765-0A040iMXGA1#,MXGH15202412

75766BMOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE)

main75766-0A040iMXGA1#,MXGH15202412

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-0R010×4iMXGA1#,MXGH15202412

75895ATAPE, MOULDING, NO.1

main75895-0A040×2iMXGA1#,MXGH15202412

9026904051

main90269-04051

90269A0006

main90269-A0006

9046708225

main90467-08225

9046709206

main90467-09206

31 parts on this diagram · 2 diagrams in section
