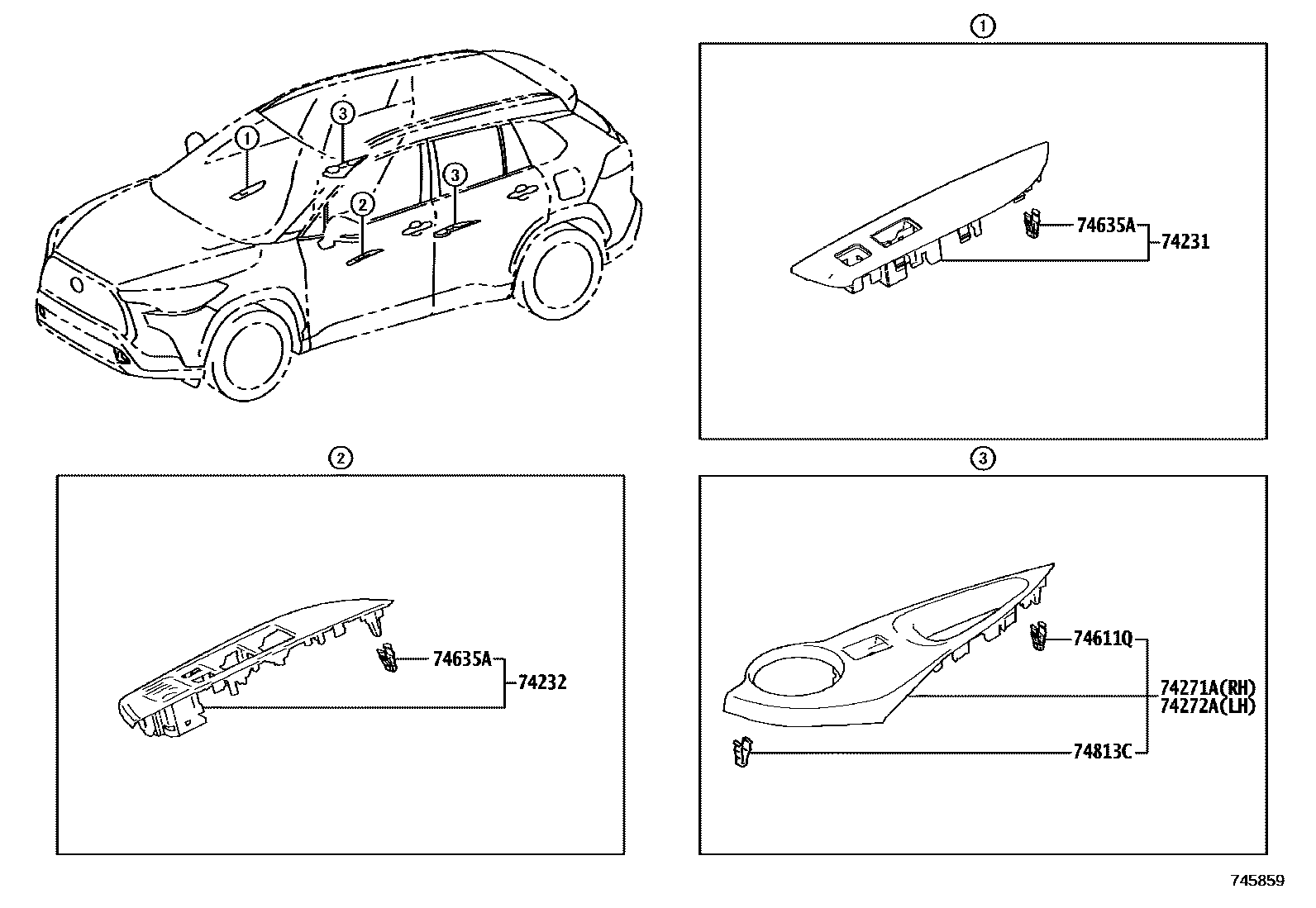

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-02D80iMXGA1#202109-202412

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-02B10iMXGA1#,MXGH15202109-202412

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-0A040iMXGA1#,MXGH15202109-202412

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-0A040iMXGA1#,MXGH15202109-202412

74611QCLIP

main90467-A0011iMXGA1#,MXGH15202109-202412

74635ACLIP

main90467-10203iMXGA1#,MXGH15¥60202109-202412

74813CCLIP

main90467-12080iMXGA1#¥60202109-202412

7 parts on this diagram · 2 diagrams in section
