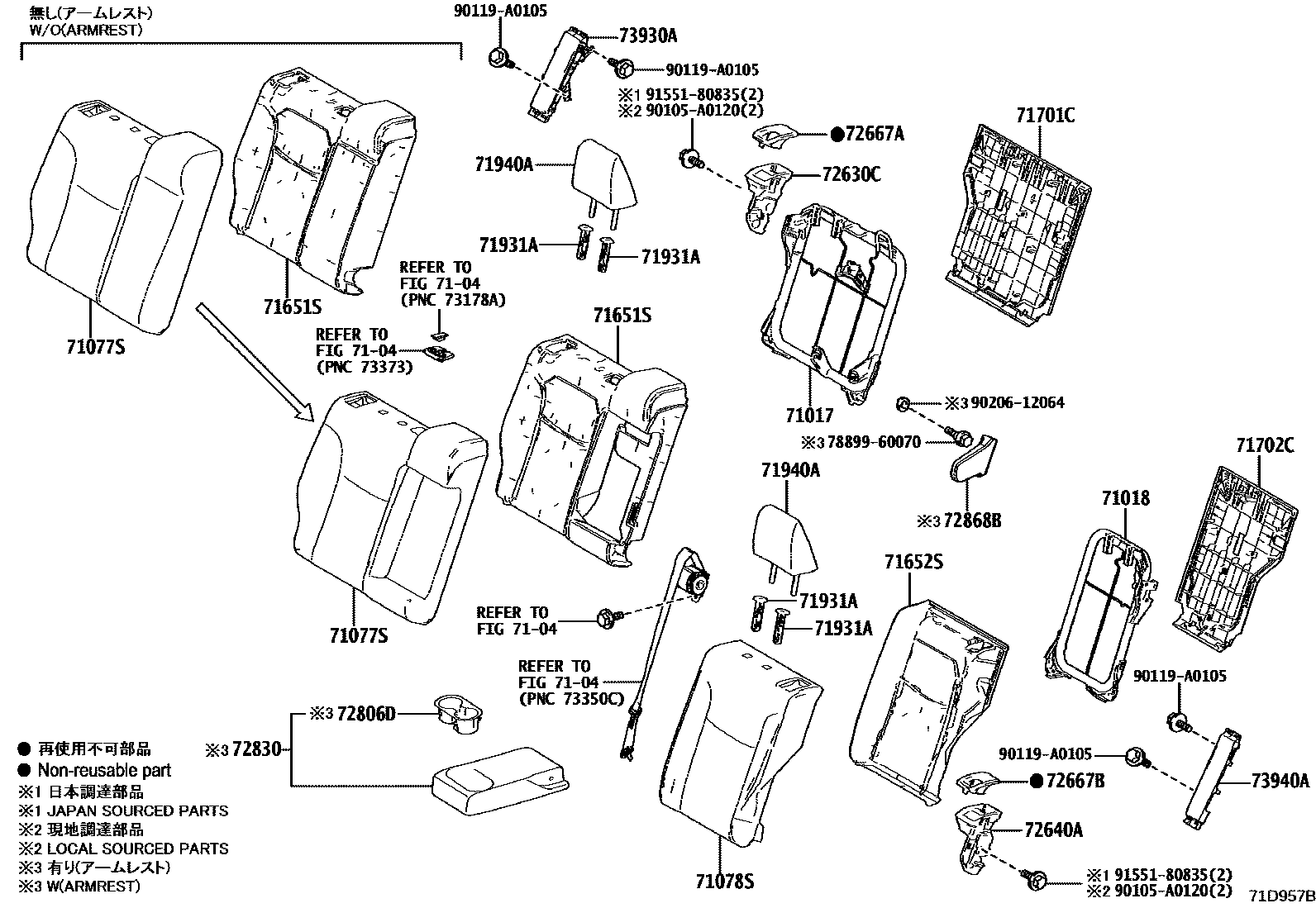

REAR SEAT & SEAT TRACK

0001 1SEAT BACK 0002 1SEAT CUSHION 0003 1SEAT CUSHION 0004 1FITTING PARTS 0005 1FITTING PARTS

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-0A080iMXGA1#,MXGH15..XLE,XSE202109-202412

main71017-0A090iMXGA1#,MXGH15..L,LE,S,SE202109-202412

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-0A040iMXGA1#202109-202412

7104

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-0A240-B1iMXGA1#..L,LE202109-202211

LT. GRAY,TRIM1#

main71077-0A240-B4iMXGA1#,MXGH15..L,LE202211-202412

LT. GRAY,TRIM1#

main71077-0A240-C1iMXGA1#..LE202109-202211

BLACK,TRIM2#

main71077-0A240-C4iMXGA1#,MXGH15..L,LE202211-202412

BALCK,TRIM2#

main71077-0A250-C0iMXGA1#..XLE202109-202211

BLACK,TRIM2#

main71077-0A250-C2iMXGA1#,MXGH15..XLE202211-202412

BALCK,TRIM2#

main71077-0A250-E0iMXGA1#..XLE202109-202211

FROMAGE,TRIM0#

main71077-0A250-E2iMXGA1#,MXGH15..XLE202211-202412

FROMAGE,TRIM0#

main71077-0A380-B4iMXGH15..S,SE202305-202412

SE GRAY,TRIM1#

main71077-0A380-C4iMXGH15..S202305-202412

BALCK,TRIM2#

main71077-0A380-C4iMXGH15..SE202311-202412

BALCK,TRIM20

main71077-0A380-C5iMXGH15..SE202311-202412

BLACK/RED,TRIM22

main71077-0A400-C2iMXGH15..XSE202305-202412

BLACK,TRIM20

main71077-0A400-J1iMXGH15..XSE202305-202412

BLACK/BLUE,TRIM21

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-0A080-B1iMXGA1#..L,LE202109-202211

LT. GRAY,TRIM1#

main71078-0A080-B3iMXGA1#,MXGH15..L,LE202211-202412

LT. GRAY,TRIM1#

main71078-0A080-C1iMXGA1#..LE202109-202211

BLACK,TRIM2#

main71078-0A080-C3iMXGA1#,MXGH15..L,LE202211-202412

BALCK,TRIM2#

main71078-0A090-C0iMXGA1#..XLE202109-202211

BLACK,TRIM2#

main71078-0A090-C2iMXGA1#,MXGH15..XLE202211-202412

BALCK,TRIM2#

main71078-0A090-E0iMXGA1#..XLE202109-202211

FROMAGE,TRIM0#

main71078-0A090-E1iMXGA1#,MXGH15..XLE202211-202412

FROMAGE,TRIM0#

main71078-0A210-B3iMXGH15..S,SE202305-202412

SE GRAY,TRIM1#

main71078-0A210-C3iMXGH15..S202305-202412

BALCK,TRIM2#

main71078-0A210-C3iMXGH15..SE202311-202412

BALCK,TRIM20

main71078-0A210-C4iMXGH15..SE202311-202412

BLACK/RED,TRIM22

main71078-0A230-C2iMXGH15..XSE202305-202412

BLACK,TRIM20

main71078-0A230-J1iMXGH15..XSE202305-202412

BLACK/BLUE,TRIM21

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-0A060iMXGA1#,MXGH15..L,LE,S,SE202109-202412

main71651-0A070iMXGA1#,MXGH15..XLE,XSE202109-202412

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-0A040iMXGA1#,MXGH15202109-202412

71701CBOARD SUB-ASSY, REAR SEATBACK, RH

main71701-0A040iMXGA1#,MXGH15202109-202412

71702CBOARD SUB-ASSY, REAR SEATBACK, LH

main71702-0A040iMXGA1#,MXGH15202109-202412

71931ASUPPORT, REAR SEAT HEADREST

main71930-0R070-B2iMXGA1#,MXGH15..L,LE202109-202412

W(LOCK),LT.GRAY,TRIM1#

main71930-0R070-C0iMXGH15..S,SE202109-202412

W(LOCK),BLACK,TRIM2#

main71930-0R070-C0iMXGH15..S,SE202305-202412

W(LOCK),BLACK,TRIM1#,2#

main71930-0R070-E0iMXGA1#,MXGH15..XLE202109-202412

W(LOCK),ORCHID BROWN,TRIM0#

main71931-0R050-B2iMXGA1#,MXGH15..L,LE202109-202412

W/O(LOCK),LT.GRAY,TRIM1#

main71931-0R050-C0iMXGA1#,MXGH15..L,LE,XLE,XSE202109-202412

W/O(LOCK),BLACK,TRIM2#

main71931-0R050-C0iMXGH15..S,SE202305-202412

W/O(LOCK),BLACK,TRIM1#,2#

main71931-0R050-E0iMXGA1#,MXGH15..XLE202109-202412

W/O(LOCK),ORCHID BROWN,TRIM0#

71940AHEADREST ASSY, REAR SEAT

main71940-0A080-B1iMXGA1#..L,LE202109-202412

LT GRAY,TRIM1#

main71940-0A080-B2iMXGH15..S,SE202305-202412

SE GRAY,TRIM1#

main71940-0A080-C1iMXGA1#..LE202109-202412

BLACK,TRIM2#

main71940-0A090-C0iMXGA1#..XLE202109-202412

BLACK,TRIM2#

main71940-0A090-C1iMXGH15..XSE202305-202412

BLACK,TRIM20

main71940-0A090-C2iMXGH15..XSE202305-202412

BLACK,TRIM21

main71940-0A090-E0iMXGA1#..XLE202109-202412

ORCHID BROWN,TRIM0#

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-47050-B6iMXGA1#,MXGH15..L,LE202109-202412

LT.GRAY,TRIM1#

sub72630-47050

main72630-47050-C2iMXGA1#,MXGH15..L,LE,XLE,XSE202109-202412

BLACK,TRIM2#

sub72630-47050

main72630-47050-C2iMXGH15..S,SE202305-202412

BLACK,TRIM1#,2#

sub72630-47050

main72630-47050-E4iMXGA1#,MXGH15..XLE202109-202412

ORCHID BROWN,TRIM0#

sub72630-47050

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-47050-B6iMXGA1#,MXGH15..L,LE202109-202412

LT.GRAY,TRIM1#

sub72640-47050

main72640-47050-C2iMXGH15..S,SE202109-202412

BLACK,TRIM2#

sub72640-47050

main72640-47050-C2iMXGH15..S,SE202305-202412

BLACK,TRIM1#,2#

sub72640-47050

main72640-47050-E4iMXGA1#,MXGH15..XLE202109-202412

ORCHID BROWN,TRIM0#

sub72640-47050

72667ABEZEL, REAR SEATBACK LOCK, UPPER RH

main72667-0A070-B0iMXGA1#,MXGH15..L,LE202109-202412

LT.GRAY,TRIM1#

main72667-0A070-C0iMXGA1#,MXGH15..L,LE,XLE,XSE202109-202412

BLACK,TRIM2#

main72667-0A070-C0iMXGH15..S,SE202305-202412

BLACK,TRIM1#,2#

main72667-0A070-E0iMXGA1#,MXGH15..XLE202109-202412

ORCHID BROWN,TRIM0#

72667BBEZEL, REAR SEATBACK LOCK, UPPER LH

main72667-0A070-B0iMXGA1#..L,LE202109-202412

LT.GRAY,TRIM1#

main72667-0A070-C0iMXGH15..S,SE202109-202412

BLACK,TRIM2#

main72667-0A070-C0iMXGA1#,MXGH15..L,LE,XLE,XSE202305-202412

BLACK,TRIM1#,2#

main72667-0A070-E0iMXGA1#,MXGH15..XLE202109-202412

ORCHID BROWN,TRIM0#

72806DHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-0A040-A0iMXGA1#,MXGH15..XLE202109-202412

FROMAGE,TRIM0#

main72806-0A040-C0iMXGA1#,MXGH15..XLE,XSE202109-202412

BLACK,TRIM2#

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-0A080-A0iMXGA1#,MXGH15..XLE202109-202412

FROMAGE,TRIM0#

main72830-0A080-C0iMXGA1#..XLE202109-202412

BLACK,TRIM2#

72868BCOVER, CENTER ARMREST HINGE

main72868-0A040-A0iMXGA1#,MXGH15..XLE202109-202412

FROMAGE,TRIM0#

main72868-0A040-C0iMXGA1#..XLE202109-202412

BLACK,TRIM2#

73930AAIRBAG ASSY, REAR SEAT, RH

main73930-0A020iMXGA1#,MXGH15202109-202412

73940AAIRBAG ASSY, REAR SEAT, LH

main73940-0A020iMXGA1#,MXGH15202109-202412

7889960070BOLT, FRONT SEAT

main78899-60070

90105A0120

main90105-A0120

90119A0105

main90119-A0105

9020612064

main90206-12064

9155180835

main91551-80835

25 parts on this diagram · 5 diagrams in section
