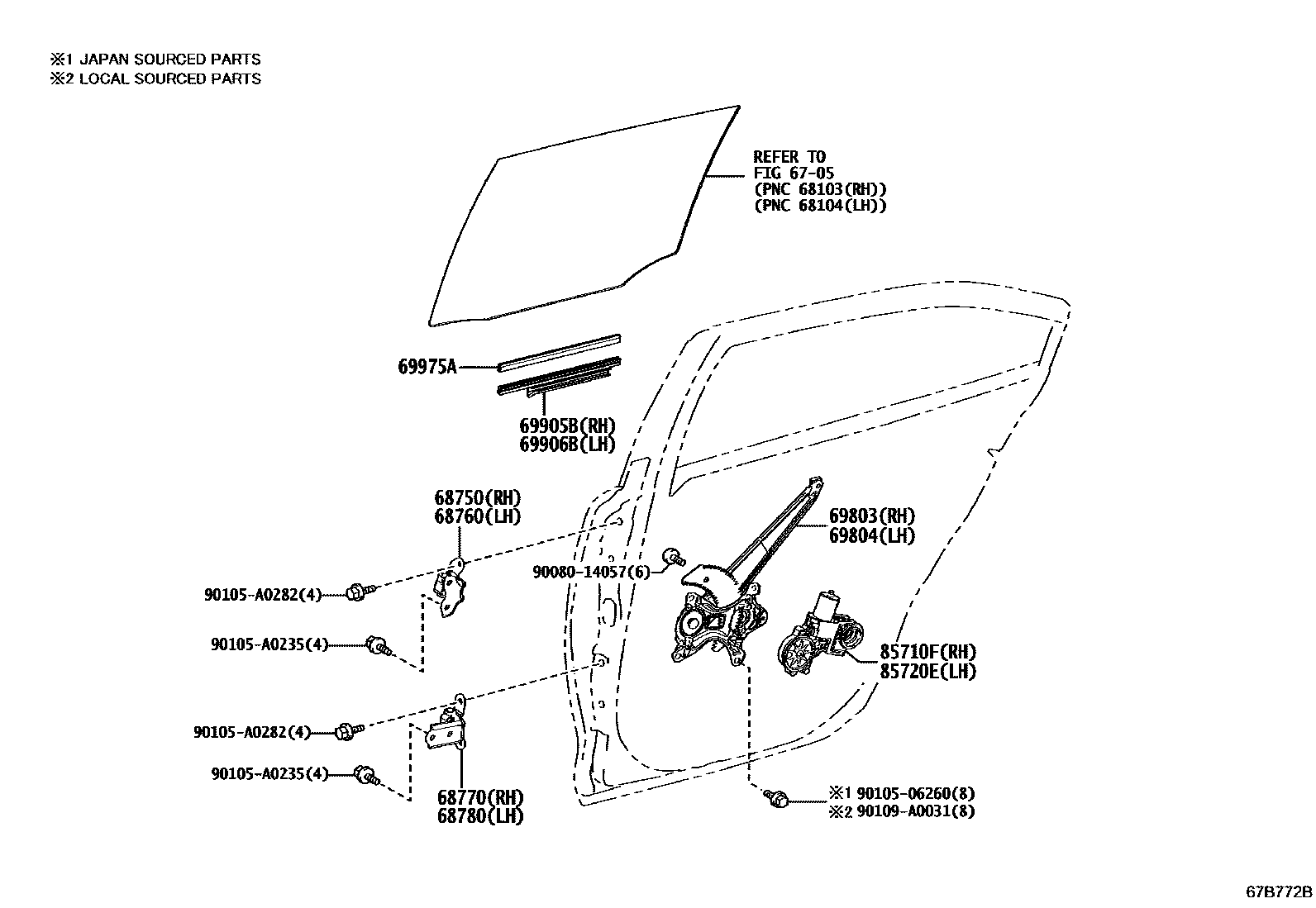

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-06010iMXGA1#,MXGH15202412

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-06010iMXGA1#,MXGH15202412

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-02050iMXGA1#,MXGH15202412

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-02050iMXGA1#,MXGH15202412

sub68780-52030

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0A020iMXGA1#,MXGH15202412

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0A020iMXGA1#,MXGH15202412

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-0R030iMXGA1#,MXGH15202412

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-0R030iMXGA1#202109-202211

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-0R020iMXGA1#,MXGH15202211-202412

RH

main69975-0R030iMXGA1#202109-202211

LH

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-0A150iMXGA1#202109-202211

main85720-0A190iMXGA1#,MXGH15202412

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-0A160iMXGA1#202109-202211

main85710-0A200iMXGA1#,MXGH15202412

9008014057

main90080-14057

9010506260

main90105-06260

90105A0235

main90105-A0235

90105A0282

main90105-A0282

90109A0031

main90109-A0031

17 parts on this diagram · 1 diagram in section
