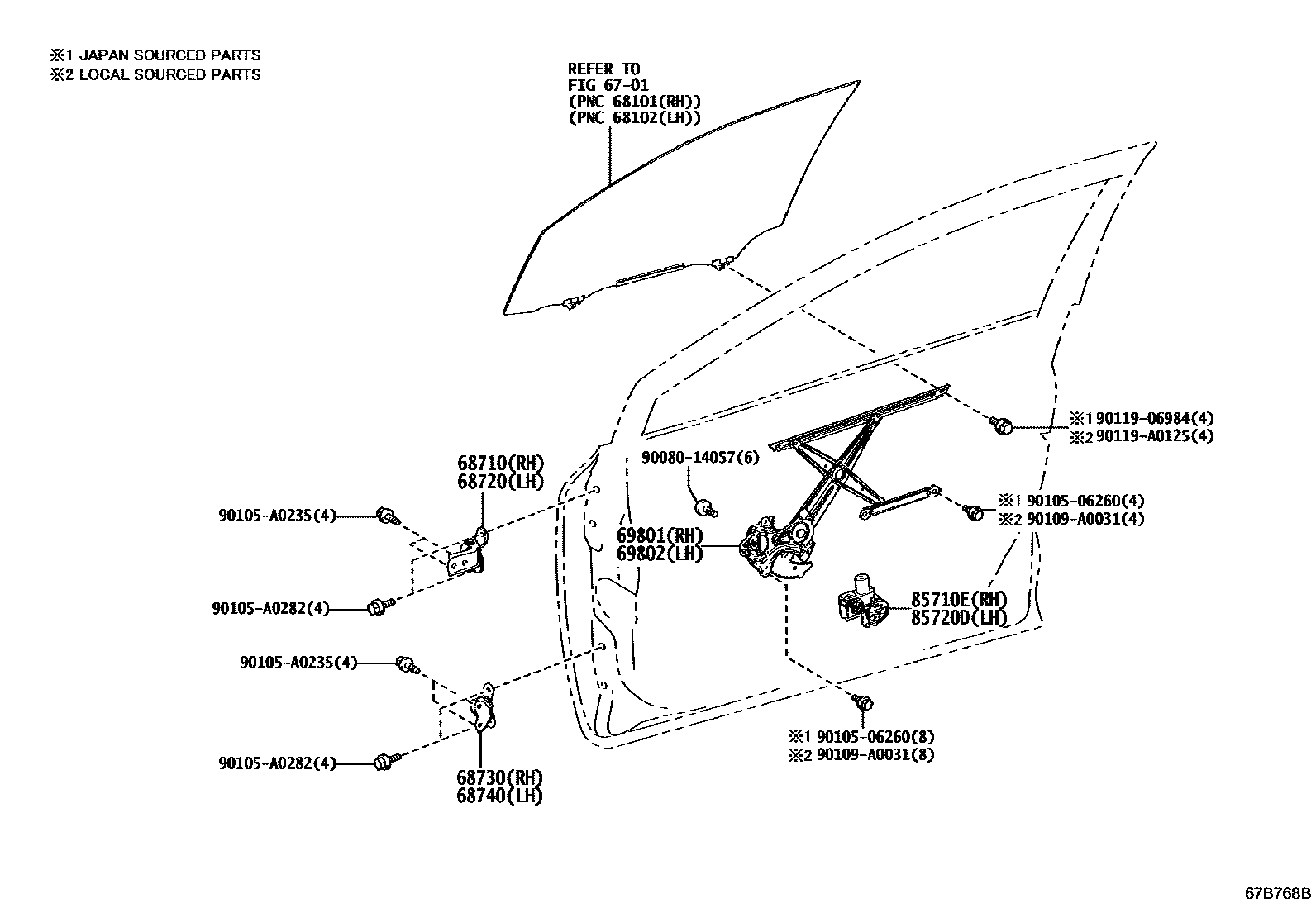

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02020iMXGA1#,MXGH15202109-202412

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02020iMXGA1#,MXGH15202109-202412

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02080iMXGA1#,MXGH15202109-202412

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02080iMXGA1#,MXGH15202109-202412

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-06190iMXGA1#,MXGH15202109-202412

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-06190iMXGA1#,MXGH15202109-202412

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0A100iMXGA1#202109-202211

main85710-0A190iMXGA1#,MXGH15202211-202412

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0A090iMXGA1#202109-202211

main85720-0A180iMXGA1#,MXGH15202211-202412

9008014057

main90080-14057

9010506260

main90105-06260

90105A0235

main90105-A0235

90105A0282

main90105-A0282

90109A0031

main90109-A0031

9011906984

main90119-06984

90119A0125

main90119-A0125

16 parts on this diagram · 1 diagram in section
