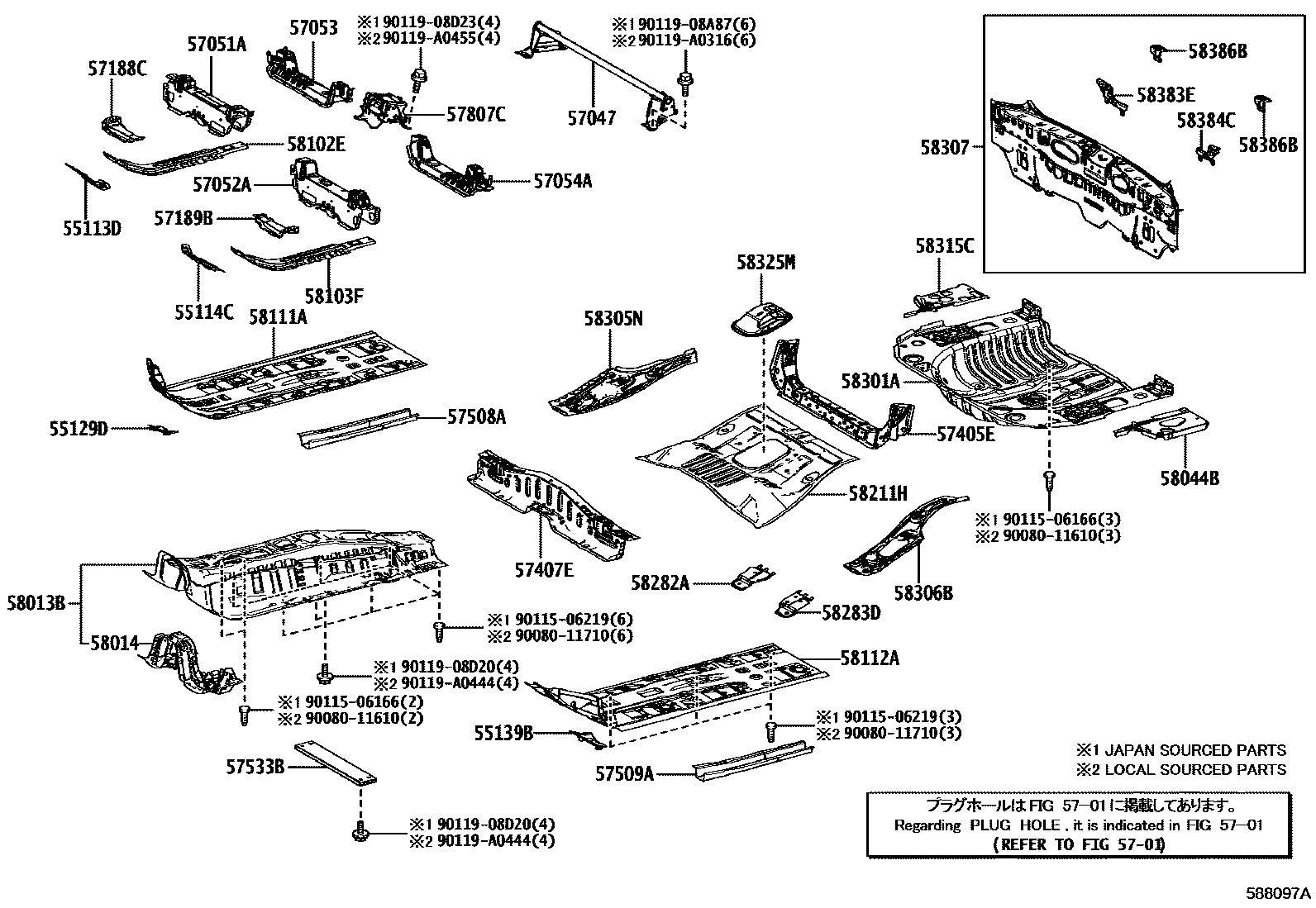

FLOOR PAN & LOWER BACK PANEL
55114CPANEL, DASH, LOWER LH
55129DCOVER, DASH PANEL HOLE, RH
55139BCOVER, DASH PANEL HOLE, LH
5701
57047GUSSET SUB-ASSY, CENTER FLOOR CROSSMEMBER
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57188CREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH
57189BREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH
57405EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2
57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57533BBRACE, FRONT FLOOR, CENTER
57807CREINFORCE SUB-ASSY, REAR FLOOR SIDE MEMBER, FRONT NO.2 RH
58013BPANEL SUB-ASSY, FRONT FLOOR, CENTER
58014PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER
58044BPANEL SUB-ASSY, FLOOR SIDE, REAR LH
58102EREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
58103FREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
58112APANEL, FRONT FLOOR, LH
58211HPAN, CENTER FLOOR
58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH
58301APANEL SUB-ASSY, REAR FLOOR
58305NEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH
58306BEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58315CEXTENSION, REAR FLOOR SIDE PANEL, RH
58325MCOVER, REAR FLOOR SERVICE HOLE, NO.1
58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH
58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH
58386BBRACKET, REAR BUMPER COVER, NO.2
9008011610
main90080-11610
9008011710
main90080-11710
9011506166
main90115-06166
9011506219
main90115-06219
9011908A87
main90119-08A87
9011908D20
main90119-08D20
9011908D23
main90119-08D23
90119A0316
main90119-A0316
90119A0444
main90119-A0444
90119A0455
main90119-A0455
47 parts on this diagram · 3 diagrams in section
