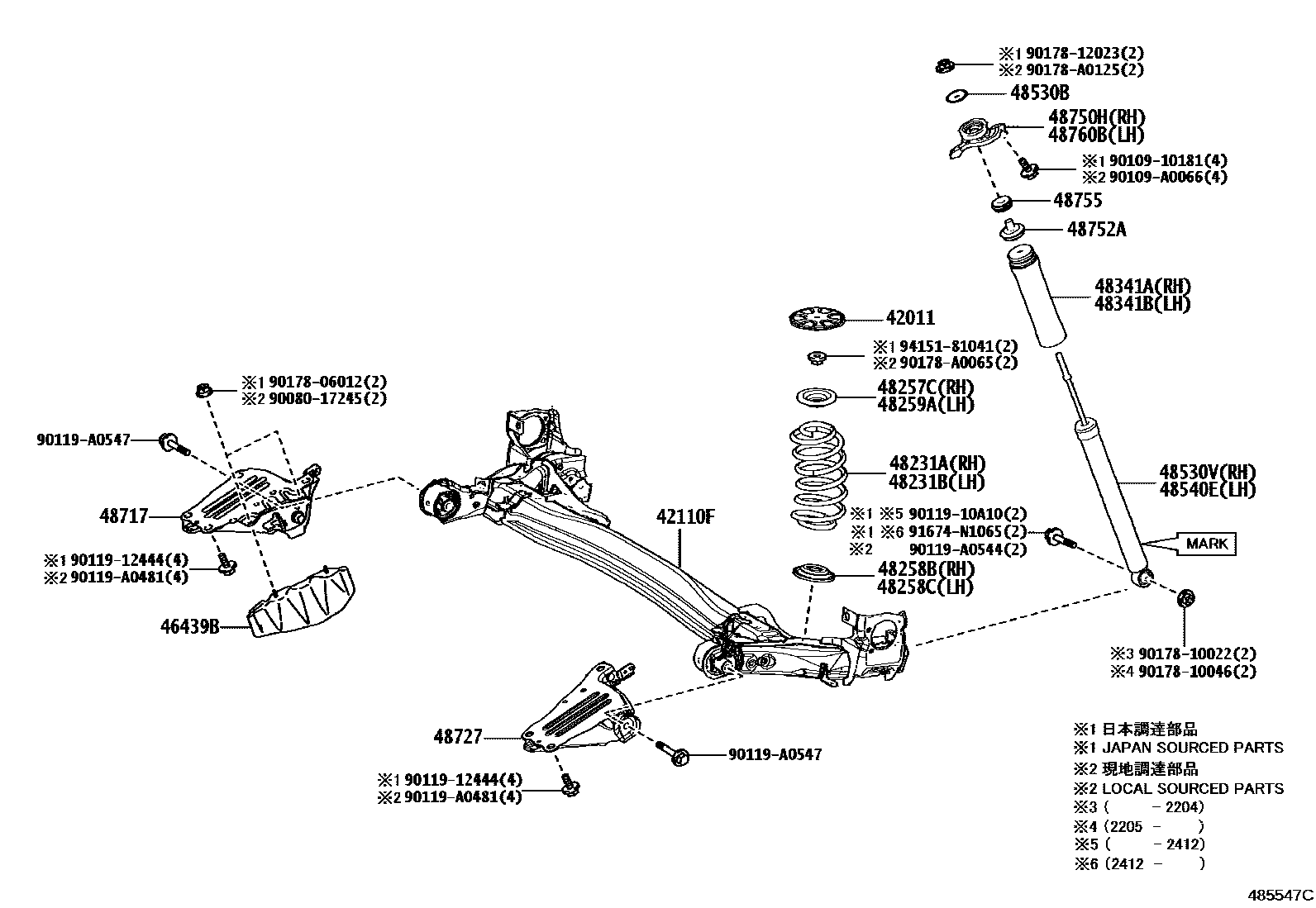

REAR SPRING & SHOCK ABSORBER
42011SEAT SUB-ASSY, REAR SPRING
42110FBEAM ASSY, REAR AXLE
46439BINSULATOR, PARKING BRAKE CABLE HEAT
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530VABSORBER SET, SHOCK, REAR RH
MARK 48530-0A100
MARK 48530-0A110
MARK 48530-0A340
MARK 48530-0A350
MARK 48530-0A270
MARK 48530-0A280
48540EABSORBER SET, SHOCK, REAR LH
MARK 48530-0A100
MARK 48530-0A110
MARK 48530-0A340
MARK 48530-0A350
MARK 48530-0A270
MARK 48530-0A280
48717BRACKET, REAR SUSPENSION ARM, RH
48727BRACKET, REAR SUSPENSION ARM, LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48752ASTOPPER, REAR SUSPENSION SUPPORT
48760BSUPPORT ASSY REAR SUSPENSION, LH
9008017245
main90080-17245
9010910181
main90109-10181
90109A0066
main90109-A0066
9011910A10
main90119-10A10
9011912444
main90119-12444
90119A0481
main90119-A0481
90119A0544
main90119-A0544
90119A0547
main90119-A0547
9017806012
main90178-06012
9017810022
main90178-10022
9017810046
main90178-10046
9017812023
main90178-12023
90178A0065
main90178-A0065
90178A0125
main90178-A0125
91674N1065
main91674-N1065
9415181041
main94151-81041
36 parts on this diagram · 2 diagrams in section
