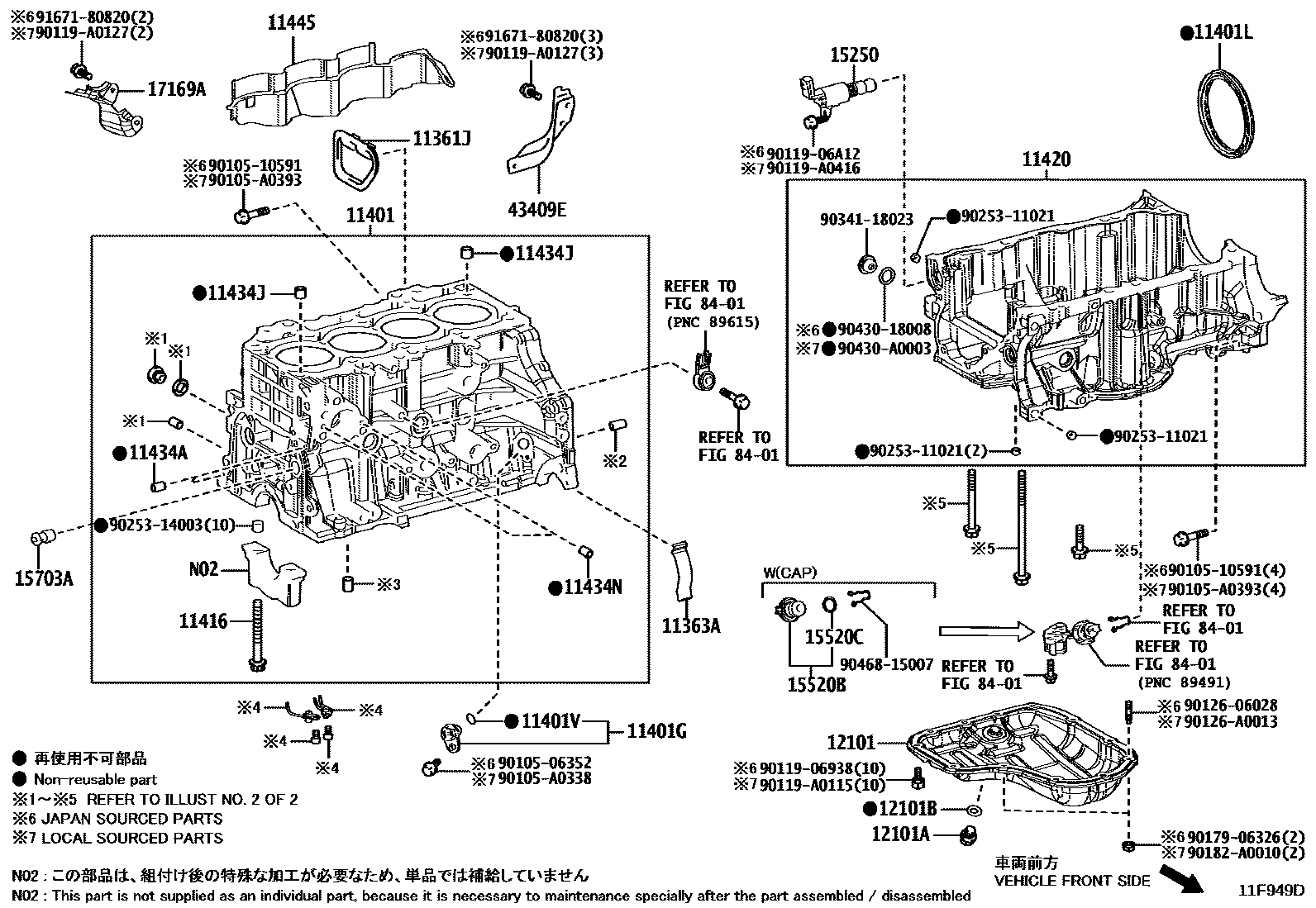

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11363ACOVER, FLYWHEEL HOUSING SIDE
11401BLOCK SUB-ASSY, CYLINDER
(J)
(L)
*502
*704
*502
11401GSENSOR, CRANK POSITION
*502
*704
*704
11401LSEAL, ENGINE REAR OIL
(J),*704
*502
(J)
(L)
(L),*704
11401VO-RING, CRANK POSITION SENSOR
*704,*502
*502
*704
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
*502
(J),*704
(J)
*704
(L),*704
(L)
11420CRANKCASE ASSY, STIFFENING
(J),*704
(J)
(L),*704
(L)
*502
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=14,OD=6,(J),*704
L=14,OD=6,*502
L=14,OD=6,(J)
L=14,OD=6,(L),*704
L=14,OD=6,(L)
11434JPIN, RING (FOR CYLINDER HEAD SET)
*704
*502
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
(J),*704
*502
(J)
(L),*704
(L)
11445SPACER, CYLINDER BLOCK WATER JACKET
(J),*704
*502
(J)
(L),*704
(L)
12101PAN SUB-ASSY, OIL
(J),*704
(J)
(L),*704
(L)
*502
12101APLUG(FOR OIL PAN DRAIN)
*502
(J),*704
(J)
(L),*704
(L)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
*502
(J),*704
(J)
(L),*704
(L)
15250VALVE ASSY, OIL PRESSURE CONTROL
*502
(J),*704
*704
(L),*704
15520BCAP ASSY, CRANKCASE
(J),*704,*502
(L),*704
15520CRING, O (FOR CRANKCASE CAP)
*704,*502
15703AVALVE SUB-ASSY, OIL NOZZLE
*704
*502
17169AINSULATOR, EXHAUST MANIFOLD HEAT, NO.3
(J),*502
(J),*704
*704
(L),*502
(L),*704
43409EINSULATOR SUB-ASSY, DRIVE SHAFT HEAT
8401
9010506352
main90105-06352
9010510591
main90105-10591
90105A0338
main90105-A0338
90105A0393
main90105-A0393
9011906938
main90119-06938
9011906A12
main90119-06A12
90119A0115
main90119-A0115
90119A0127
main90119-A0127
90119A0416
main90119-A0416
9012606028
main90126-06028
90126A0013
main90126-A0013
9017906326
main90179-06326
90182A0010
main90182-A0010
9025311021
main90253-11021
9025314003
main90253-14003
9034118023
main90341-18023
9043018008
main90430-18008
90430A0003
main90430-A0003
9046815007
main90468-15007
9167180820
main91671-80820
42 parts on this diagram · 3 diagrams in section
