HEADLAMP CLEANER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
COLD AREA SPEC
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
HEADLAMP-TRINOCULAR FULL LED
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
COLD AREA SPEC
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
HEADLAMP-TRINOCULAR FULL LED
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
85271HOSE, HEADLAMP CLEANER, NO.1
L=180,COLD AREA SPEC
L=180,COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED
L=180,COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
L=180,HEADLAMP-TRINOCULAR FULL LED
L=180,HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
85271AHOSE, HEADLAMP CLEANER, NO.2
L=65,COLD AREA SPEC
L=65,COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED
L=65,COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
L=65,HEADLAMP-TRINOCULAR FULL LED
L=65,HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
85271BHOSE, HEADLAMP CLEANER, NO.3
L=100,COLD AREA SPEC
L=100,COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED
L=100,COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
L=100,HEADLAMP-TRINOCULAR FULL LED
L=100,HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
85271CHOSE, HEADLAMP CLEANER, NO.4
L=140,COLD AREA SPEC
L=140,COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED
L=140,COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
L=140,HEADLAMP-TRINOCULAR FULL LED
L=140,HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
85271DHOSE, HEADLAMP CLEANER, NO.5
L=1780,COLD AREA SPEC
L=1780,COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED
L=1780,COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
L=1780,HEADLAMP-TRINOCULAR FULL LED
L=1780,HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
85272ACLAMP, HEADLAMP CLEANER, NO.1
COLD AREA SPEC
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
HEADLAMP-TRINOCULAR FULL LED
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
85272BCLAMP, HEADLAMP CLEANER, NO.2
COLD AREA SPEC
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
HEADLAMP-TRINOCULAR FULL LED
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
85272CCLAMP, HEADLAMP CLEANER, NO.3
COLD AREA SPEC
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
HEADLAMP-TRINOCULAR FULL LED
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
COLD AREA SPEC
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
HEADLAMP-TRINOCULAR FULL LED
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
85330BBUSH, HEADLAMP CLEANER WASHER JAR
COLD AREA SPEC
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
HEADLAMP-TRINOCULAR FULL LED
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
COLD AREA SPEC
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
HEADLAMP-TRINOCULAR FULL LED
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
COLD AREA SPEC
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
HEADLAMP-TRINOCULAR FULL LED
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
COLD AREA SPEC
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
HEADLAMP-TRINOCULAR FULL LED
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
85350AJOINT, HEADLAMP CLEANER ELBOW, NO.3
COLD AREA SPEC
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
HEADLAMP-TRINOCULAR FULL LED
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
85353COVER, HEADLAMP WASHER, RH
COLD AREA SPEC,SONIC QUARTZ,085
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED,SONIC QUARTZ,085
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),SONIC QUARTZ,085
HEADLAMP-TRINOCULAR FULL LED,SONIC QUARTZ,085
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),SONIC QUARTZ,085
COLD AREA SPEC,MERCURY GRAY MC.,1H9
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED,MERCURY GRAY MC.,1H9
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),MERCURY GRAY MC.,1H9
HEADLAMP-TRINOCULAR FULL LED,MERCURY GRAY MC.,1H9
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),MERCURY GRAY MC.,1H9
COLD AREA SPEC,SONIC TITANIUM,1J7
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED,SONIC TITANIUM,1J7
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),SONIC TITANIUM,1J7
HEADLAMP-TRINOCULAR FULL LED,SONIC TITANIUM,1J7
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),SONIC TITANIUM,1J7
COLD AREA SPEC,SONIC CHROME,1L1
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED,SONIC CHROME,1L1
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),SONIC CHROME,1L1
HEADLAMP-TRINOCULAR FULL LED,SONIC CHROME,1L1
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),SONIC CHROME,1L1
COLD AREA SPEC,BLACK,212
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED,BLACK,212
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),BLACK,212
HEADLAMP-TRINOCULAR FULL LED,BLACK,212
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),BLACK,212
COLD AREA SPEC,GRAPHITE BLACK GF.,223
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED,GRAPHITE BLACK GF.,223
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),GRAPHITE BLACK GF.,223
HEADLAMP-TRINOCULAR FULL LED,GRAPHITE BLACK GF.,223
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),GRAPHITE BLACK GF.,223
COLD AREA SPEC,MADDER RED,3T2
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED,MADDER RED,3T2
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),MADDER RED,3T2
HEADLAMP-TRINOCULAR FULL LED,MADDER RED,3T2
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),MADDER RED,3T2
COLD AREA SPEC,BLAZING CARNELIAN CONTRAS,4Y1
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED,BLAZING CARNELIAN CONTRAS,4Y1
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),BLAZING CARNELIAN CONTRAS,4Y1
HEADLAMP-TRINOCULAR FULL LED,BLAZING CARNELIAN CONTRAS,4Y1
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),BLAZING CARNELIAN CONTRAS,4Y1
COLD AREA SPEC,TERRANE KHAKI M.M.,6X4
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED,TERRANE KHAKI M.M.,6X4
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),TERRANE KHAKI M.M.,6X4
HEADLAMP-TRINOCULAR FULL LED,TERRANE KHAKI M.M.,6X4
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),TERRANE KHAKI M.M.,6X4
COLD AREA SPEC,CELESTIAL BLUE GF.,8Y6
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED,CELESTIAL BLUE GF.,8Y6
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),CELESTIAL BLUE GF.,8Y6
HEADLAMP-TRINOCULAR FULL LED,CELESTIAL BLUE GF.,8Y6
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),CELESTIAL BLUE GF.,8Y6
85354COVER, HEADLAMP WASHER, LH
COLD AREA SPEC,SONIC QUARTZ,085
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED,SONIC QUARTZ,085
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),SONIC QUARTZ,085
HEADLAMP-TRINOCULAR FULL LED,SONIC QUARTZ,085
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),SONIC QUARTZ,085
COLD AREA SPEC,MERCURY GRAY MC.,1H9
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED,MERCURY GRAY MC.,1H9
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),MERCURY GRAY MC.,1H9
HEADLAMP-TRINOCULAR FULL LED,MERCURY GRAY MC.,1H9
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),MERCURY GRAY MC.,1H9
COLD AREA SPEC,SONIC TITANIUM,1J7
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED,SONIC TITANIUM,1J7
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),SONIC TITANIUM,1J7
HEADLAMP-TRINOCULAR FULL LED,SONIC TITANIUM,1J7
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),SONIC TITANIUM,1J7
COLD AREA SPEC,SONIC CHROME,1L1
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED,SONIC CHROME,1L1
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),SONIC CHROME,1L1
HEADLAMP-TRINOCULAR FULL LED,SONIC CHROME,1L1
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),SONIC CHROME,1L1
COLD AREA SPEC,BLACK,212
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED,BLACK,212
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),BLACK,212
HEADLAMP-TRINOCULAR FULL LED,BLACK,212
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),BLACK,212
COLD AREA SPEC,GRAPHITE BLACK GF.,223
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED,GRAPHITE BLACK GF.,223
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),GRAPHITE BLACK GF.,223
HEADLAMP-TRINOCULAR FULL LED,GRAPHITE BLACK GF.,223
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),GRAPHITE BLACK GF.,223
COLD AREA SPEC,MADDER RED,3T2
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED,MADDER RED,3T2
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),MADDER RED,3T2
HEADLAMP-TRINOCULAR FULL LED,MADDER RED,3T2
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),MADDER RED,3T2
COLD AREA SPEC,BLAZING CARNELIAN CONTRAS,4Y1
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED,BLAZING CARNELIAN CONTRAS,4Y1
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),BLAZING CARNELIAN CONTRAS,4Y1
HEADLAMP-TRINOCULAR FULL LED,BLAZING CARNELIAN CONTRAS,4Y1
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),BLAZING CARNELIAN CONTRAS,4Y1
COLD AREA SPEC,TERRANE KHAKI M.M.,6X4
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED,TERRANE KHAKI M.M.,6X4
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),TERRANE KHAKI M.M.,6X4
HEADLAMP-TRINOCULAR FULL LED,TERRANE KHAKI M.M.,6X4
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),TERRANE KHAKI M.M.,6X4
COLD AREA SPEC,CELESTIAL BLUE GF.,8Y6
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED,CELESTIAL BLUE GF.,8Y6
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),CELESTIAL BLUE GF.,8Y6
HEADLAMP-TRINOCULAR FULL LED,CELESTIAL BLUE GF.,8Y6
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB),CELESTIAL BLUE GF.,8Y6
85361CBRACKET, WASHER
COLD AREA SPEC
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
HEADLAMP-TRINOCULAR FULL LED
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
85362BRACKET, WASHER, NO.2
COLD AREA SPEC
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
HEADLAMP-TRINOCULAR FULL LED
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=35,COLD AREA SPEC
L=35,COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED
L=35,COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
L=35,HEADLAMP-TRINOCULAR FULL LED
L=35,HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
COLD AREA SPEC
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED
COLD AREA SPEC&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
HEADLAMP-TRINOCULAR FULL LED
HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)
9007591002
main90075-91002
9016750063
main90167-50063
9018305009
main90183-05009

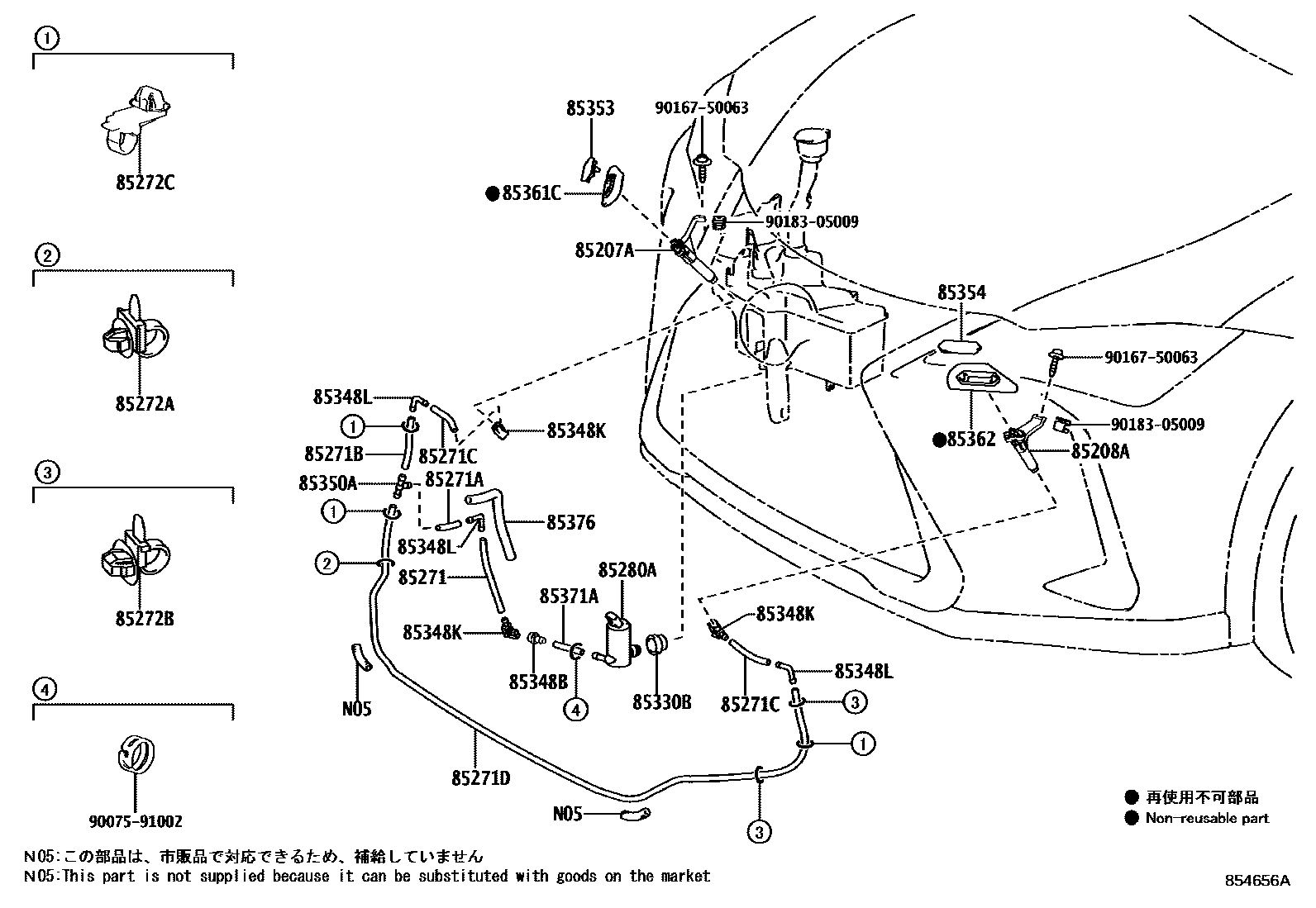

25 parts on this diagram · 1 diagram in section
