SWITCH & RELAY & COMPUTER

0001 1MOTOR COMPARTMENT 0002 1MOTOR COMPARTMENT RELAY BLOCK0003 1COWL 0004 1INSTRUMENT PANEL 0005 1CONSOLE BOX 0006 1STEERING 0007 1SEAT 0008 1DOOR & ROOF 0009 1FLOOR & BACK DOOR

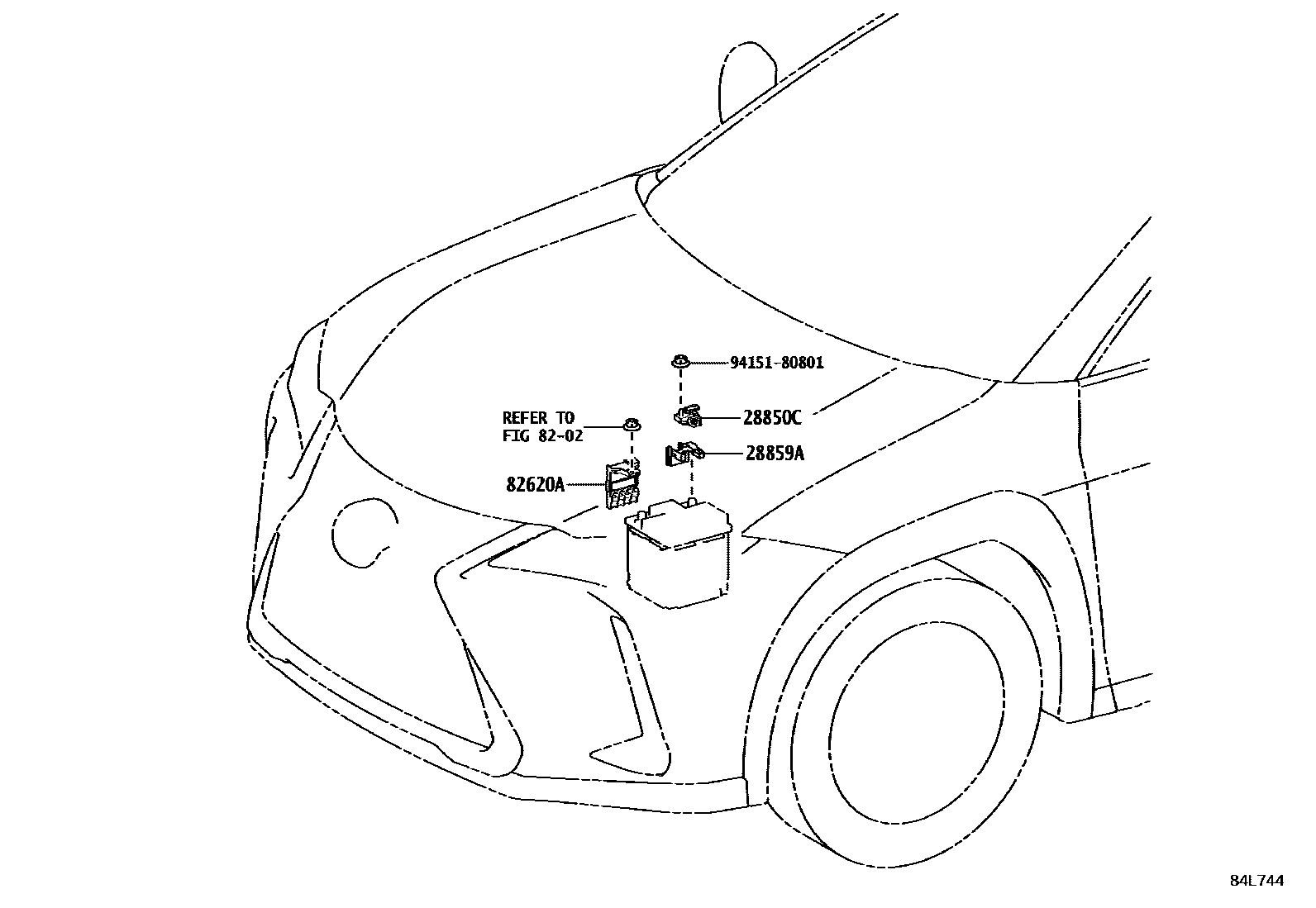

28850CSENSOR ASSY, BATTERY STATE

main28850-K0010i4KM..KMA10202111

28859AHOLDER, BATTERY CURRENT SENSOR

main28859-10010i4KM..KMA10202111

8202

82620ABLOCK ASSY, FUSIBLE LINK

main82620-47090iKMA10202111

9415180801

main94151-80801

5 parts on this diagram · 9 diagrams in section
