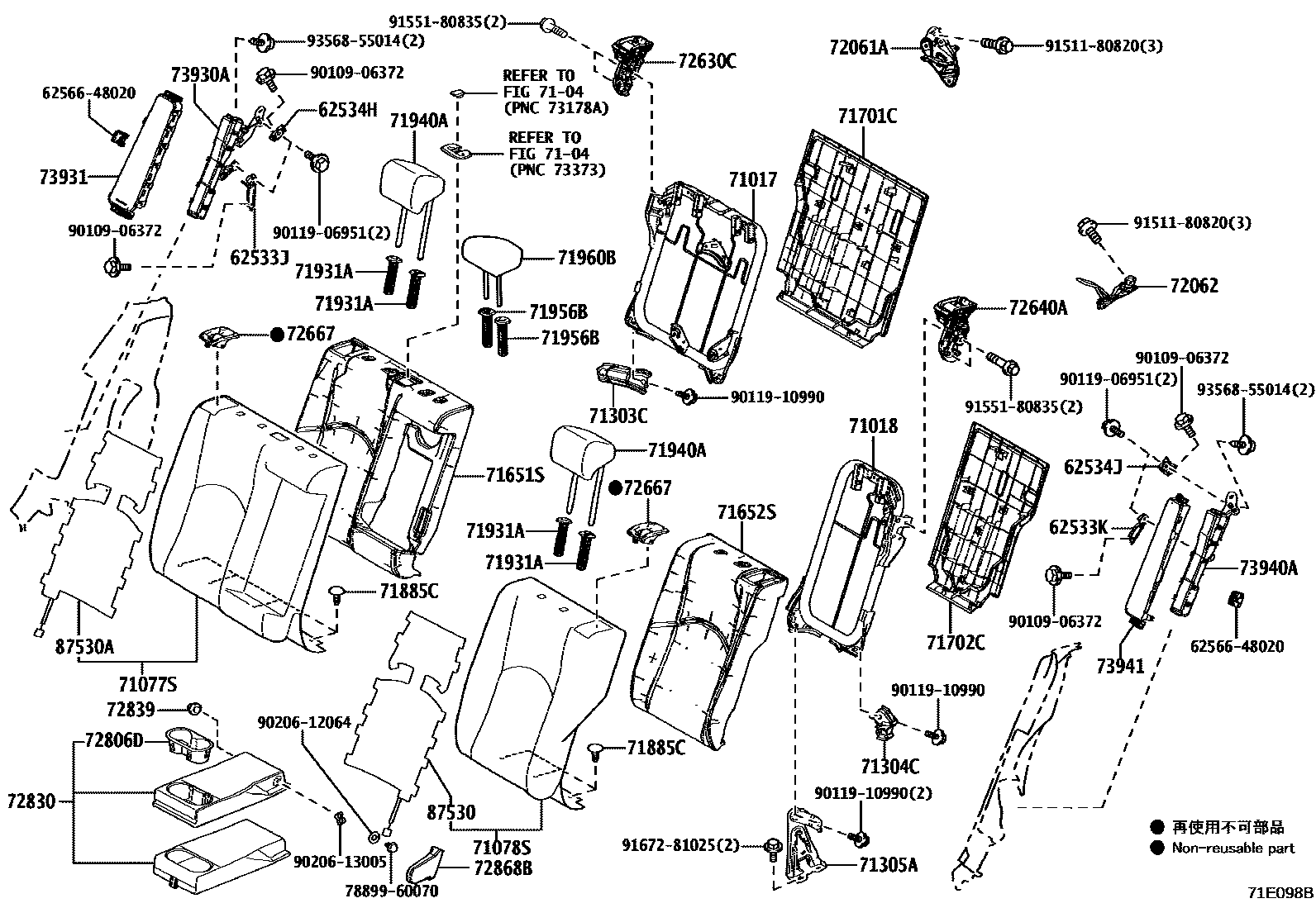

REAR SEAT & SEAT TRACK
62533JBRACKET, SIDE TRIM, NO.1, RH
62533KBRACKET, SIDE TRIM, NO.1, LH
62534HBRACKET, SIDE TRIM, NO.2, RH
62534JBRACKET, SIDE TRIM, NO.2, LH
71017FRAME SUB-ASSY, REAR SEATBACK, RH
71018FRAME SUB-ASSY, REAR SEATBACK, LH
7104
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
WHITE ASH/BLUE,TRIM8#
WHITE ASH/WHITE ASH,TRIM1#
BLACK,TRIM2#
OCHER,TRIM4#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
WHITE ASH/BLUE,TRIM8#
WHITE ASH/WHITE ASH,TRIM1#
BLACK,TRIM2#
OCHER,TRIM4#
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
71701CBOARD SUB-ASSY, REAR SEATBACK, RH
71702CBOARD SUB-ASSY, REAR SEATBACK, LH
71885CCLIP(FOR REAR SEATBACK CARPET)
71931ASUPPORT, REAR SEAT HEADREST
W/O(LOCK),BLACK,TRIM1#,2#,4#,8#
71940AHEADREST ASSY, REAR SEAT
WHITE ASH,TRIM1#
BLACK,TRIM2#
OCHER,TRIM4#
BLUE,TRIM8#
71956BSUPPORT, REAR SEAT HEADREST
W(LOCK),BLACK,TRIM1#,2#,4#,8#
W/O(LOCK),BLACK,TRIM1#,2#,4#,8#
71960BHEADREST ASSY, REAR SEAT, CENTER
WHITE ASH,TRIM1#
BLACK,TRIM2#
OCHER,TRIM4#
BLUE,TRIM8#
72061ABASE SUB-ASSY, REAR SEATBACK LOCK, RH
72062BASE SUB-ASSY, REAR SEATBACK LOCK, LH
72630CLOCK ASSY, REAR SEATBACK, RH
72640ALOCK ASSY, REAR SEATBACK, LH
72667BEZEL, REAR SEATBACK LOCK, UPPER
WHITE ASH,TRIM10
BLACK,TRIM11,2#
OCHER,TRIM4#
BLUE,TRIM8#
72806DHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP
BLACK,TRIM1#,2#,4#,8#
72830ARMREST ASSY, REAR SEAT, CENTER
WHITE ASH,TRIM1#
BLACK,TRIM2#
OCHER,TRIM4#
BLUE,TRIM8#
72839SHIM, REAR SEAT ARMREST HINGE
72868BCOVER, CENTER ARMREST HINGE
BLACK,TRIM1#,2#,4#,8#
73931COVER, REAR SEAT AIRBAG DOOR, RH
73941COVER, REAR SEAT AIRBAG DOOR, LH
87530HEATER ASSY, REAR NO.1 SEATBACK, LH
87530AHEATER ASSY, REAR NO.1 SEATBACK, RH
6256648020GARNISH, REAR SEAT SIDE, LH
main62566-48020
7889960070BOLT, FRONT SEAT
main78899-60070
9010906372
main90109-06372
9011906951
main90119-06951
9011910990
main90119-10990
9020612064
main90206-12064
9020613005
main90206-13005
9151180820
main91511-80820
9155180835
main91551-80835
9167281025
main91672-81025
9356855014
main93568-55014
47 parts on this diagram · 2 diagrams in section
