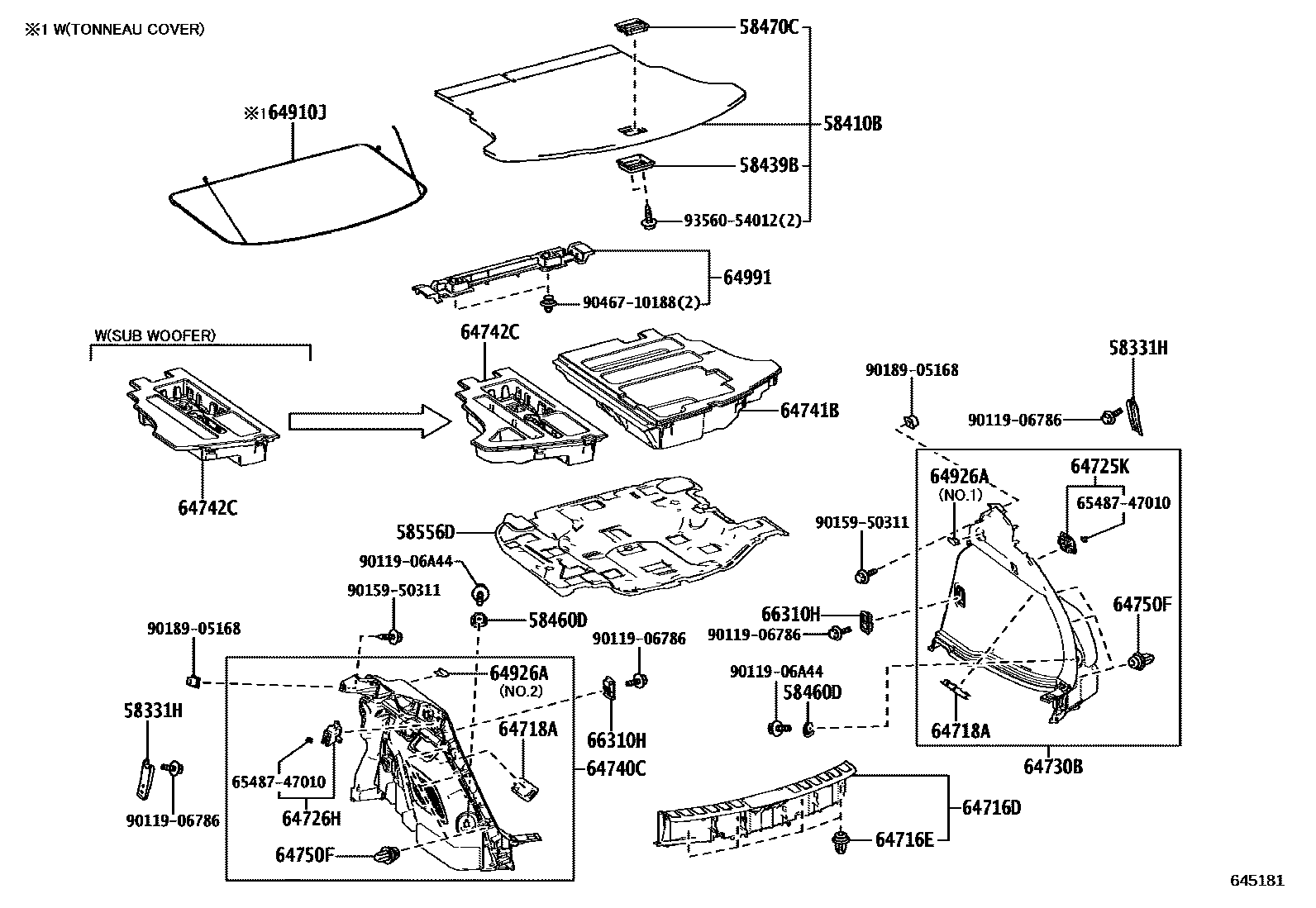

DECK BOARD & DECK TRIM COVER

58331HBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1

main58331-76010iKMA10202111

58410BBOARD ASSY, DECK

main58410-76050-C0iKMA10202111

BLACK,TRIM1#,2#,4#,8#

58439BPROTECTOR, DECK BOARD, NO.1

main58477-28020iKMA10202111

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iKMA10202111

58470CHANDLE ASSY, DECK BOARD

main58470-50010-C1iKMA10202111

BLACK,TRIM1#,2#,4#,8#

58556DSILENCER, REAR FLOOR

main58556-76030iKMA10202111-202302

sub5856A-76020

64716DCOVER, DECK TRIM, REAR

main64716-76040-C0iKMA10202111

BLACK,TRIM1#,2#,4#,8#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-10167iKMA10202111

64718ACOVER, DECK TRIM SERVICE HOLE

main64718-76020-C0iKMA10202111

BLACK,TRIM1#,2#,4#,8#

64725KHOOK, DECK SIDE TRIM, NO.1

main64725-76010-C0iKMA10202111

BLACK,TRIM1#,2#,4#,8#

64726HHOOK, DECK SIDE TRIM, NO.2

main64726-76010-C0iKMA10202111

BLACK,TRIM1#,2#,4#,8#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-76050-C0iKMA10202111

BLACK,TRIM1#,2#,4#,8#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-76130-C0iKMA10202111

BLACK,TRIM1#,2#,4#,8#

64741BBOX, DECK SIDE TRIM, RH

main64741-76020iKMA10202111

64742CBOX, DECK SIDE TRIM, LH

main64742-76030iKMA10202111

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161iKMA10202111

64910JCOVER ASSY, TONNEAU

64926AHOOK, TONNEAU

main64926-76010-C0iKMA10202111

BLACK,TRIM1#,2#,4#,8#,NO.1:REFER ILLUST.

main64926-76020-C0iKMA10202111

BLACK,TRIM1#,2#,4#,8#,NO.2:REFER ILLUST.

64991BOX, DECK FLOOR, FRONT

main64991-76030iKMA10202111

66310HHOOK ASSY, ROPE

main66310-30011-C1iKMA10202111

BLACK,TRIM1#,2#,4#,8#

sub66310-30011

6548747010CLIP, CORNER PROTECTOR

main65487-47010

9011906786

main90119-06786

9011906A44

main90119-06A44

9015950311

main90159-50311

9018905168

main90189-05168

9046710188

main90467-10188

9356054012

main93560-54012

27 parts on this diagram · 1 diagram in section
