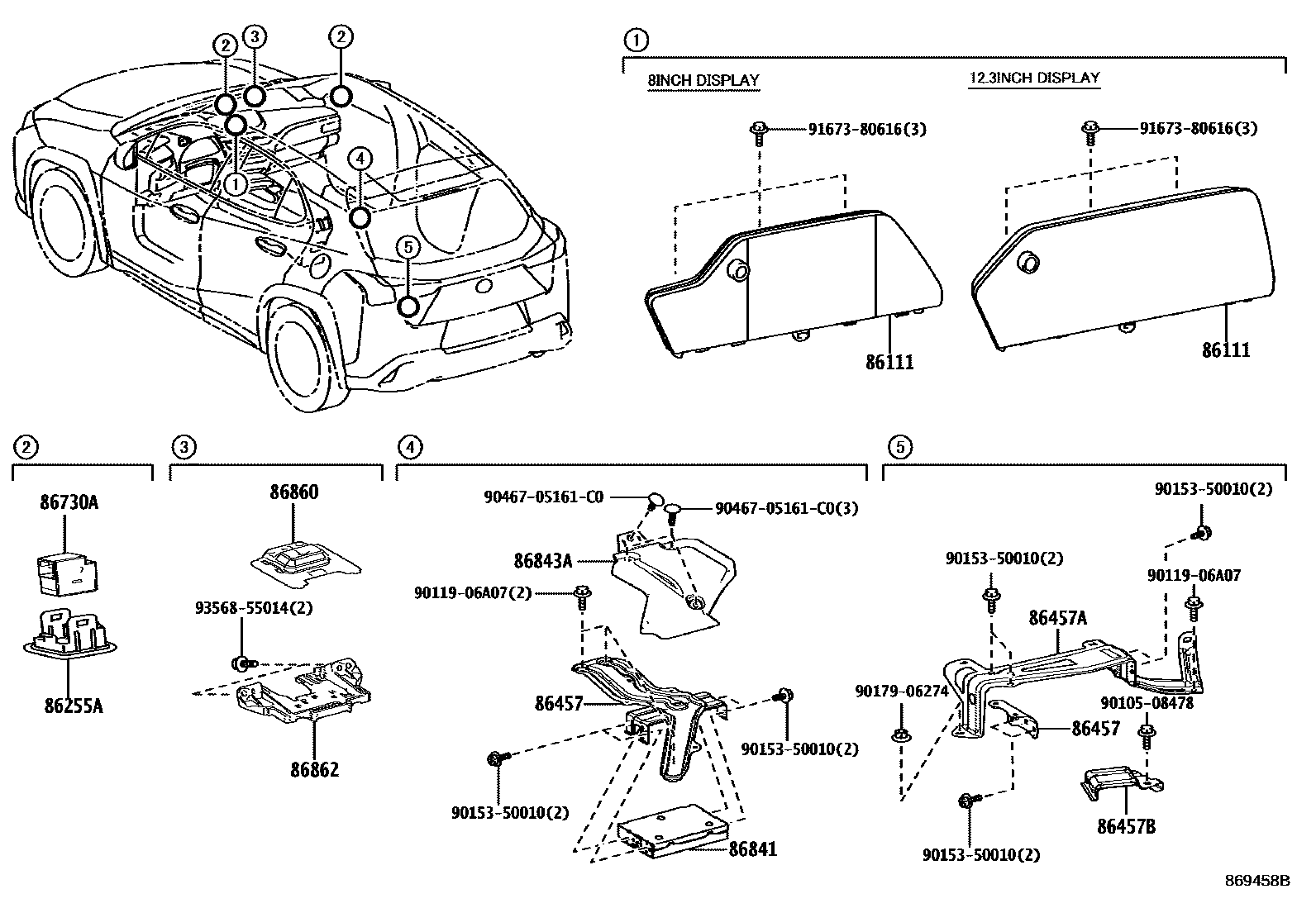

NAVIGATION & FRONT MONITOR DISPLAY

86111MULTI-DISPLAY

main86110-76270iMZAH11,16202401

DENSO TEN

main86110-76320iKMA10202303-202305

DENSO TEN

main86110-76330iMZAH10,15202207

DENSO TEN

86255ACASE, MICROPHONE, NO.1

main86255-76010-A0iMZAH10,15202207

WHITE,TRIM8#

main86255-76010-C0iMZAH10,15202207

BLACK,TRIM1#,2#,3#,4#

main86255-76010-C0iKMA10202303-202305

BLACK,TRIM1#,2#,4#

86457BRACKET, MULTI-MEDIA MODULE NO.1

main86457-76040

main86457-76050

main86457-76060

main86457-76070

86457ABRACKET, MULTI-MEDIA MODULE NO.2

86457BBRACKET, MULTI-MEDIA MODULE NO.3

86730AMICROPHONE ASSY, TELEPHONE

main86730-78010iKMA10¥6,400202207-202305

86841COMPUTER, NAVIGATION

main86840-78040

86843ACOVER, NAVIGATION COMPUTER

86860ANTENNA ASSY, NAVIGATION

main86880-42010iMZAH11,16¥8,500202401

main86880-52020iKMA10¥8,500202207-202305

86862BRACKET, NAVIGATION ANTENNA

main86862-42010iKMA10¥940202207-202305

9010508478

main90105-08478¥80

9011906A07

main90119-06A07¥60

9015350010

main90153-50010¥70

9017906274

main90179-06274¥70

9046705161C0

main90467-05161C0

9167380616

main91673-80616¥60

9356855014

main93568-55014¥70

17 parts on this diagram · 1 diagram in section
