REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-76020iKMA10202207-202305

main85130-76030iMZAH11,16202401

85143RGROMMET, REAR WIPER MOTOR

main85143-28070iKMA10202207-202305

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iKMA10202207-202305

85214RRUBBER, REAR WIPER

main85214-42040iKMA10202207-202305

85241AARM, REAR WIPER

main85241-76010iKMA10202207-202305

85242BLADE, RR WIPER

main85242-78010iKMA10202207-202305

sub85242-72010

85292ACAP, REAR WIPER ARM HEAD

main85292-47050iKMA10202207-202305

9011906953

main90119-06953

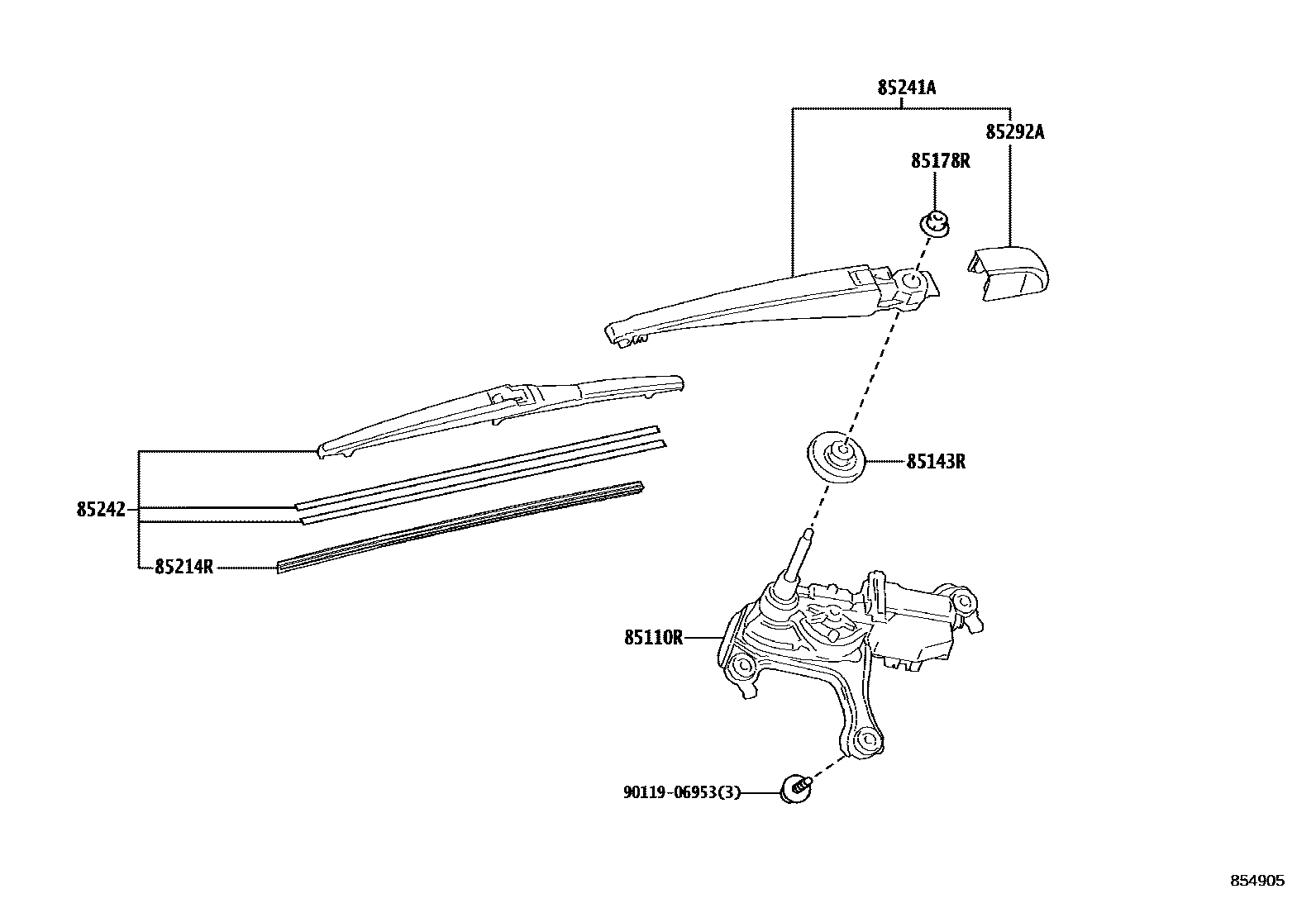

8 parts on this diagram · 1 diagram in section
