INVERTER(BEV OR FCEV)

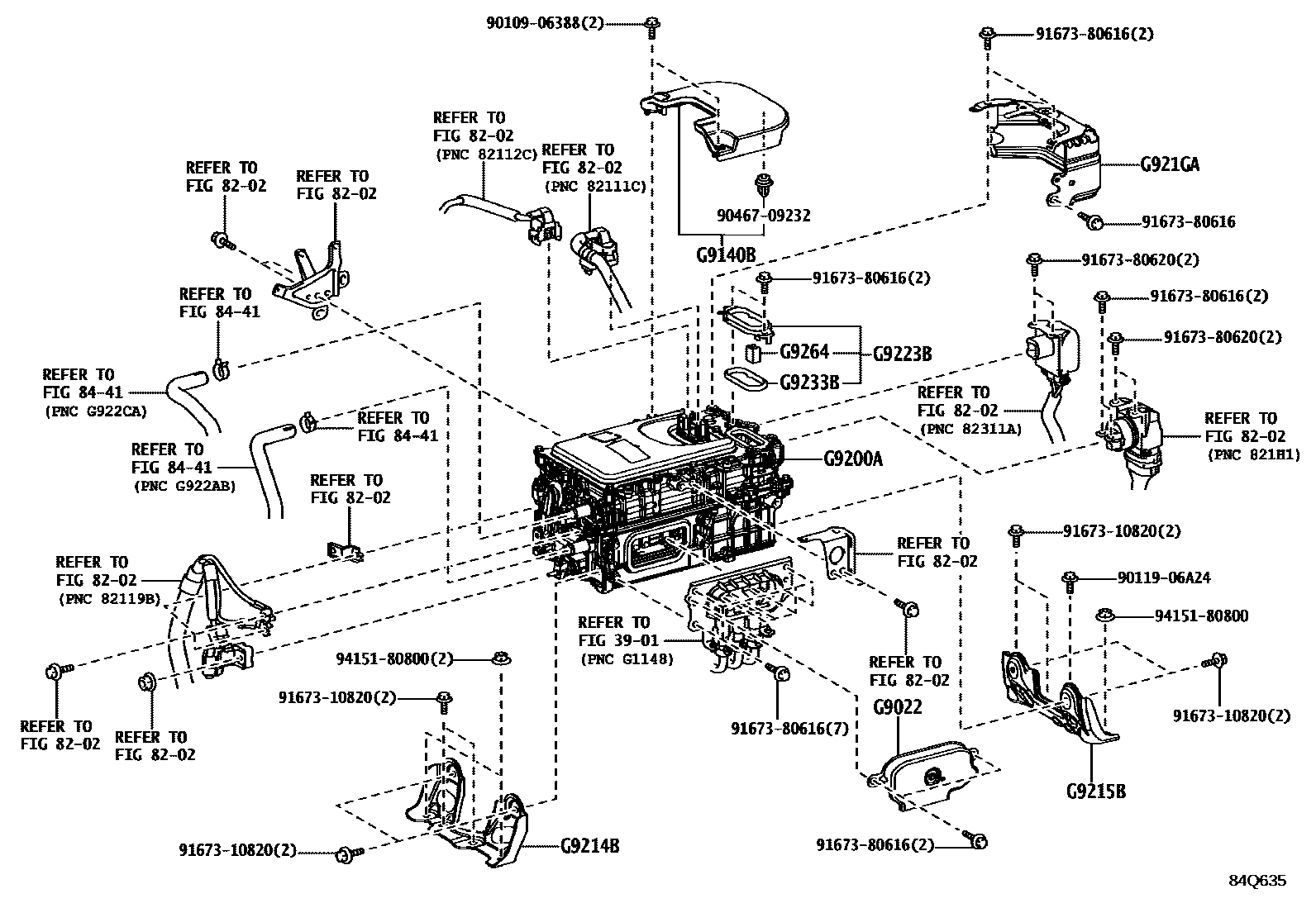

Parts diagram

3901

8202

8441

G9022COVER SUB-ASSY, INVERTER, UPPER

mainG902210010i202303-202305

G9140BCOVER ASSY, INVERTER

mainG914076020i202303-202305

G9200AINVERTER ASSY, W/CONVERTER

mainG92A076080i202303-202305

G9214BBRACKET, INVERTER, NO.1

mainG921410010i202303-202305

G9215BBRACKET, INVERTER, NO.2

mainG921510010i202303-202305

G921GAPROTECTOR, INVERTER

mainG921G10010i202303-202305

G9223BCOVER, INVERTER TERMINAL

mainG922310010i202303-202305

G9233BGASKET, INVERTER COVER

mainG923310010i202303-202305

G9264CONNECTOR, INVERTER SIGNAL

mainG926410010i202303-202305

9010906388

main90109-06388

9011906A24

main90119-06A24

9046709232

main90467-09232

9167310820

main91673-10820

9167380616

main91673-80616

9167380620

main91673-80620

9415180800

main94151-80800

19 parts on this diagram · 1 diagram in section
