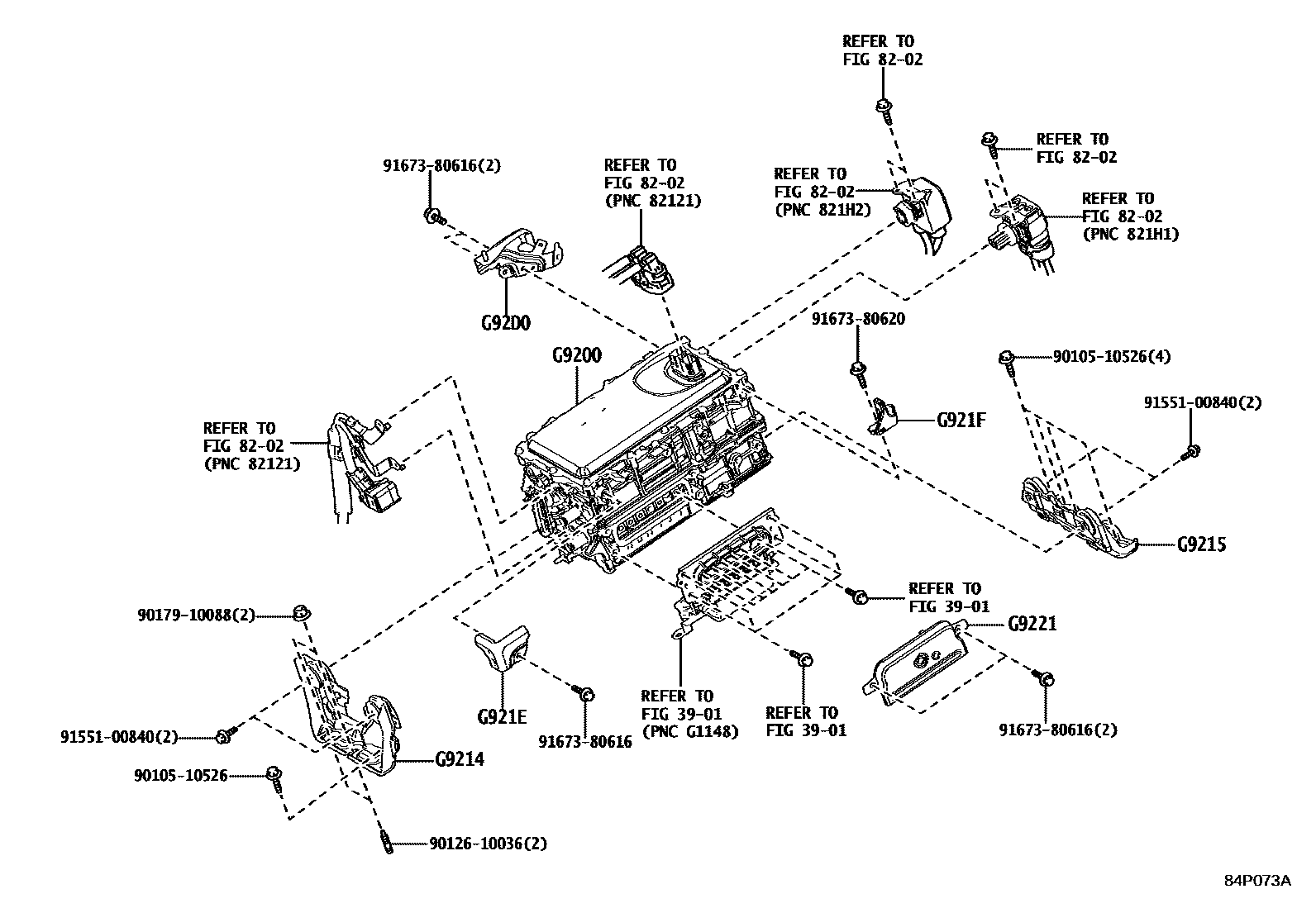

HEV INVERTER

0001 1FRONT 0002 1FRONT 0003 1REAR 0004 1

3901

8202

G9200INVERTER ASSY, W/CONVERTER

mainG920079046iMZAH10202207

mainG920079056iMZAH15202207

G9214BRACKET, INVERTER, NO.1

mainG921433040iMZAH10,15202207

mainG921463010iMZAH11,16202401

G9215BRACKET, INVERTER, NO.2

mainG921533040iMZAH10,15202207

mainG921547060iMZAH16202401

mainG921563010iMZAH11202401

G921EPROTECTOR, INVERTER

mainG921E47010iMZAH10,15202207

G921FPROTECTOR, INVERTER, NO.2

mainG921F76010iMZAH10,15202207

G9221COVER, INVERTER

mainG902228030iMZAH11,16202401

mainG902247050iMZAH10,15202207

G92D0PROTECTOR ASSY, HYBRID INVERTER

mainG92D076010iMZAH10,15202207

9010510526

main90105-10526

9012610036

main90126-10036

9017910088

main90179-10088

9155100840

main91551-00840

9167380616

main91673-80616

9167380620

main91673-80620

15 parts on this diagram · 4 diagrams in section
