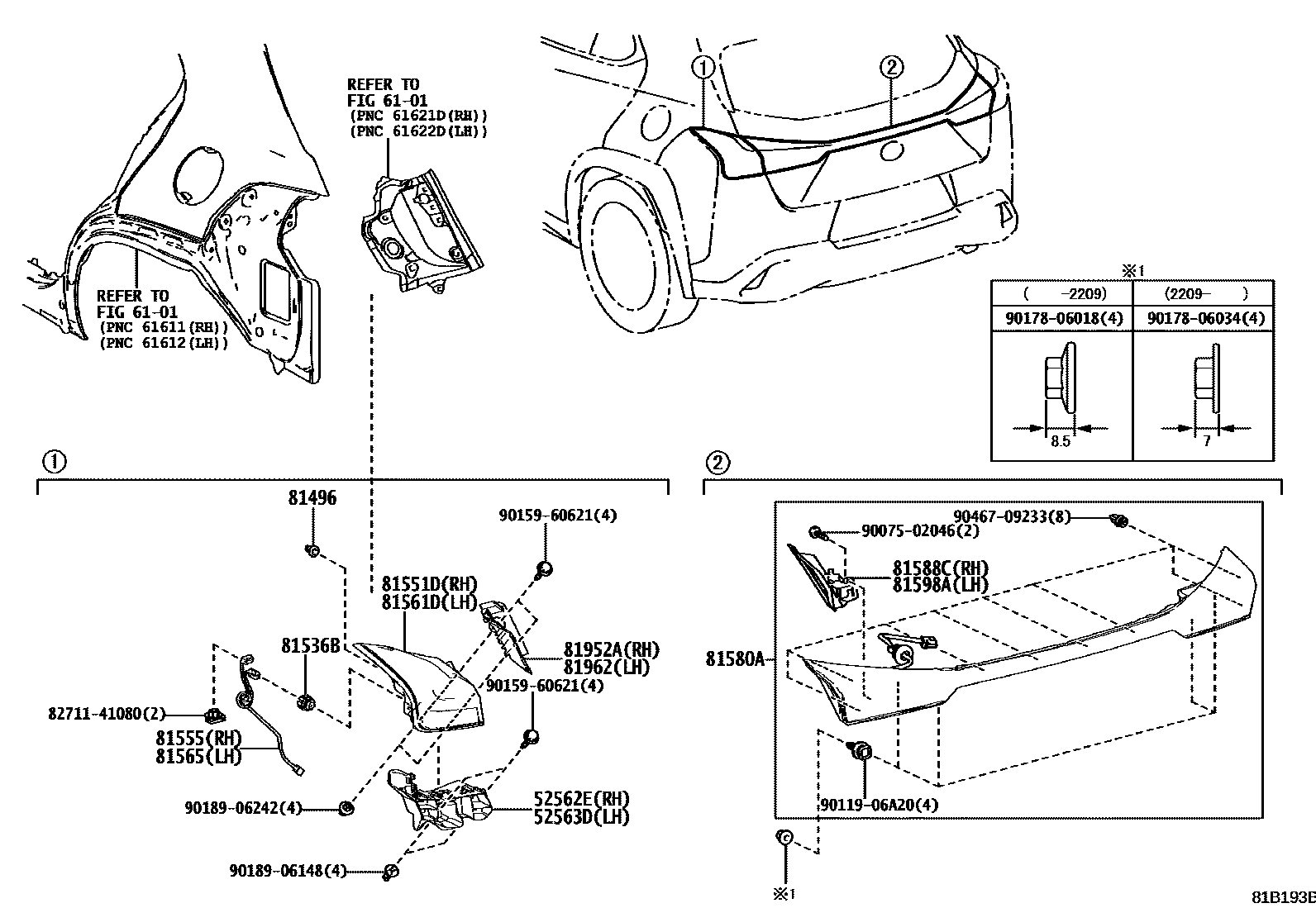

REAR COMBINATION LAMP

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-76020iMZAH10,15202207-202305

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-76020iKMA10202207-202305

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iKMA10202207-202305

81536BLED, REAR TURN SIGNAL LAMP

main81965-48030iMZAH10,15202207-202305

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-76390iMZAH11,16202207

main81551-76400iMZAH16202207-202411

KOREA SPEC

main81551-76400iKMA10202303-202305

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-76290iKMA10202207-202305

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-76390iMZAH10,15202207

main81561-76400iMZAH10,15202207-202411

KOREA SPEC

main81561-76400iKMA10202303-202305

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-76290iKMA10202207-202305

81580ALAMP ASSY, REAR

main81580-76260iKMA10202207-202305

81588CRIM, REAR LAMP, RH

main81588-76140iKMA10202207-202305

81598ARIM, REAR LAMP, LH

main81588-76170iKMA10202207-202305

81952ACOVER, REAR LAMP, RH

main81952-76010iKMA10202207-202305

81962COVER, REAR LAMP, LH

main81962-76010iKMA10202207-202305

8271141080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-41080

9007502046

main90075-02046

9011906A20

main90119-06A20

9015960621

main90159-60621

9017806018

main90178-06018

9017806034

main90178-06034

9018906148

main90189-06148

9018906242

main90189-06242

9046709233

main90467-09233

23 parts on this diagram · 1 diagram in section
