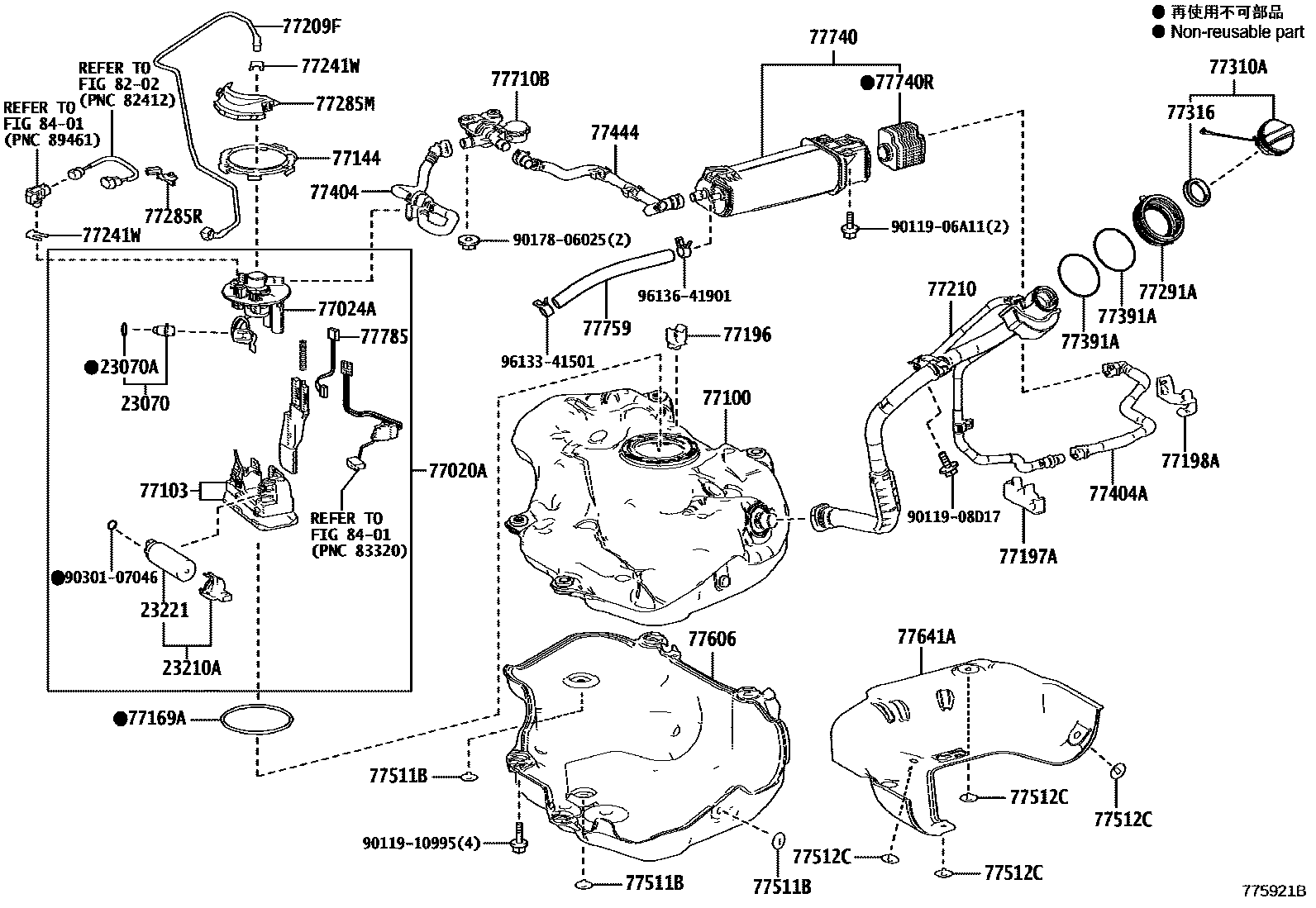

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
23070ARING, O, NO.1(FOR FUEL MAIN VALVE)
23210APUMP ASSY, FUEL W/MOTOR & BRACKET
23221PUMP, FUEL
77103SUB-TANK SUB-ASSY, FUEL
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77196CLAMP, EVAPORATION VENT TUBE, NO.1
77197ACLAMP, EVAPORATION VENT TUBE, NO.2
77198ACLAMP, EVAPORATION VENT TUBE, NO.3
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77210PIPE ASSY, FUEL TANK FILLER
77241WCLIP, TUBE JOINT
77285MCLAMP, FUEL TUBE, NO.1
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391ARING, FUEL INLET BOX
77404AHOSE SUB-ASSY, FUEL TANK VENT
77511BBRACKET, FUEL TANK
77512CBRACKET, FUEL TANK
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77710BVALVE ASSY, FUEL TANK SOLENOID MAIN
77740CANISTER ASSY, CHARCOAL
77740RPUMP SUB-ASSY, LEAK DETECTION
77759HOSE, CHARCOAL CANISTER
8202
8401
9011906A11
main90119-06A11
9011908D17
main90119-08D17
9011910995
main90119-10995
9017806025
main90178-06025
9030107046
main90301-07046
9613341501
main96133-41501
9613641901
main96136-41901
43 parts on this diagram · 6 diagrams in section
