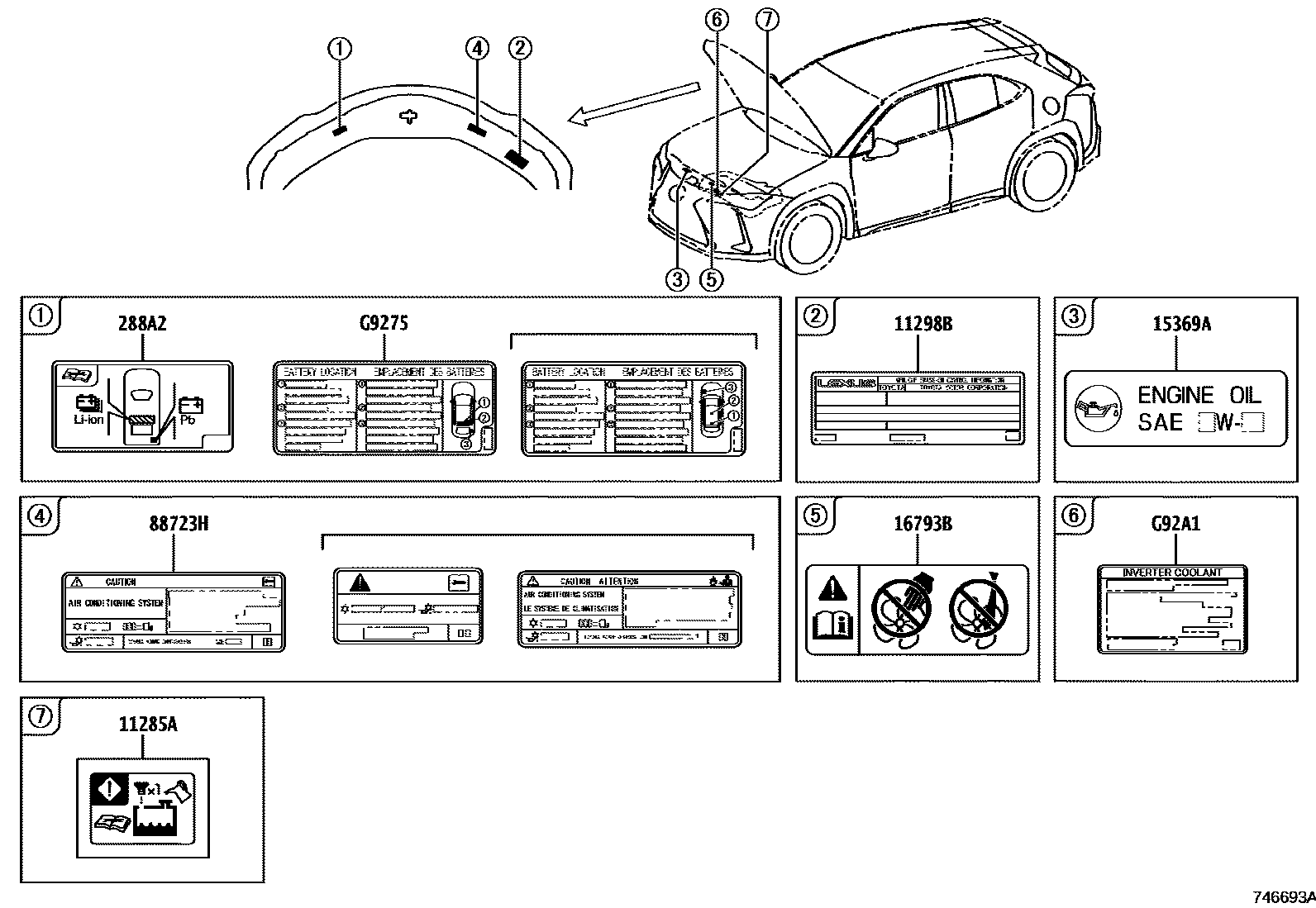

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM 0002 1EXTERIOR 0003 1INTERIOR

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-11020i4KM..KMA10202303-202305

11298BLABEL, EMISSION CONTROL INFORMATION

main11298-24094iM20AFXS..MZAH1#202207-202304

MEXICO SPEC

main11298-24095iM20AFXS..MZAH10,15202304

main11298-24096iM20AFXS..MZAH11,16202401-202512

MEXICO SPEC

15369ALABEL, ENGINE OIL INFORMATION

main15369-25010iM20AFXS..MZAH10,15202207

main15369-25020iM20AFXS..MZAH11,16202401

MEXICO SPEC

main15369-25020iM20AFXS..MZAH11,16202401

KOREA SPEC

16793BLABEL, COOLING FAN INFORMATION

main16793-36030i4KM..KMA10202207-202305

288A2LABEL, BATTERY LOCATION

main288A2-24020iM20AFXS..MZAH11,16202401

88723HLABEL, COOLER SERVICE CAUTION

main88723-12290iMZAH10,15202207

main88723-76090iKMA10202303-202305

G9275LABEL, BATTERY CAUTION, NO.1

mainG927512010iMZAH10,15202207

mainG927576070iKMA10202303-202305

G92A1LABEL, HYBRID COOLANT SYSTEM INFORMATION

mainG92A176010iKMA10202303-202305

8 parts on this diagram · 3 diagrams in section
