REAR SEAT & SEAT TRACK

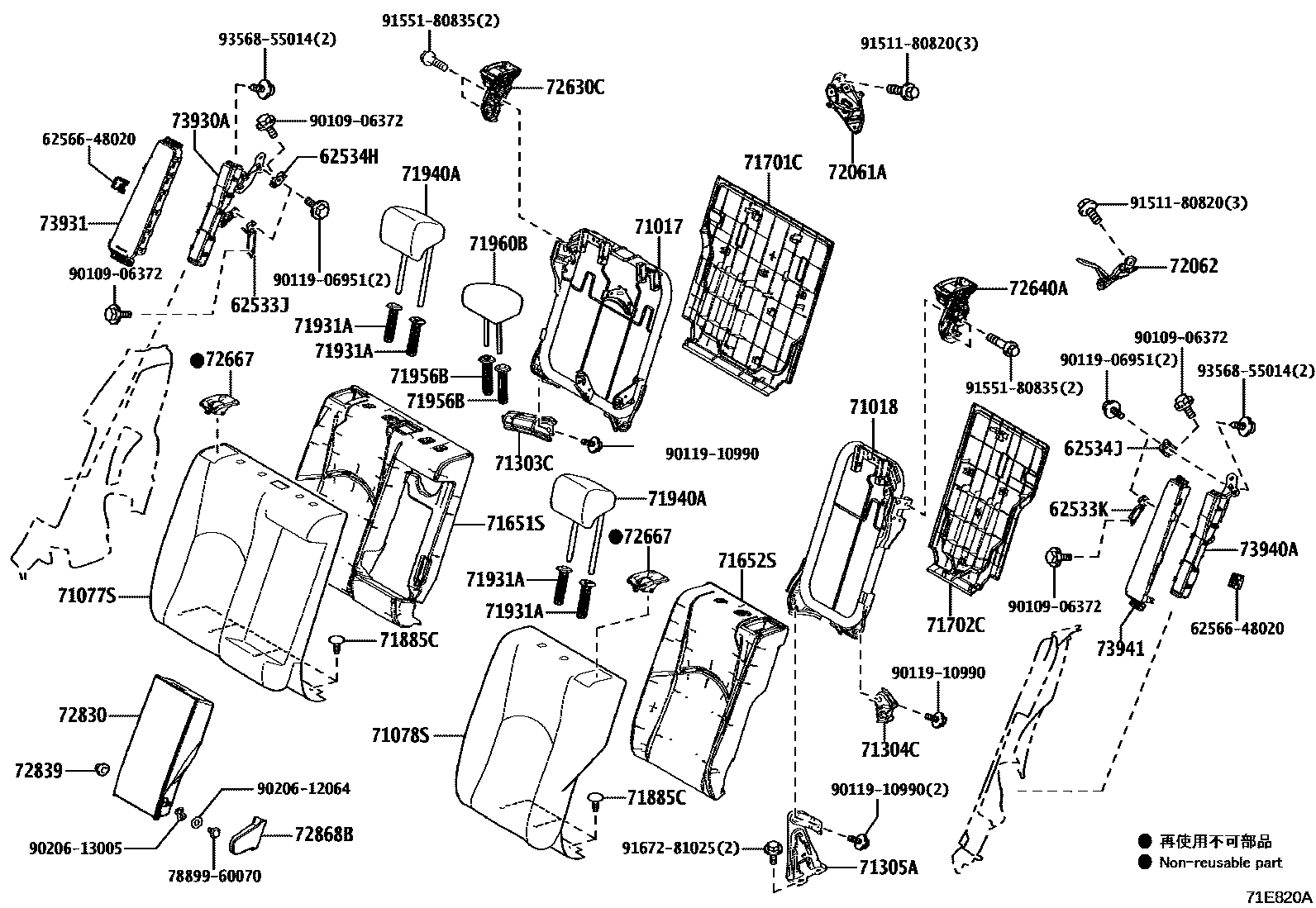

Parts diagram
62533JBRACKET, SIDE TRIM, NO.1, RH
main62533-76011i202207-202305
62533KBRACKET, SIDE TRIM, NO.1, LH
main62533-76021i202207-202305
62534HBRACKET, SIDE TRIM, NO.2, RH
main62534-76011i202207-202305
62534JBRACKET, SIDE TRIM, NO.2, LH
main62534-76011i202207-202305
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-76051i202207-202305
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-76041i202207-202305
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-76600-B8i202207
WHITE ASH/BLUE,TRIM8#
main71077-76600-B9i202207
WHITE ASH/WHITE ASH,TRIM1#
main71077-76600-C5i202207
BLACK,TRIM2#
main71077-76600-E5i202207
HAZEL,TRIM4#
main71077-76870-B1i202303-202305
WHITE ASH/WHITE ASH,TRIM1#
main71077-76870-C0i202303-202305
BLACK,TRIM2#
main71077-76870-E1i202303-202305
HAZEL,TRIM4#
main71077-76B60-B2i202401-202512
WHITE ASH/BLUE,TRIM8#
main71077-76B60-B3i202401
WHITE ASH,TRIM1#
main71077-76B60-C1i202401
BLACK,TRIM2#
main71077-76B60-D1i202411
RED,TRIM3#
main71077-76B60-E1i202401
HAZEL,TRIM4#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-76480-B6i202207
WHITE ASH/BLUE,TRIM8#
sub71078-76480
main71078-76480-B7i202207
WHITE ASH,TRIM1#
sub71078-76480
main71078-76480-C4i202207
BLACK,TRIM2#
sub71078-76480
main71078-76480-E6i202207
HAZEL,TRIM4#
sub71078-76480
main71078-76660-B3i202303-202305
WHITE ASH/WHITE ASH,TRIM1#
main71078-76660-C1i202303-202305
BLACK,TRIM2#
main71078-76660-E4i202303-202305
HAZEL,TRIM4#
main71078-76810-B2i202401-202512
WHITE ASH/BLUE,TRIM8#
main71078-76810-B3i202401
WHITE ASH,TRIM1#
main71078-76810-C1i202401
BLACK,TRIM2#
main71078-76810-D1i202411
RED,TRIM3#
main71078-76810-E1i202401
HAZEL,TRIM4#
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
main71303-76020i202207-202305
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
main71304-76020i202207-202305
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
main71305-47040i202207-202305
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-76060i202207-202305
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-76060i202207-202305
71701CBOARD SUB-ASSY, REAR SEATBACK, RH
main71701-76010i202207-202305
71702CBOARD SUB-ASSY, REAR SEATBACK, LH
main71702-76010i202207-202305
71885CCLIP(FOR REAR SEATBACK CARPET)
main90467-07049-23i202207-202305
BLACK
sub90467-07049
71931ASUPPORT, REAR SEAT HEADREST
main71930-47050-C5i202401
W(LOCK),BLACK,TRIM1#,2#,3#,4#,8#
main71955-47010-C2i202207
W/O(LOCK),BLACK,TRIM1#,2#,3#,4#,8#
main71955-47010-C2i202303-202305
W/O(LOCK),BLACK,TRIM1#,2#,4#
71940AHEADREST ASSY, REAR SEAT
main71940-76321-B0i202207-202302
WHITE ASH,TRIM1#
main71940-76321-B3i202302-202305
WHITE ASH,TRIM1#
main71940-76321-C6i202207-202302
BLACK,TRIM2#
main71940-76321-C7i202302-202305
BLACK,TRIM2#
main71940-76321-D6i202411
RED,TRIM3#
main71940-76321-E4i202207-202302
HAZEL,TRIM4#
main71940-76321-E6i202302-202305
HAZEL,TRIM4#
main71940-76321-J1i202207
BLUE,TRIM8#
71956BSUPPORT, REAR SEAT HEADREST
main71930-47050-C5i202303-202305
W(LOCK),BLACK,TRIM1#,2#,4#
main71930-47050-C5i202207
W(LOCK),BLACK,TRIM1#,2#,3#,4#,8#
main71931-47030-C4i202207
W/O(LOCK),BLACK,TRIM1#,2#,3#,4#,8#
main71931-47030-C4i202303-202305
W/O(LOCK),BLACK,TRIM1#,2#,4#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-76201-20i202302
BLACK,TRIM2#,3#
main71960-76201-20i202303-202305
BLACK,TRIM2#
main71960-76201-B0i202207-202302
WHITE ASH,TRIM1#
main71960-76201-B6i202302-202305
WHITE ASH,TRIM1#
main71960-76201-C9i202207-202302
BLACK,TRIM2#,3#
main71960-76201-E6i202207-202302
HAZEL,TRIM4#
main71960-76201-E9i202302-202305
HAZEL,TRIM4#
main71960-76201-J1i202207
BLUE,TRIM8#
72061ABASE SUB-ASSY, REAR SEATBACK LOCK, RH
main72061-76020i202207-202512
main72061-76031i202303-202305
72062BASE SUB-ASSY, REAR SEATBACK LOCK, LH
main72062-76020i202207-202305
72630CLOCK ASSY, REAR SEATBACK, RH
main72630-47050-B1i202207-202305
WHITE ASH,TRIM1#
sub72630-47050
main72630-47050-C2i202303-202305
BLACK,TRIM2#
sub72630-47050
main72630-47050-C2i202207
BLACK,TRIM2#,3#
sub72630-47050
main72630-47050-E5i202207-202305
HAZEL,TRIM4#
sub72630-47050
main72630-47050-J1i202207
BLUE,TRIM8#
sub72630-47050
72640ALOCK ASSY, REAR SEATBACK, LH
main72640-47050-B1i202207-202305
WHITE ASH,TRIM1#
sub72640-47050
main72640-47050-C2i202207
BLACK,TRIM2#,3#
sub72640-47050
main72640-47050-C2i202303-202305
BLACK,TRIM2#
sub72640-47050
main72640-47050-E5i202207-202305
HAZEL,TRIM4#
sub72640-47050
main72640-47050-J1i202207
BLUE,TRIM8#
sub72640-47050
72667BEZEL, REAR SEATBACK LOCK, UPPER
main72667-47010-B1i202207-202305
WHITE ASH,TRIM1#
main72667-47010-C1i202207
BLACK,TRIM2#,3#
main72667-47010-C1i202303-202305
BLACK,TRIM2#
main72667-47010-E4i202207-202305
HAZEL,TRIM4#
main72667-47010-J1i202207
BLUE,TRIM8#
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-76020-B5i202207-202305
WHITE ASH,TRIM1#
main72830-76020-C5i202207
BLACK,TRIM2#,3#
main72830-76020-C5i202303-202305
BLACK,TRIM2#
main72830-76020-E9i202207-202305
HAZEL,TRIM4#
main72830-76020-J5i202207-202512
BLUE,TRIM8#
72839SHIM, REAR SEAT ARMREST HINGE
main72839-22010i202207-202305
72868BCOVER, CENTER ARMREST HINGE
main72868-12080-C0i202303-202305
BLACK,TRIM1#,2#,4#
main72868-12080-C0i202207
BLACK,TRIM1#,2#,3#,4#,8#
73930AAIRBAG ASSY, REAR SEAT, RH
main73930-76010i202207-202208
sub73930-76011
main73930-76011i202208-202305
73931COVER, REAR SEAT AIRBAG DOOR, RH
main73931-76010i202207-202305
73940AAIRBAG ASSY, REAR SEAT, LH
main73940-76010i202207-202208
sub73940-76011
main73940-76011i202208-202305
73941COVER, REAR SEAT AIRBAG DOOR, LH
main73941-76010i202207-202305
6256648020GARNISH, REAR SEAT SIDE, LH
main62566-48020
7889960070BOLT, FRONT SEAT
main78899-60070
9010906372
main90109-06372
9011906951
main90119-06951
9011910990
main90119-10990
9020612064
main90206-12064
9020613005
main90206-13005
9151180820
main91511-80820
9155180835
main91551-80835
9167281025
main91672-81025
9356855014
main93568-55014

43 parts on this diagram · 4 diagrams in section
