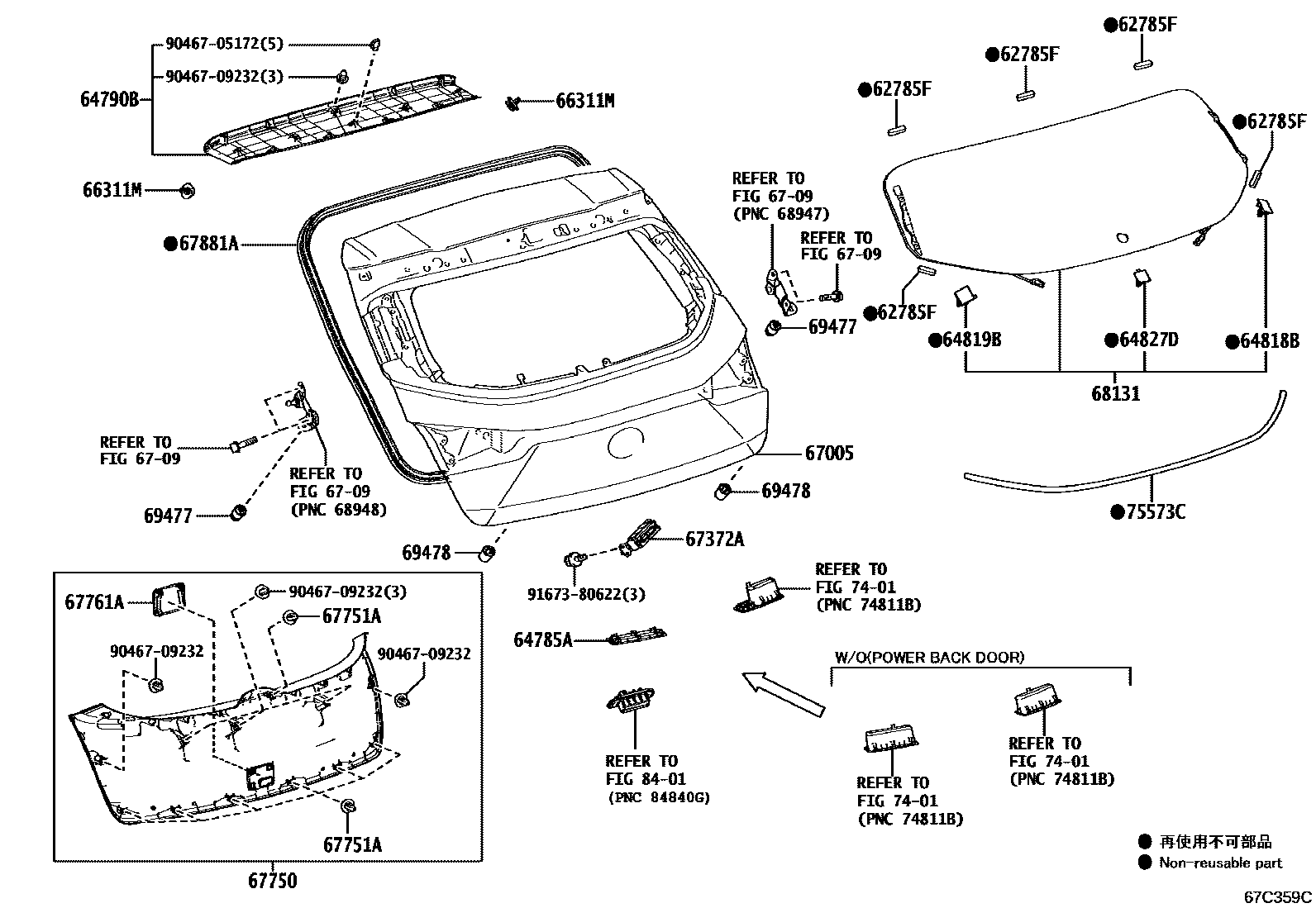

BACK DOOR PANEL & GLASS
62785FSPACER, BACK DOOR GLASS
64785ABASE, BACK DOOR TRIM
HANDS FREE POWER BACK DOOR-WITH,BLACK,TRIM1#,2#,4#
HANDS FREE POWER BACK DOOR-WITHOUT & WITH(POWER BACK DOOR),BLACK,TRIM1#,2#,4#
HANDS FREE POWER BACK DOOR-WITH,BLACK,TRIM1#,2#,3#,4#,8#
64790BPANEL ASSY, BACK DOOR TRIM, UPPER
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,3#,4#,8#
64818BSPACER, BACK DOOR GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
64827DCLIP, BACK WINDOW GLASS
66311MHOOK, ROPE
BLACK,TRIM1#,2#,3#,4#,8#
BLACK,TRIM1#,2#,4#
67005PANEL SUB-ASSY, BACK DOOR
HANDS FREE POWER BACK DOOR-WITH
HANDS FREE POWER BACK DOOR-WITHOUT & WITH(POWER BACK DOOR)
6709
67372AWEIGHT, BACK DOOR
67750BOARD ASSY, BACK DOOR TRIM
BLACK,TRIM1#,2#,3#,4#,8#
BLACK,TRIM1#,2#,4#
67751ACLIP(FOR BACK DOOR TRIM BOARD)
67761ACOVER, BACK DOOR TRIM
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,3#,4#,8#
68131GLASS, BACK DOOR
KOREA SPEC&ANTI-THEFT SYSTEM-WITH(ALARM & SIREN & *IS & TILE)
KOREA SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *INC & *GBS)
69477CUSHION, BACK DOOR UPPER STOPPER
HANDS FREE POWER BACK DOOR-WITH
HANDS FREE POWER BACK DOOR-WITHOUT & WITH(POWER BACK DOOR)
69478CUSHION, BACK DOOR LOWER STOPPER
7401
75573CMOULDING, BACK WINDOW, OUTSIDE
8401
9046705172
main90467-05172
9046709232
main90467-09232
9167380622
main91673-80622
23 parts on this diagram · 1 diagram in section
