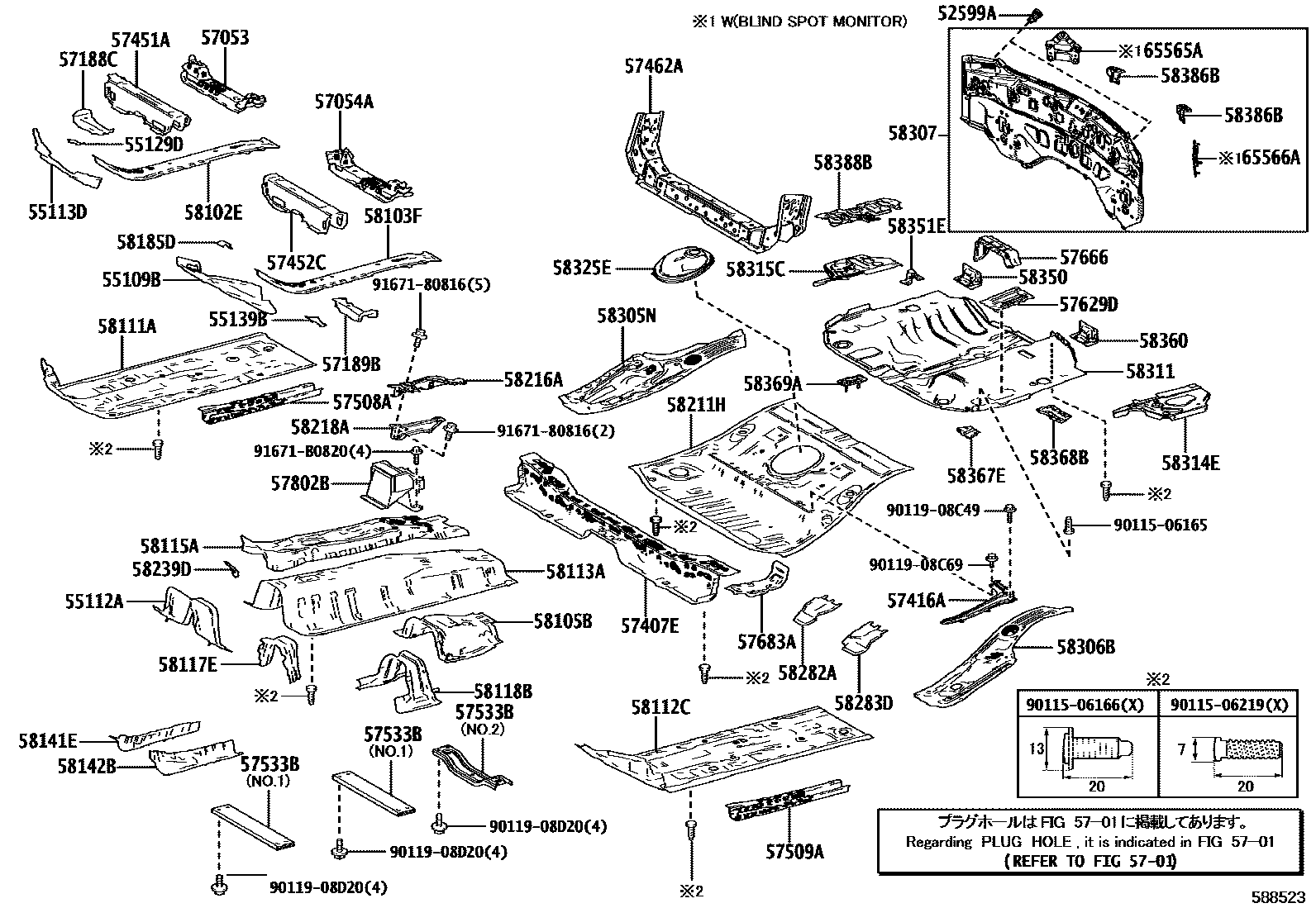

FLOOR PAN & LOWER BACK PANEL
52599ASTOPPER, REAR BUMPER, UPPER
55109BBRACE SUB-ASSY, DASH TO FRAME, LH
55112APANEL, DASH, NO.2
55113DPANEL, DASH, LOWER RH
55129DCOVER, DASH PANEL HOLE, RH
55139BCOVER, DASH PANEL HOLE, LH
5701
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57188CREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH
57189BREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH
57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS
57416ARAIL SUB-ASSY, FLOOR SIDE, REAR LH
57451AMEMBER, FRONT FLOOR CROSS, RH
57452CMEMBER, FRONT FLOOR CROSS, LH
57462AMEMBER, CENTER FLOOR CROSS, NO.2
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57533BBRACE, FRONT FLOOR, CENTER
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
57629DPLATE, REAR FLOOR SIDE MEMBER, LH
57666PANEL, LOWER BACK SIDE, LH
57683ABRACKET, FUEL TANK MOUNTING, NO.1
57802BREINFORCE SUB-ASSY, REAR FLOOR SIDE MEMBER
58102EREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
58103FREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58111PAN, FRONT FLOOR
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58115AREINFORCEMENT, FRONT FLOOR PANEL
58117EPANEL, FRONT FLOOR SUB COVER
58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2
58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH
58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH
58185DPLATE, ACCELERATOR PEDAL MOUNTING
58211HPAN, CENTER FLOOR
58216APANEL, SHIFT LEVER HOUSING, NO.1
58218APANEL, SHIFT LEVER HOUSING, NO.2
58239DBRACKET, CABLE CLAMP
58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH
58305NEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH
58306BEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58314EEXTENSION, REAR FLOOR SIDE PANEL, LH
58315CEXTENSION, REAR FLOOR SIDE PANEL, RH
58325ECOVER, REAR FLOOR SERVICE HOLE
58350REINFORCEMENT ASSY, REAR FLOOR PANEL, RH
58351EBRACKET, SPARE WHEEL CLAMP
58360REINFORCEMENT ASSY, REAR FLOOR PANEL, LH
58367EBRACKET, FUEL TUBE, NO.1
58368BBRACKET, FUEL TUBE, NO.2
58369ABRACKET, FUEL TUBE, NO.3
58386BBRACKET, REAR BUMPER COVER, NO.2
58388BBRACKET, PLATE REAR FLOOR
65565APATCH, SIDE PANEL REAR END, RH
65566APATCH, SIDE PANEL REAR END, LH
9011506165
9011506166
9011506219
9011908C49
9011908C69
9011908D20
9167180816
91671B0820
68 parts on this diagram · 9 diagrams in section
