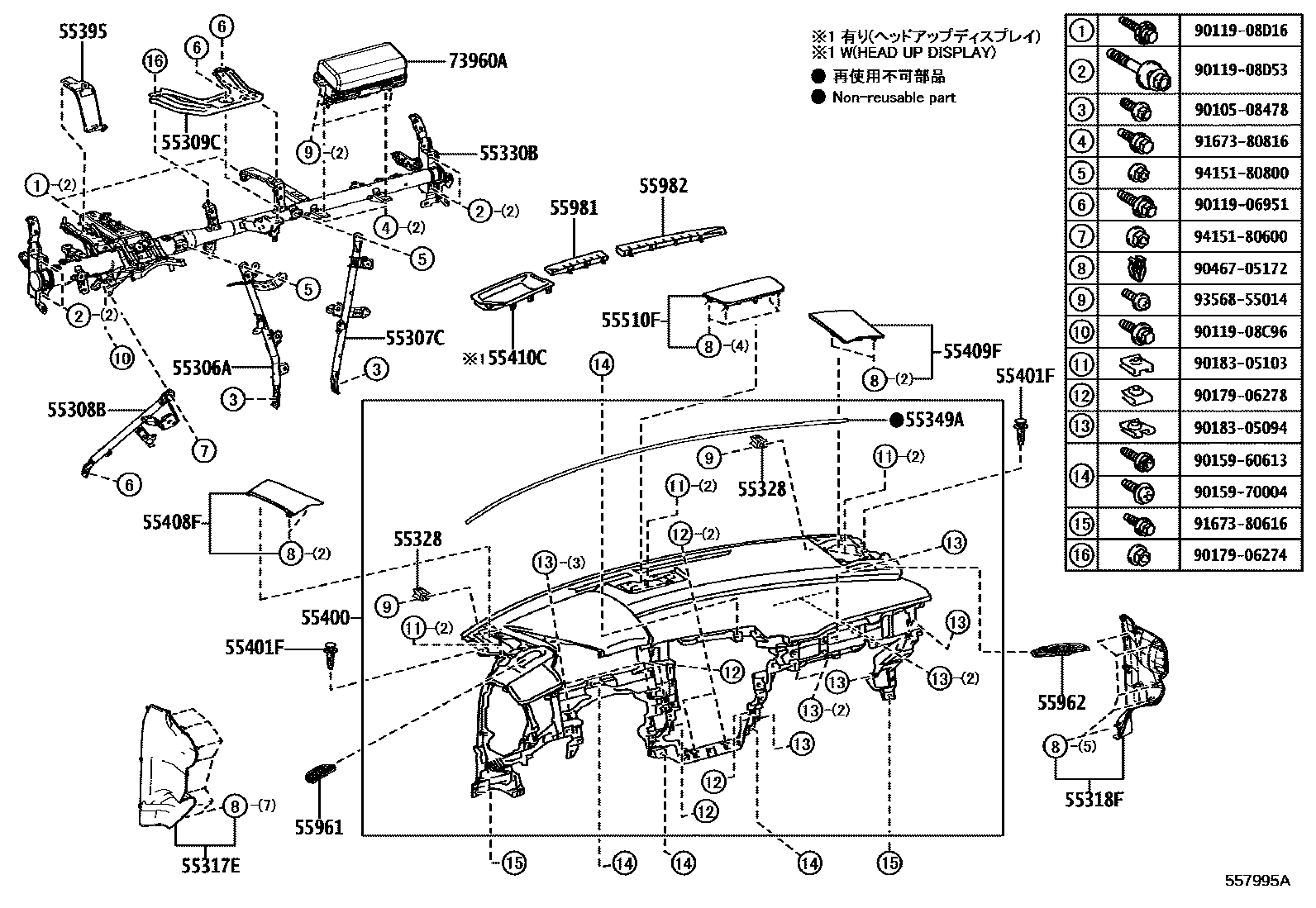

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-76060iKMA10202207-202305

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-76050iKMA10202207-202305

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-76010iKMA10202207-202305

55309CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, CENTER

main55309-76030iKMA10202207-202305

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-76120-C0iMZAH10,15202207

BLACK,TRIM1#,2#,3#,4#,8#

main55317-76120-C0iKMA10202303-202305

BLACK,TRIM1#,2#,4#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-76130-C0iKMA10202303-202305

BLACK,TRIM1#,2#,4#

main55318-76130-C0iMZAH10,15202207

BLACK,TRIM1#,2#,3#,4#,8#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-76090iKMA10202207-202305

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-76100iMZAH10,15202207-202305

main55330-76110iMZAH11,16202207

HEAD UP DISPLAY-WITH

55349ACUSHION, INSTRUMENT PANEL

main55349-76030iMZAH10,15202207-202305

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-12020iKMA10202207-202305

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-76050-C1iKMA10202303-202305

SOFT BLACK/LT.GRAY,TRIM1#,2#

main55400-76050-C1iMZAH11,16202207

SOFT BLACK/LT.GRAY,TRIM1#,2#,8#

main55400-76050-C2iKMA10202207-202305

SOFT BLACK/HAZEL,TRIM42

main55400-76050-C2iMZAH11,16202401

SOFT BLACK/HAZEL,TRIM4#

main55400-76050-C3iKMA10202207-202305

SOFT BLACK/MAUVE,TRIM43

main55400-76060-C1iMZAH11,16202401

F SPORT,SOFT BLACK/RED,TRIM2#,3#

main55400-76060-C1iMZAH10,15202207

F SPORT,SOFT BLACK/RED,TRIM21,22,3#

main55400-76060-C2iMZAH10,15202207

F SPORT,SOFT BLACK/LT.GRAY,TRIM1#,20,8#

main55400-76070-C1iMZAH11,16202401

F SPORT(DESIGN)&HEAD UP DISPLAY-WITH,SOFT BLACK/LT.GRAY,TRIM1#,2#,8#

main55400-76070-C1iMZAH11,16202401

PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,SOFT BLACK/LT.GRAY,TRIM1#,2#,8#

main55400-76070-C1iMZAH11,16202401

LUXURY PACKAGE&HEAD UP DISPLAY-WITH,SOFT BLACK/LT.GRAY,TRIM1#,2#,8#

main55400-76070-C1iMZAH10,15202207

HEAD UP DISPLAY-WITH,SOFT BLACK/LT.GRAY,TRIM1#,2#,8#

main55400-76070-C2iMZAH11,16202401

LUXURY PACKAGE&HEAD UP DISPLAY-WITH,SOFT BLACK/HAZEL,TRIM4#

main55400-76070-C2iMZAH10,15202207

HEAD UP DISPLAY-WITH,SOFT BLACK/HAZEL,TRIM42

main55400-76070-C2iMZAH11,16202401

PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,SOFT BLACK/HAZEL,TRIM4#

main55400-76070-C2iMZAH11,16202401

F SPORT(DESIGN)&HEAD UP DISPLAY-WITH,SOFT BLACK/HAZEL,TRIM4#

main55400-76070-C3iMZAH10,15202207

HEAD UP DISPLAY-WITH,SOFT BLACK/MAUVE,TRIM43

main55400-76080-C1iMZAH11,16202401

F SPORT&HEAD UP DISPLAY-WITH,SOFT BLACK/RED,TRIM2#,3#

main55400-76080-C1iMZAH10,15202207

F SPORT&HEAD UP DISPLAY-WITH,SOFT BLACK/RED,TRIM21,22,3#

main55400-76080-C2iMZAH10,15202207

F SPORT&HEAD UP DISPLAY-WITH,SOFT BLACK/LT.GRAY,TRIM1#,20,8#

55401FCLIP(FOR SAFETY PAD)

main52161-16010iKMA10202207-202305

sub52161-0K040

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-76040-C0iKMA10202303-202305

BLACK,TRIM1#,2#,4#

main55408-76040-C0iMZAH11,16202207

BLACK,TRIM1#,2#,3#,4#,8#

main55408-76050-C0iKMA10202303-202305

LUXURY PACKAGE&AUDIO-EMV & 13SPEAKER,BLACK,TRIM1#,2#,4#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-76050-C0iMZAH10,15202207

BLACK,TRIM1#,2#,3#,4#,8#

main55409-76050-C0iKMA10202303-202305

BLACK,TRIM1#,2#,4#

main55409-76060-C0iKMA10202303-202305

LUXURY PACKAGE&AUDIO-EMV & 13SPEAKER,BLACK,TRIM1#,2#,4#

55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH

main55410-76070-C0iMZAH10,15202207

HEAD UP DISPLAY-WITH,BLACK,TRIM1#,2#,3#,4#,8#

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55510-76050-C0iMZAH11,16202207

BLACK,TRIM1#,2#,3#,4#,8#

main55510-76050-C0iKMA10202303-202305

BLACK,TRIM1#,2#,4#

main55510-76060-C0iMZAH10,15202207

AUDIO-EMV & 10SPEAKER,BLACK,TRIM1#,2#,3#,4#

main55510-76070-C0iKMA10202303-202305

LUXURY PACKAGE&AUDIO-EMV & 13SPEAKER,BLACK,TRIM1#,2#,4#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-76010-C0iMZAH10,15202207

BLACK,TRIM1#,2#,3#,4#,8#

main55961-76010-C0iKMA10202303-202305

BLACK,TRIM1#,2#,4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-76010-C0iKMA10202303-202305

BLACK,TRIM1#,2#,4#

main55962-76010-C0iMZAH10,15202207

BLACK,TRIM1#,2#,3#,4#,8#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-76090-C0iKMA10202303-202305

BLACK,TRIM1#,2#,4#

main55981-76090-C0iMZAH10,15202207

BLACK,TRIM1#,2#,3#,4#,8#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-76050-C0iMZAH10,15202207

BLACK,TRIM1#,2#,3#,4#,8#

main55982-76050-C0iKMA10202303-202305

BLACK,TRIM1#,2#,4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-76030iMZAH11,16202207-202305

9010508478

main90105-08478

9011906951

main90119-06951

9011908C96

main90119-08C96

9011908D16

main90119-08D16

9011908D53

main90119-08D53

9015960613

main90159-60613

9015970004

main90159-70004

9017906274

main90179-06274

9017906278

main90179-06278

9018305094

main90183-05094

9018305103

main90183-05103

9046705172

main90467-05172

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

38 parts on this diagram · 4 diagrams in section
