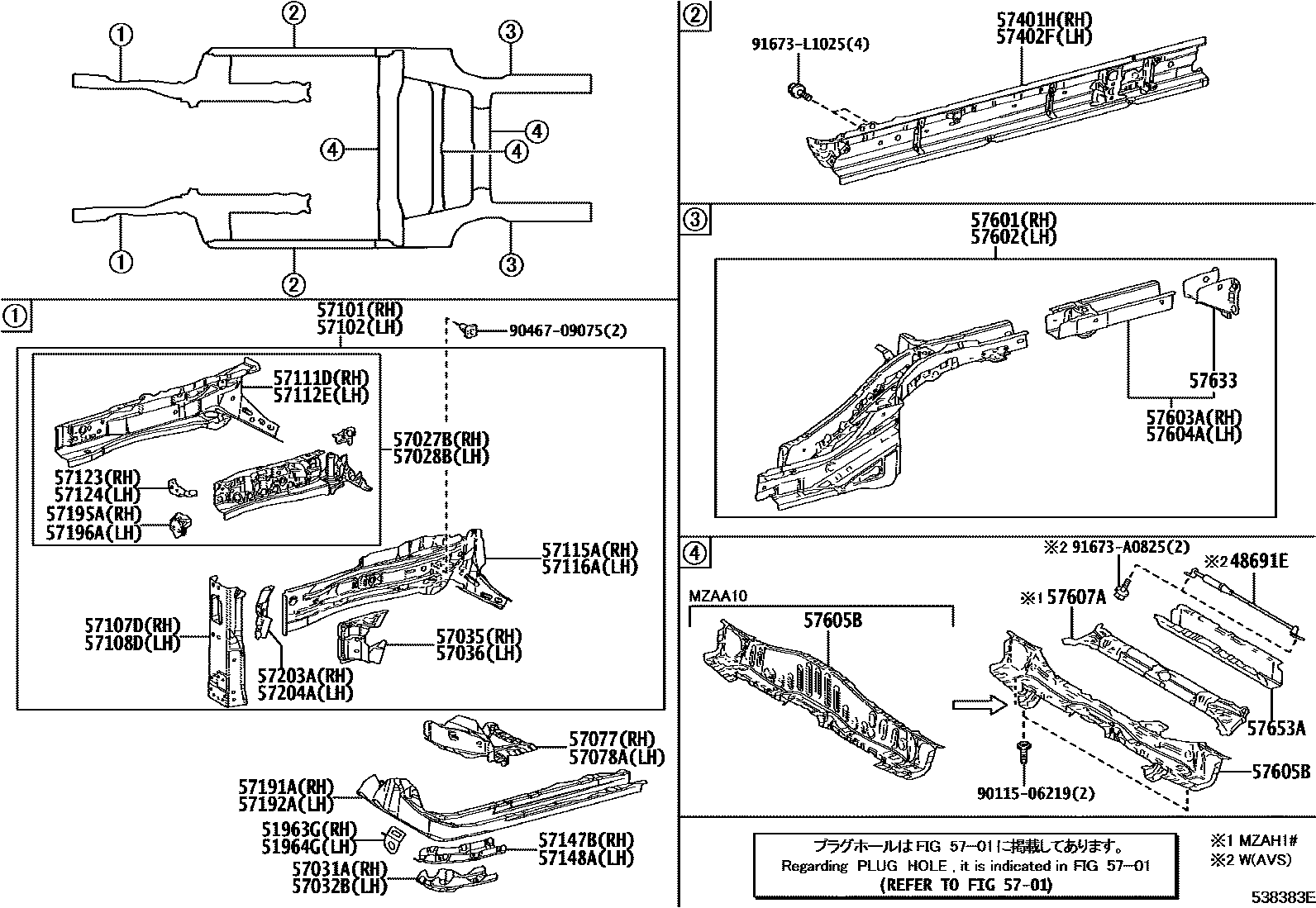

FLOOR SIDE MEMBER

0001 1 0002 1

48691EDAMPER, SUSPENSION TOWER

main48691-76050iKMA10¥26,200202303-202305

51963GHOOK, TRANSPORT, FRONT RH

main51093-10020iKMA10¥1,040202207-202305

51964GHOOK, TRANSPORT, FRONT LH

main51094-10010iKMA10¥1,040202207-202305

5701

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-47021iMZAH10,15¥15,800202207

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-47040iMZAH10,15¥14,500202207

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-47010iMZAH10,15¥3,820202207

main57031-76010iKMA10¥3,420202303-202305

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-47010iMZAH10,15¥3,820202207

main57032-76010iKMA10¥3,420202303-202305

57035PANEL SUB-ASSY, FRONT STEP, RH

main57035-47021iKMA10¥2,470202207-202305

57036PANEL SUB-ASSY, FRONT STEP, LH

main57036-47031iKMA10¥2,640202207-202305

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-47041iKMA10¥4,110202207-202305

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-47041iKMA10¥4,110202207-202305

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-10910iKMA10¥30,500202207-202305

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-10910iKMA10¥29,200202207-202305

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-10020iKMA10¥5,300202207-202305

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-10020iKMA10¥5,300202207-202305

57111DMEMBER, FRONT SIDE, INNER RH

main57111-47030iKMA10¥9,200202207-202305

57112EMEMBER, FRONT SIDE, INNER LH

main57112-47030iKMA10¥9,200202207-202305

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-47901iKMA10¥6,600202207-202305

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-47902iKMA10¥6,600202207-202305

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-47020iKMA10¥1,220202207-202305

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-47020iKMA10¥1,220202207-202305

57147BPLATE, FRONT SIDE MEMBER, REAR RH

main57147-47010iMZAH11,16¥2,640202207

57148APLATE, FRONT SIDE MEMBER, REAR LH

main57148-47010iMZAH10,15¥2,640202207

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-47031iMZAH10,15¥10,500202207

main57191-76010iKMA10¥8,100202303-202305

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-47031iMZAH10,15¥10,500202207

main57192-76010iKMA10¥8,100202303-202305

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-47010iMZAH10,15¥1,030202207-202305

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-47030iKMA10¥1,030202207-202305

57203AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57203-47011iKMA10¥2,470202207-202305

57204AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57204-47011iKMA10¥2,470202207-202305

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-76011iMZAH10,15¥17,100202207

main57401-76021iKMA10¥17,100202303-202305

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-76021iMZAH10,15¥17,100202207

main57402-76031iKMA10¥17,100202303-202305

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-76900iMZAH10,15¥44,700202207

main57601-76901iKMA10¥44,800202303-202305

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-76900iMZAH10,15¥44,700202207

main57602-76901iKMA10¥44,800202303-202305

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-76010iKMA10¥10,200202207-202305

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-76010iMZAH10,15¥10,200202207-202305

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-47080iMZAH10,15¥8,100202207

main57605-76020iKMA10¥14,200202303-202305

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-47020iMZAH10,15¥4,750202207

57633EXTENSION, REAR FLOOR SIDE MEMBER

main57633-76010iKMA10¥3,180202207-202305

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-47040iMZAH10,15¥6,500202207

9011506219

main90115-06219¥80

9046709075

main90467-09075¥110

91673A0825

main91673-A0825¥100

91673L1025

main91673-L1025¥120

44 parts on this diagram · 2 diagrams in section
