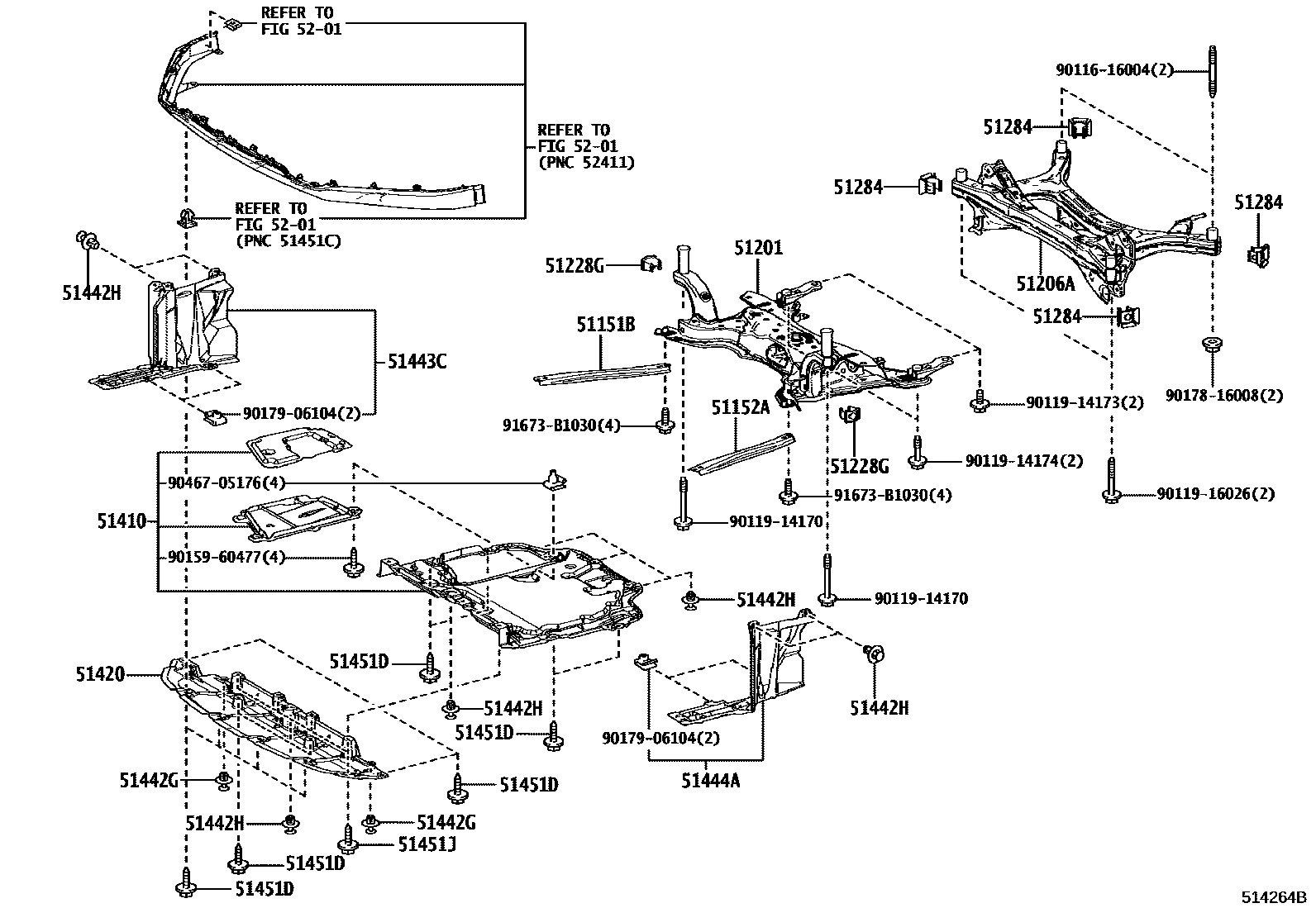

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1

51151BREINFORCEMENT, SIDE RAIL, NO.1 RH

main51151-10010iKMA10202207-202305

51152AREINFORCEMENT, SIDE RAIL, NO.1 LH

main51151-10010iMZAH10,15202207-202305

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-76032iMZAH11,16202207

main51201-76050iKMA10202303-202305

main51201-76050iMZAH10,15202207

F SPORT

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-76010iMZAH10202207-202208

sub51206-76011

main51206-76011iMZAH11202208

main51206-76021iMZAH15202207-202208

sub51206-76022

main51206-76022iMZAH15202208

main51206-76031iKMA10202303-202305

main51206-76040iMZAH16202401

51228GPLATE, FRONT SUSPENSION MEMBER

main51228-47010iKMA10202207-202305

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-47010iMZAH1#202207-202208

51410COVER ASSY, ENGINE UNDER, NO.1

main51410-76100iMZAH10,15202207

51420COVER ASSY, ENGINE UNDER, NO.2

main51420-76010iMZAH10,15202207

51442GCLIP, ENGINE UNDER COVER, NO.1

main90467-07214iMZAH10,15202207

51442HCLIP, ENGINE UNDER COVER, NO.2

main90467-07220iMZAH10,15202207

51443CCOVER, ENGINE UNDER, REAR RH

main51443-10020iMZAH10,15202207

51444ACOVER, ENGINE UNDER, REAR LH

main51444-10020iMZAH10,15202207

51451DSCREW, NO.1

main90159-60477iKMA10202207-202305

51451JBOLT, NO.1

main90119-06A13iKMA10202207-202305

5201

9011616004

main90116-16004

9011914170

main90119-14170

9011914173

main90119-14173

9011914174

main90119-14174

9011916026

main90119-16026

9015960477

main90159-60477

9017816008

main90178-16008

9017906104

main90179-06104

9046705176

main90467-05176

91673B1030

main91673-B1030

25 parts on this diagram · 3 diagrams in section
