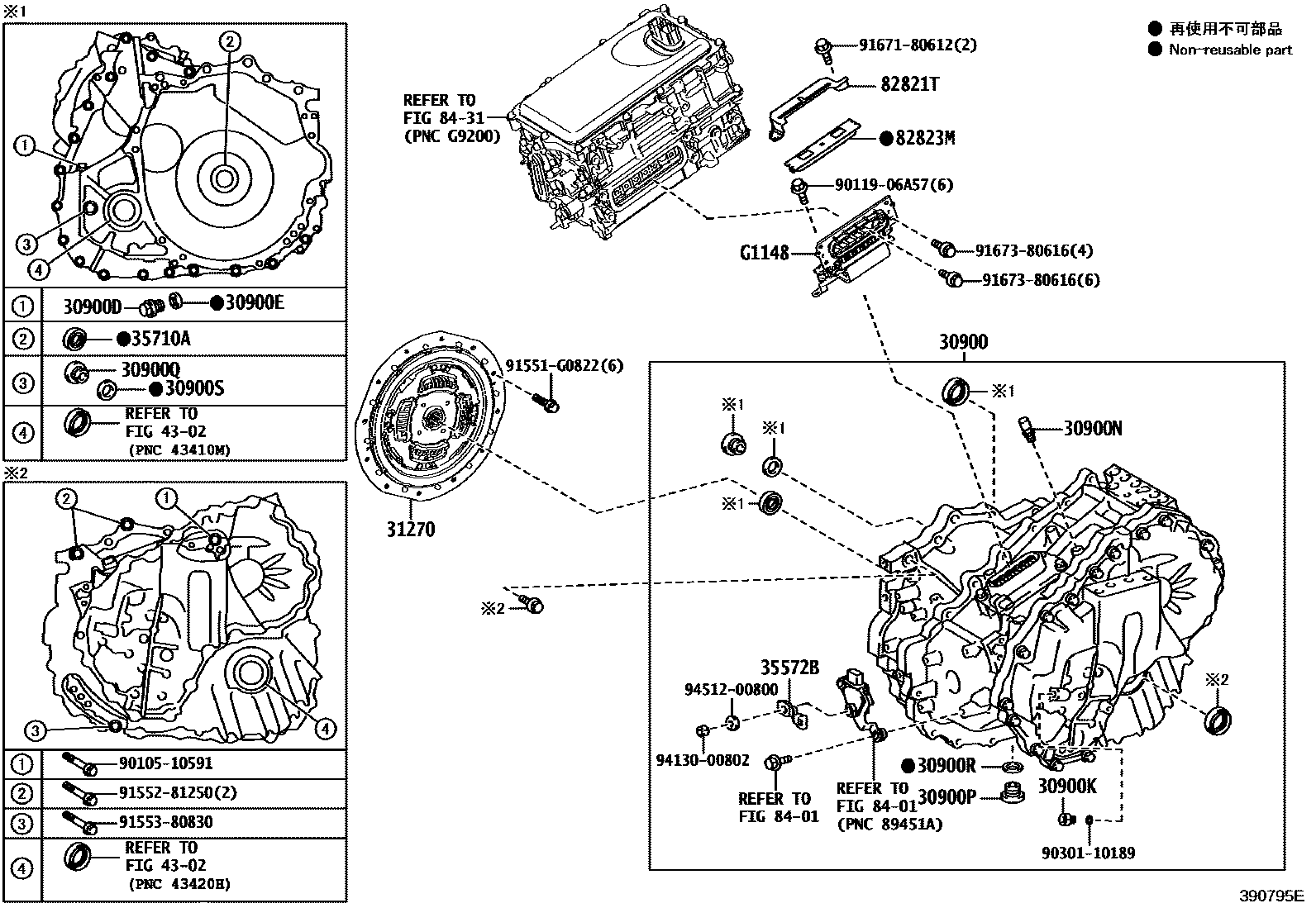

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1REAR TRACTION MOTOR 0003 1 0004 1 0005 1MOTOR MOUNTING 0006 1 0007 1REAR TRACTION MOTOR

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-10040iMZAH11,16202401-202411

W/O(LABEL)

main30900-76010iMZAH10,15202207

main30970-10010iMZAH11,16202411

W(LABEL)

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iKMA10202207-202305

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iKMA10202207-202305

30900KCONNECTOR, TUBE(FOR TRANSAXLE HOUSING)

main90404-14030iKMA10202303

main90404-16031iMZAH10,15202207

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03179iKMA10202303

main90930-03201iMZAH11,16202207

30900PPLUG, DRAIN(HEV)

main90341-18016iMZAH10,15202207

30900QPLUG, FILLER(HEV)

main90341-18016iMZAH10,15202207

main90341-18090iMZAH11,16202401

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iMZAH10,15202207

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iMZAH10,15202207

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-12010iMZAH10,15202207

main31270-63010iMZAH11,16202401

35572BLEVER, TRANSMISSION, OUTER

main35572-33070iMZAH10,15202207

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-27011iMZAH10,15202207

main90311-27012iMZAH11,16202401

4302

82821TCOVER, CONNECTOR

main82821-47240iMZAH10,15202207

main82821-47510iMZAH16202401

main82821-76240iKMA10202303-202305

82823MCAP, TERMINAL

main82823-28110iMZAH11,16202401

main82823-47040iMZAH10,15202207

8401

8431

G1148CABLE, MOTOR

mainG114833050iMZAH10,15202207

mainG114863010iMZAH11,16202401-202409

mainG114863011iMZAH11,16202410

mainG114876010iKMA10202303-202305

9010510591

main90105-10591

9011906A57

main90119-06A57

9030110189

main90301-10189

91551G0822

main91551-G0822

9155281250

main91552-81250

9155380830

main91553-80830

9167180612

main91671-80612

9167380616

main91673-80616

9413000802

main94130-00802

9451200800

main94512-00800

28 parts on this diagram · 7 diagrams in section
