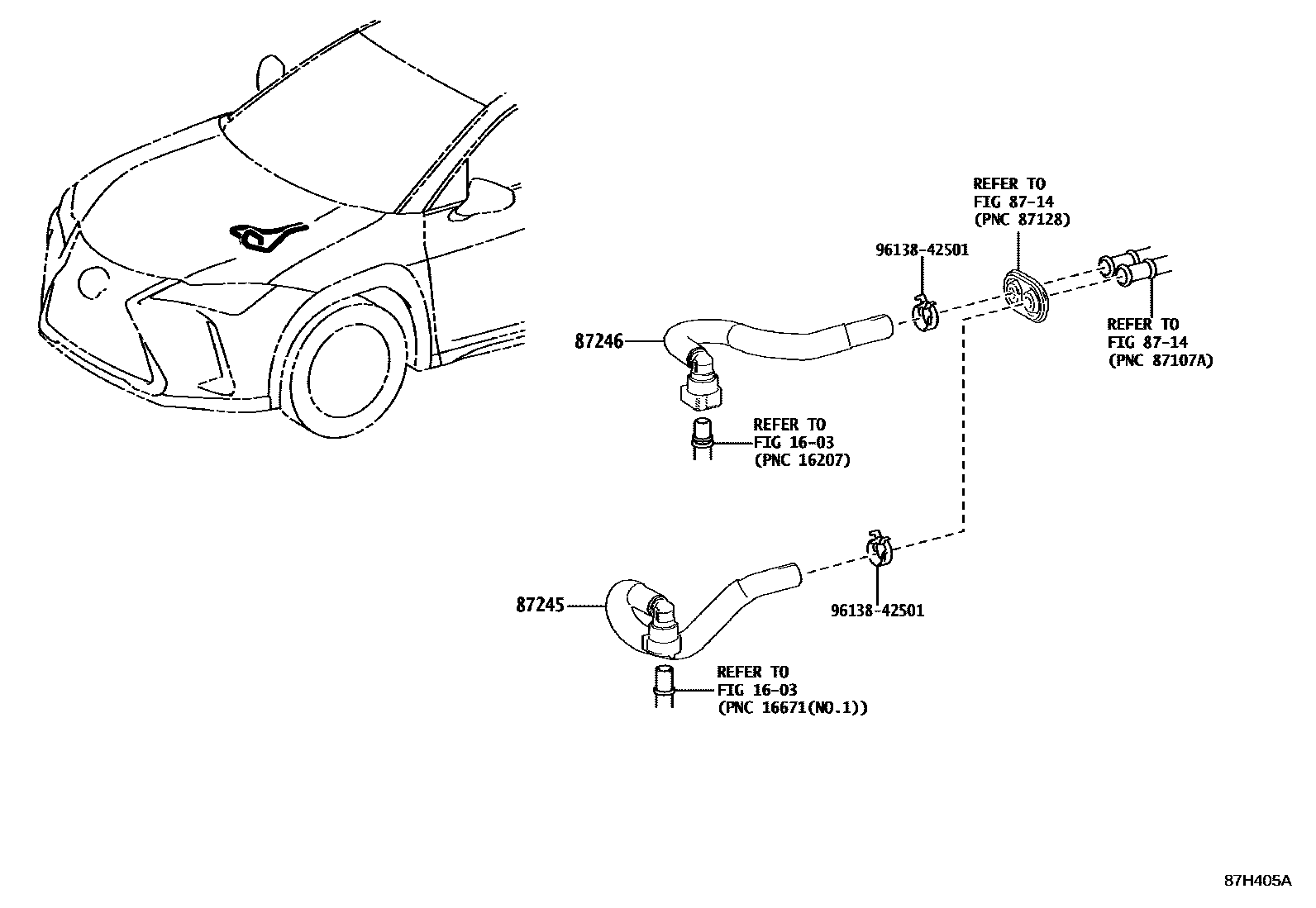

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1603

8714

87245HOSE, HEATER WATER, INLET

main87209-12640iMZAA10201810-202207

87246HOSE, HEATER WATER, OUTLET

main87209-12710iMZAA10201810-202207

9613842501

main96138-42501

5 parts on this diagram · 2 diagrams in section
