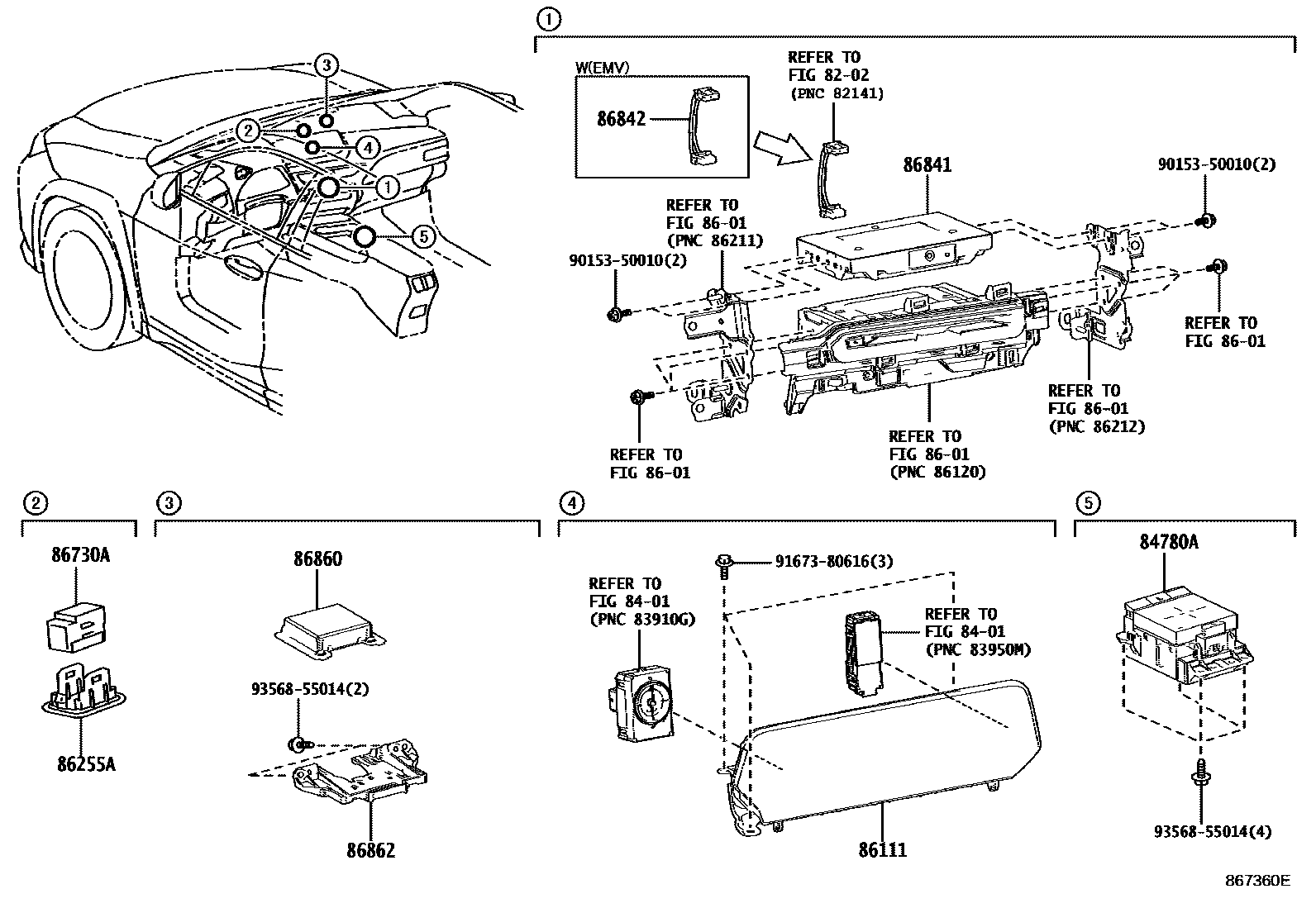

NAVIGATION & FRONT MONITOR DISPLAY

8202

8401

84780ACONTROLLER ASSY, REMOTE OPERATION

main84780-76180iMZAA10,MZAH1#201810-202108

main84780-76181iMZAA10,MZAH1#202108-202207

8601

86111MULTI-DISPLAY

main86111-76090iMZAA10,MZAH1#201810-202207

PANASONIC

86255ACASE, MICROPHONE, NO.1

main86255-78010-A1iMZAA10,MZAH1#201810-202207

WHITE,TRIM4#,8#

main86255-78010-C1iMZAA10,MZAH1#201810-202207

BLACK,TRIM0#,1#,2#,3#

86730AMICROPHONE ASSY, TELEPHONE

main86730-11010iMZAA10,MZAH1#¥7,100201810-202010

sub86730-48110¥6,400

main86730-48110iMZAA10,MZAH1#¥6,400202010-202207

86841COMPUTER, NAVIGATION

main86840-48160

main86840-48161

main86840-48162

main86840-48163

main86840-48164

main86840-48165

main86840-33201

main86840-33202

main86840-33203

86842WIRE, NAVIGATION, NO.1

main86842-76320¥2,610

86860ANTENNA ASSY, NAVIGATION

main86880-47090iMZAA10,MZAH1#¥14,300201810-201910

main86880-52020iMZAA10,MZAH1#¥8,500201910-202207

86862BRACKET, NAVIGATION ANTENNA

main86862-42010iMZAA10,MZAH1#¥940202110-202207

main86862-58020iMZAA10,MZAH1#¥940201810-202109

9015350010

main90153-50010¥70

9167380616

main91673-80616¥60

9356855014

main93568-55014¥70

14 parts on this diagram · 1 diagram in section
