HEV INVERTER

0001 1FRONT 0002 1REAR 0003 1

3901

8202

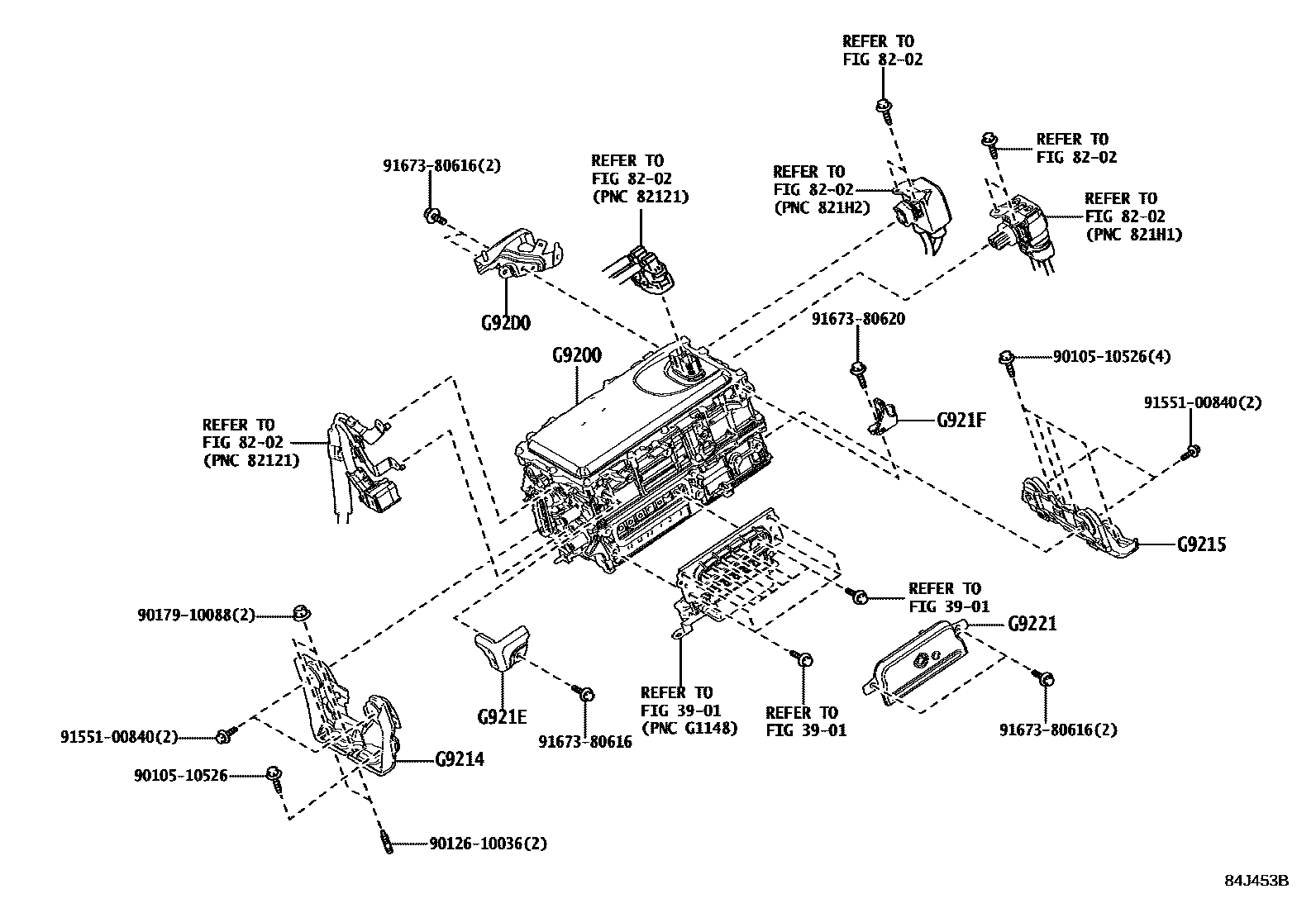

G9200INVERTER ASSY, W/CONVERTER

mainG920079045iMZAH10201811-202204

subG9200-79046

mainG920079046iMZAH10202205-202207

mainG920079055iMZAH15201811-202205

subG9200-79056

mainG920079056iMZAH15202205-202207

G9214BRACKET, INVERTER, NO.1

mainG921433040iMZAH1#201811-202207

G9215BRACKET, INVERTER, NO.2

mainG921533040iMZAH1#201811-202207

G921EPROTECTOR, INVERTER

mainG921E47010iMZAH1#201811-202207

G921FPROTECTOR, INVERTER, NO.2

mainG921F76010iMZAH1#201811-202207

G9221COVER, INVERTER

mainG902247050iMZAH1#201811-202207

G92D0PROTECTOR ASSY, HYBRID INVERTER

mainG92D076010iMZAH1#201811-202207

9010510526

main90105-10526

9012610036

main90126-10036

9017910088

main90179-10088

9155100840

main91551-00840

9167380616

main91673-80616

9167380620

main91673-80620

15 parts on this diagram · 3 diagrams in section
