84540SWITCH ASSY, NEUTRAL START

main84540-12240iMZAA10201810-202207

89419BSENSOR, SHIFT STROKE

main89419-12010iMZAA10201810-201904

sub89419-12011

main89419-12011iMZAA10201905-202108

main89419-12011iMZAA10202108-202207

MARK=CS1

main89419-K2010iMZAA10202108-202207

MARK=HK-82

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMZAA10,MZAH1#201810-202207

89467BSENSOR, AIR FUEL RATIO

main89467-12280iMZAA10,MZAH1#201810-202207

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-76010iMZAA10,MZAH1#201810-202207

89491SENSOR, ENGINE OIL LEVEL

main89491-33051iMZAA10,MZAH1#201810-202204

sub89491-33052

main89491-33052iMZAA10,MZAH1#202205-202207

89535BCOMPUTER, TRANSMISSION CONTROL

main89535-76030iMZAA10201810-201911

sub89535-76031

main89535-76031iMZAA10201912-202207

89539MBRACKET, TRANSMISSION CONTROL COMPUTER, NO.1

main89539-12070iMZAA10201810-202207

89539NBRACKET, TRANSMISSION CONTROL COMPUTER, NO.2

main89539-12080iMZAA10201810-202207

89615SENSOR, KNOCK CONTROL

main89615-20090iMZAA10,MZAH1#201810-202207

8271510330BRACKET,WIRING HARNESS CLAMP

main82715-10330

8271512V90BRACKET,WIRING HARNESS CLAMP

main82715-12V90

8271512X50BRACKET,WIRING HARNESS CLAMP

main82715-12X50

8271547690BRACKET,WIRING HARNESS CLAMP

main82715-47690

8272920040

main82729-20040

9011906A12

main90119-06A12

9011906A23

main90119-06A23

9015350015

main90153-50015

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

9161160618

main91611-60618

9165140620

main91651-40620

9167180616

main91671-80616

9167380616

main91673-80616

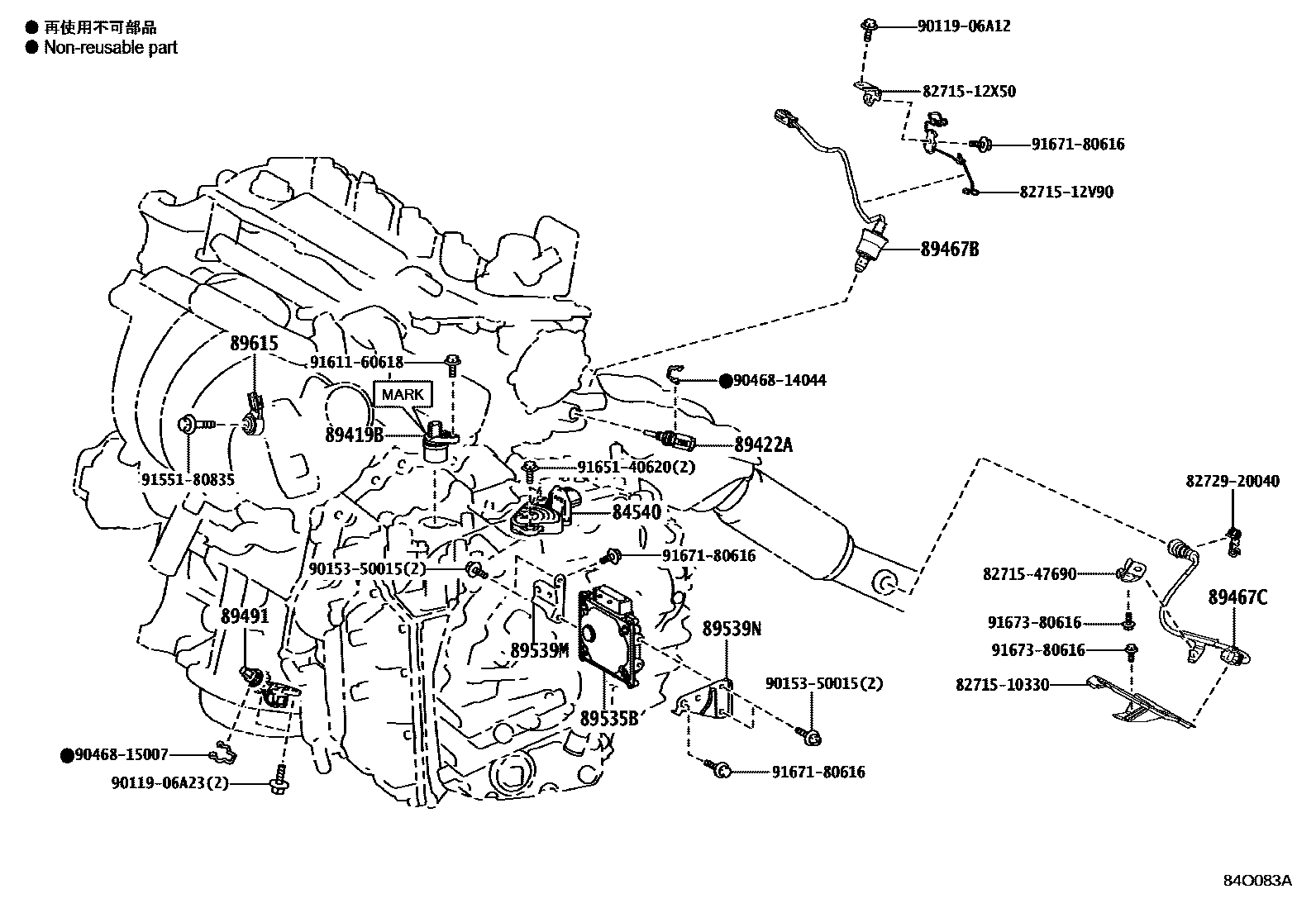

25 parts on this diagram · 15 diagrams in section
