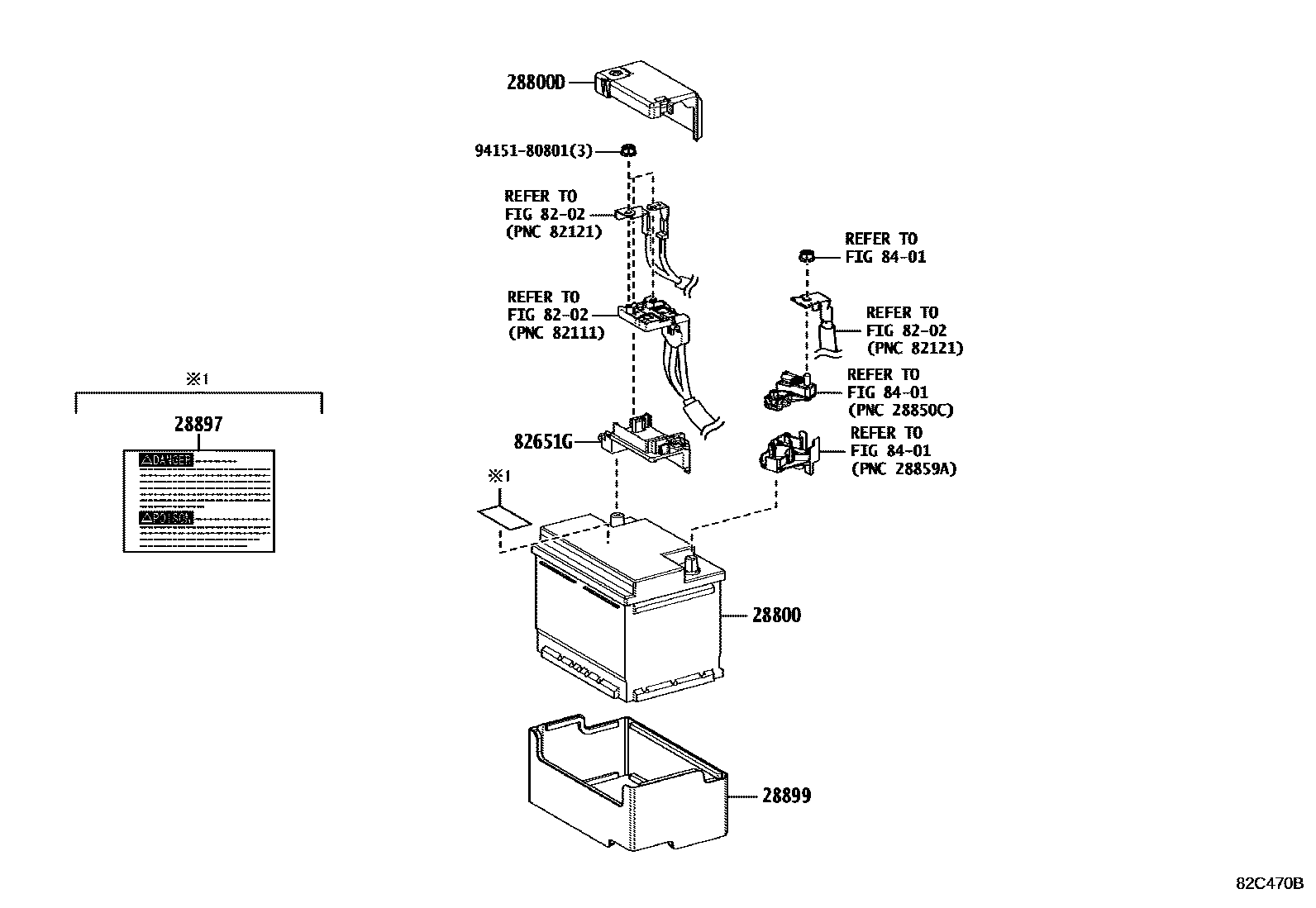

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY

28800BATTERY

main28800-21220iM20AFXS..MZAH1#201811-202207

LN1

sub28800-21221

main28800-38160iM20AFKS..MZAA10201810-202207

LN3

sub28800-38161

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82621-10010iM20AFKS..MZAA10201810-202207

main82621-12030iM20AFXS..MZAH1#201811-202207

28897PLATE, BATTERY CAUTION

main28897-24020iM20#..MZAA10,MZAH1#201811-202207

CANADA SPEC

main28897-46020iM20AFKS..MZAA10201810-201811

CANADA SPEC

28899INSULATOR, BATTERY

main28899-24020iM20AFKS..MZAA10201810-202207

8202

82651GTERMINAL, BATTERY POSITIVE

main82651-10010iMZAA10201810-202207

8401

9415180801

main94151-80801

8 parts on this diagram · 4 diagrams in section
