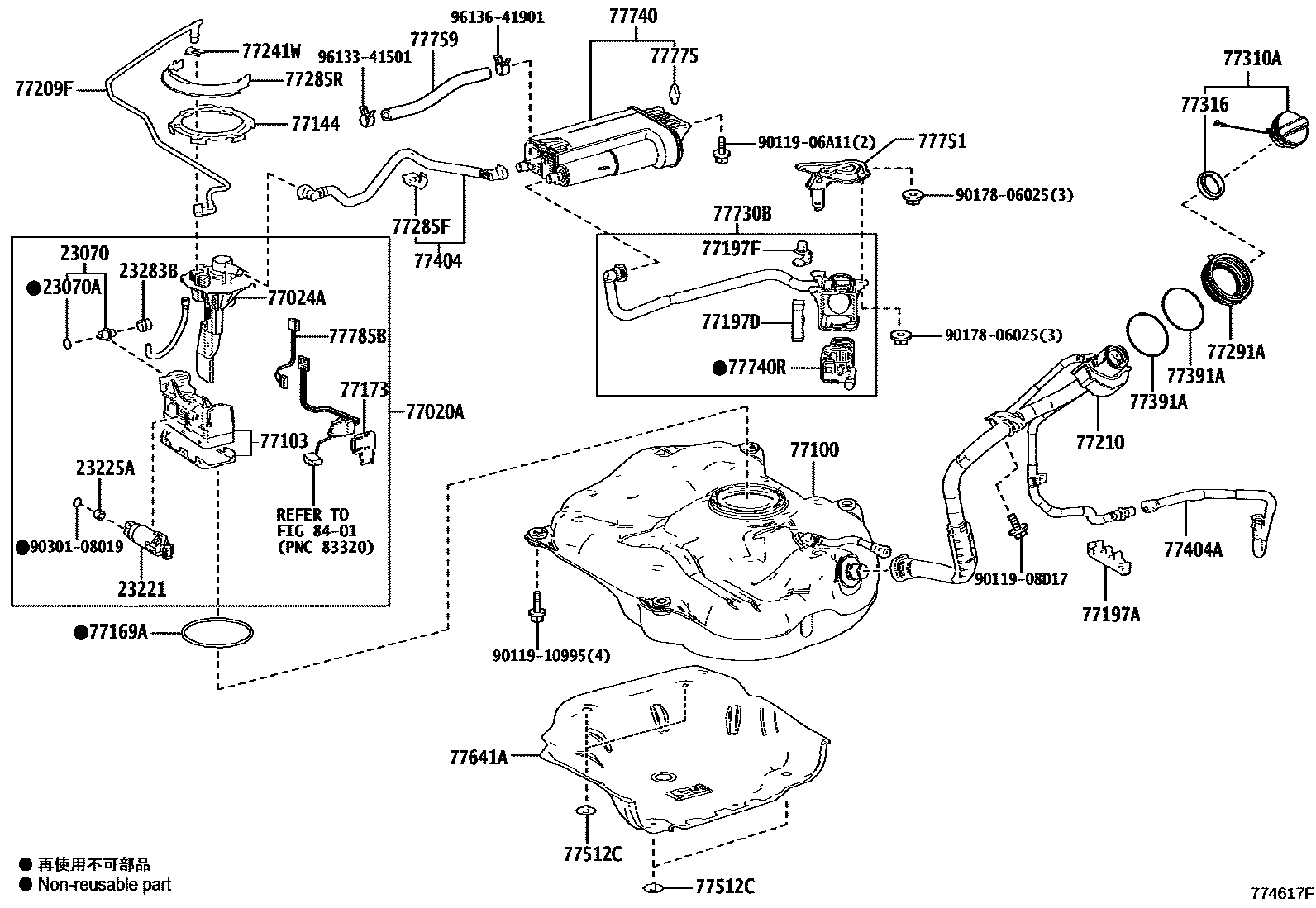

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
23070ARING, O, NO.1(FOR FUEL MAIN VALVE)
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23283BHOLDER, FUEL PRESSURE REGULATOR
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77173BRACKET, FUEL GAGE
77197ACLAMP, EVAPORATION VENT TUBE, NO.2
77197DCLAMP, EVAPORATION VENT TUBE, NO.2
77197FCLAMP, EVAPORATION VENT TUBE, NO.2
77210PIPE ASSY, FUEL TANK FILLER
77285FCLAMP, FUEL TUBE, NO.1
77291ASHIELD, FUEL TANK FILLER PIPE
77316GASKET, FUEL TANK CAP
77391ARING, FUEL INLET BOX
77404HOSE SUB-ASSY, FUEL TANK VENT
77404AHOSE SUB-ASSY, FUEL TANK VENT
77512CBRACKET, FUEL TANK
77641APROTECTOR, FUEL TANK, NO.1
77730BCANISTER ASSY, CHARCOAL W/OUTLET HOSE
77740RPUMP SUB-ASSY, LEAK DETECTION
77751BRACKET, CHARCOAL CANISTER BASE
77759HOSE, CHARCOAL CANISTER
77775GUIDE, CHARCOAL CANISTER OUTLET
77785HARNESS, FUEL PUMP
77785BHARNESS, FUEL PUMP, NO.2
8401
9011906A11
main90119-06A11
9011908D17
main90119-08D17
9011910995
main90119-10995
9017806025
main90178-06025
9030108019
main90301-08019
9613341501
main96133-41501
9613641901
main96136-41901
44 parts on this diagram · 5 diagrams in section
