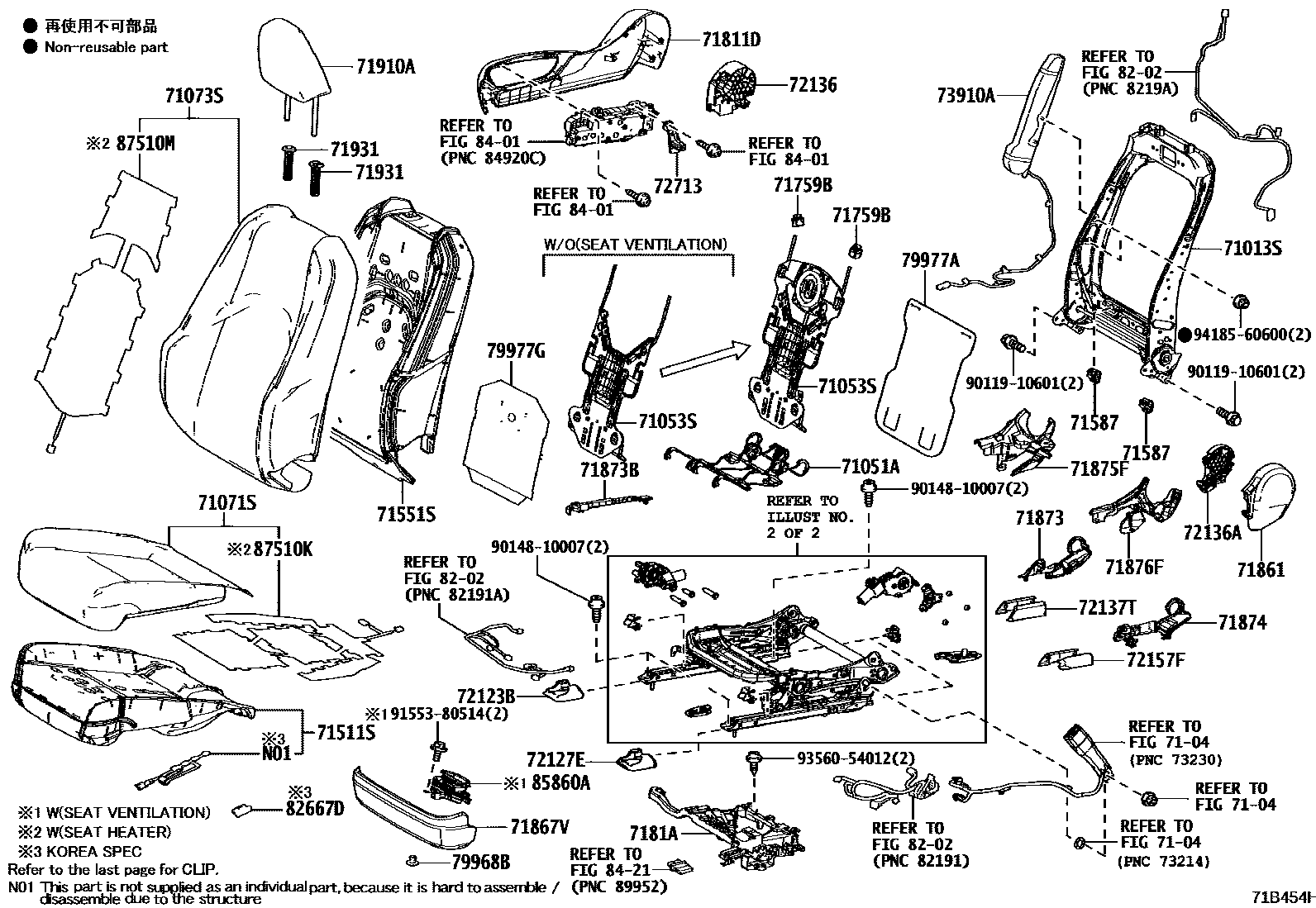

FRONT SEAT & SEAT TRACK

0001 1RH 0002 1LH 0003 1RH, F SPORT 0004 1LH, F SPORT 0005 1SEAT ADJUSTER(RH) 0006 1SEAT ADJUSTER(LH) 0007 1CLIP

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-33530iMZAA10,MZAH1#201810-201906

sub71013-33531

main71013-33531iMZAA10,MZAH1#201910-202010

sub71013-33381

main71013-76080iMZAA10,MZAH1#202010

7104

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-47090iMZAA10,MZAH1#201810-202207

71053SSPRING SUB-ASSY, FRONT SEATBACK, RH

main71053-47050iMZAA10,MZAH1#201810-202010

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-76890-B2iMZAA10,MZAH1#201810-201905

WHITE ASH/WHITE ASH,TRIM1#,8#

sub71071-76891

main71071-76890-C2iMZAA10,MZAH1#201810-201905

BLACK,TRIM2#

sub71071-76891

main71071-76890-E1iMZAA10,MZAH1#201810-201905

OCHER,TRIM4#

sub71071-76891

main71071-76891-B2iMZAA10,MZAH1#201906-201912

WHITE ASH/WHITE ASH,TRIM1#,8#

main71071-76891-C2iMZAA10,MZAH1#201906-201912

BLACK,TRIM2#

main71071-76891-E1iMZAA10,MZAH1#201906-201912

OCHER,TRIM4#

main71071-76892-B2iMZAA10,MZAH1#201912-202207

WHITE ASH,TRIM1#,8#

main71071-76892-C2iMZAA10,MZAH1#201912-202207

BLACK,TRIM2#

main71071-76892-E1iMZAA10,MZAH1#201912-202207

OCHER,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-76480-C5iMZAA10,MZAH1#201810-201905

BLACK,TRIM2#

sub71073-76481

main71073-76480-E6iMZAA10,MZAH1#201810-201905

OCHER,TRIM4#

sub71073-76481

main71073-76480-P3iMZAA10,MZAH1#201810-201905

WHITE ASH/BLUE,TRIM8#

sub71073-76481

main71073-76480-P4iMZAA10,MZAH1#201810-201905

WHITE ASH/WHITE ASH,TRIM1#

sub71073-76481

main71073-76481-C5iMZAA10,MZAH1#201906-202010

BLACK,TRIM2#

main71073-76481-E6iMZAA10,MZAH1#201906-202010

OCHER,TRIM4#

main71073-76481-P3iMZAA10,MZAH1#201906-202010

WHITE ASH/BLUE,TRIM8#

main71073-76481-P4iMZAA10,MZAH1#201906-202010

WHITE ASH/WHITE ASH,TRIM1#

main71073-76482-C5iMZAA10,MZAH1#202010-202207

BLACK,TRIM2#

main71073-76482-E6iMZAA10,MZAH1#202010-202207

OCHER,TRIM4#

main71073-76482-P3iMZAA10,MZAH1#202010-202207

WHITE ASH/BLUE,TRIM8#

main71073-76482-P4iMZAA10,MZAH1#202010-202207

WHITE ASH/WHITE ASH,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-76050iMZAA10,MZAH1#201810-202207

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-76060iMZAA10,MZAH1#201810-202207

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-47010iMZAA10,MZAH1#201810-202010

71759BHOOK, FRONT SEATBACK

main71759-50040iMZAA10,MZAH1#201810-202010

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-76110-C0iMZAA10,MZAH1#201810-202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

main7181A-33010iMZAA10,MZAH1#201810-202207

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-47070-C1iMZAA10,MZAH1#201810-202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

sub71861-47070

71867VSHIELD, FRONT SEAT CUSHION, FRONT RH

main71867-33100-C0iMZAA10,MZAH1#201810-202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-33150iMZAA10,MZAH1#201810-202001

main71873-76010iMZAA10,MZAH1#202002-202207

71873BSHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1

main71873-47090iMZAA10,MZAH1#201810-202207

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-33140iMZAA10,MZAH1#201810-202207

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-47040-C1iMZAA10,MZAH1#201810-202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

sub71875-47040

71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

main71875-47070-C1iMZAA10,MZAH1#201810-202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

sub71875-47070

71910AHEADREST ASSY, FRONT SEAT

main71910-76480-B1iMZAA10,MZAH1#201810-202108

WHITE ASH,TRIM1#

main71910-76480-C2iMZAA10,MZAH1#201810-202108

BLACK,TRIM2#

main71910-76480-E1iMZAA10,MZAH1#201810-202108

OCHER,TRIM4#

main71910-76480-J1iMZAA10,MZAH1#201810-202108

BLUE,TRIM8#

main71910-76481-B0iMZAA10,MZAH1#202108-202207

WHITE ASH,TRIM1#

main71910-76481-C3iMZAA10,MZAH1#202108-202207

BLACK,TRIM2#

main71910-76481-E0iMZAA10,MZAH1#202108-202207

OCHER,TRIM4#

main71910-76481-J0iMZAA10,MZAH1#202108-202207

BLUE,TRIM8#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050-C5iMZAA10,MZAH1#201810-202207

W(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,8#

main71931-47030-C4iMZAA10,MZAH1#201810-202207

W/O(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,8#

72123BCOVER, SEAT TRACK BRACKET, OUTER FRONT

main72123-10100iMZAA10,MZAH1#201810-202207

72127ECOVER, SEAT TRACK BRACKET, INNER FRONT

main72123-10100iMZAA10,MZAH1#201810-202207

72136SPACER, SEAT TRACK, LOWER NO.1

main72136-33230iMZAA10,MZAH1#201810-201910

72136ASPACER, SEAT TRACK, LOWER NO.2

main72136-33240iMZAA10,MZAH1#201810-201910

72137TCOVER, SEAT TRACK BRACKET, OUTER REAR RH

main72137-47060iMZAA10,MZAH1#201810-202207

72157FCOVER, SEAT TRACK BRACKET, INNER REAR RH

main72157-47080iMZAA10,MZAH1#201810-202207

72713BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH

main72713-33020iMZAA10,MZAH1#201810-202207

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-42090iMZAA10,MZAH1#202109-202207

main73910-76040iMZAA10,MZAH1#201810-202109

79968BCLIP

main90467-07215iMZAA10,MZAH1#201810-202010

79977AFELT, SEATBACK

main79977-76010iMZAA10,MZAH1#201810-202010

79977GFELT, FRONT SEATBACK, RH

main79977-33040iMZAA10,MZAH1#201810-202010

8202

82667DHOLDER, CONNECTOR

8401

8421

85860ABLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

87510MHEATER ASSY, FRONT SEATBACK, RH

9011910601

main90119-10601

9014810007

main90148-10007

9155380514

main91553-80514

9356054012

main93560-54012

9418560600

main94185-60600

44 parts on this diagram · 7 diagrams in section
