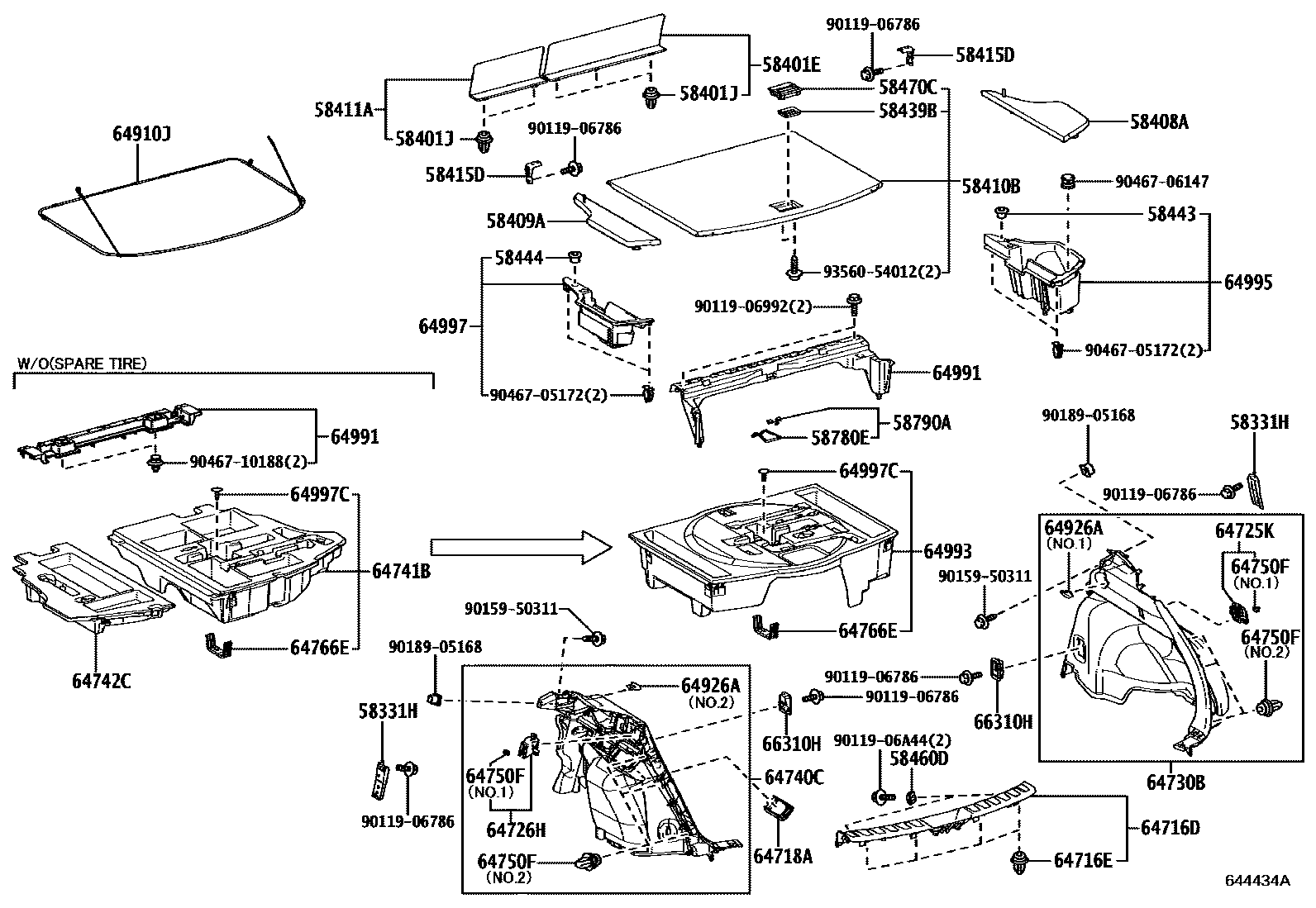

DECK BOARD & DECK TRIM COVER
58331HBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1
58401EBOARD SUB-ASSY, DECK
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,8#
58401JCLIP(FOR DECK BOAD)
58408ABOARD SUB-ASSY, DECK, NO.2
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,8#
58409ABOARD SUB-ASSY, DECK, NO.3
BLACK,TRIM0#,1#,2#,3#,4#,8#
58410BBOARD ASSY, DECK
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,8#
58411ABOARD, DECK, NO.1
BLACK,TRIM0#,1#,2#,3#,4#,8#
58415DBRACKET, DECK BOARD SUPPORT
58439BPROTECTOR, DECK BOARD, NO.1
58443CUSHION, DECK BOARD, NO.1
58444CUSHION, DECK BOARD, NO.2
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
58470CHANDLE ASSY, DECK BOARD
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,8#
58780EBAND ASSY, TOOL BOX
58790ACARRIER ASSY, JACK
64716DCOVER, DECK TRIM, REAR
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,8#
64716ECLIP(FOR DECK TRIM REAR COVER)
64718ACOVER, DECK TRIM SERVICE HOLE
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,8#
64725KHOOK, DECK SIDE TRIM, NO.1
BLACK,TRIM0#,1#,2#,3#,4#,8#
64726HHOOK, DECK SIDE TRIM, NO.2
BLACK,TRIM0#,1#,2#,3#,4#,8#
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,8#
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,8#
64741BBOX, DECK SIDE TRIM, RH
64742CBOX, DECK SIDE TRIM, LH
64750FCLIP(FOR DECK SIDE TRIM PANEL)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
64766EBEZEL, JACK COVER, LOWER
64910JCOVER ASSY, TONNEAU
64926AHOOK, TONNEAU
BLACK,TRIM0#,1#,2#,3#,4#,8#,NO.1:REFER ILLUST.
BLACK,TRIM0#,1#,2#,3#,4#,8#,NO.2:REFER ILLUST.
64991BOX, DECK FLOOR, FRONT
BLACK,TRIM0#,1#,2#,3#,4#,8#
64993BOX, DECK FLOOR, REAR
64995BOX, DECK FLOOR, RH
BLACK,TRIM0#,1#,2#,3#,4#,8#
64997BOX, DECK FLOOR, LH
BLACK,TRIM0#,1#,2#,3#,4#,8#
64997CCLIP(FOR DECK FLOOR BOX)
66310HHOOK ASSY, ROPE
9011906786
main90119-06786
9011906992
main90119-06992
9011906A44
main90119-06A44
9015950311
main90159-50311
9018905168
main90189-05168
9046705172
main90467-05172
9046706147
main90467-06147
9046710188
main90467-10188
9356054012
main93560-54012
43 parts on this diagram · 3 diagrams in section
