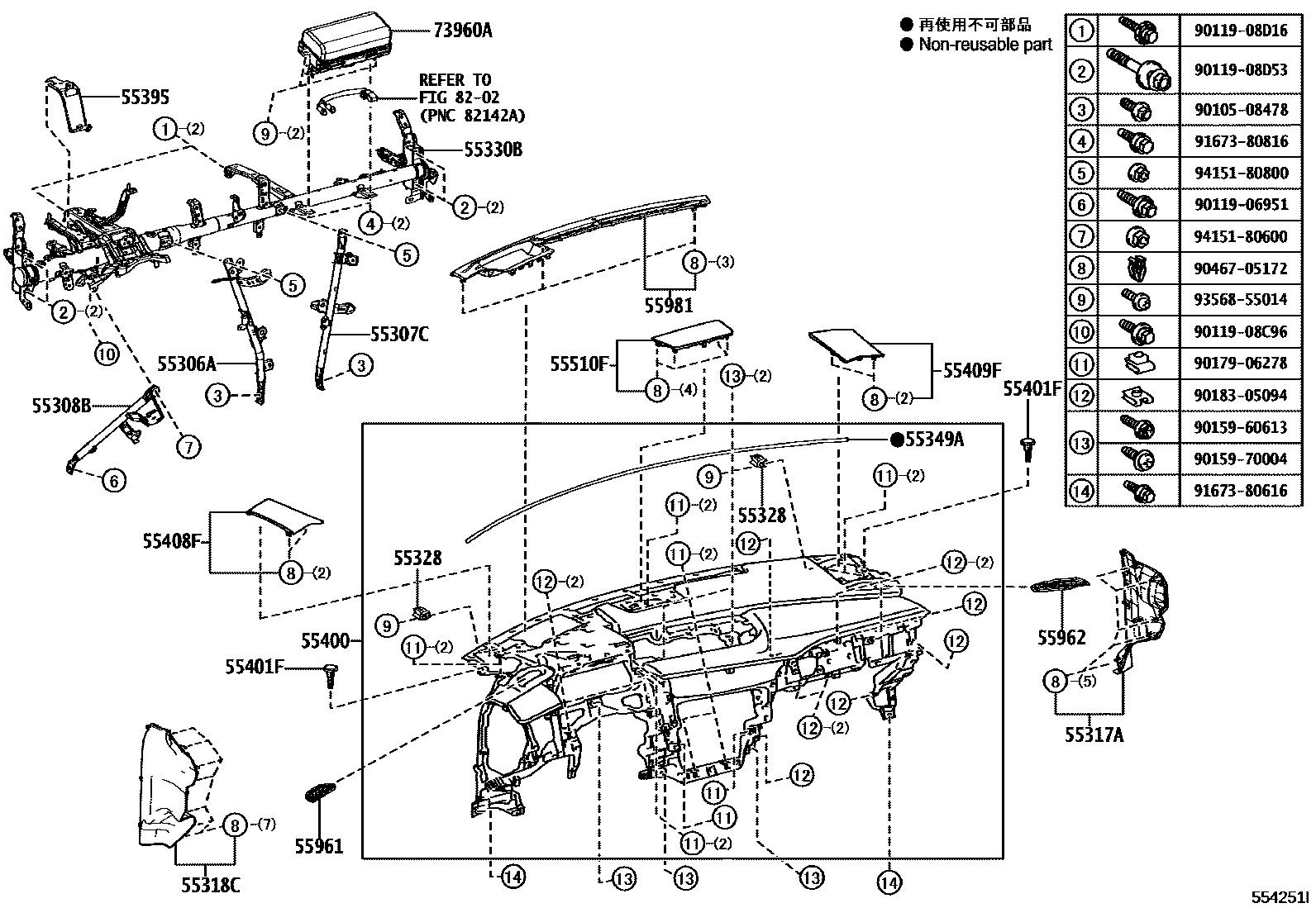

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-76040iMZAA10,MZAH1#201810-202207

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-76030iMZAA10,MZAH1#201810-202207

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-76010iMZAA10,MZAH1#201810-202207

55317APANEL, INSTRUMENT SIDE, RH

main55318-76070-C0iMZAA10,MZAH1#201810-202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

55318CPANEL, INSTRUMENT SIDE, LH

main55317-76070-C0iMZAA10,MZAH1#201810-202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-76090iMZAA10,MZAH1#201810-202207

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-76040iMZAA10,MZAH1#201810-202207

55349ACUSHION, INSTRUMENT PANEL

main55349-76030iMZAA10,MZAH1#201810-202207

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-12020iMZAA10,MZAH1#201810-202207

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-76030-29iMZAA10,MZAH1#201810-202207

BLACK/BLACK/RED,TRIM21,3#

main55400-76030-40iMZAA10,MZAH1#201810-202207

BLACK/BLACK/LT.GRAY,TRIM01,1#,20

main55400-76030-41iMZAA10,MZAH1#201810-202207

BLACK/BLACK/ROYAL BROWN,TRIM41

main55400-76030-44iMZAH15202108-202207

BLACK/BLACK/BLUE,TRIM25

main55400-76030-E1iMZAA10,MZAH1#201810-202207

OCHER/BLACK/ROYAL BROWN,TRIM40

main55400-76030-J1iMZAA10,MZAH1#201810-202207

BLUE/BLACK/LT.GRAY,TRIM02,23,8#

55401FCLIP(FOR SAFETY PAD)

main52161-16010iMZAA10,MZAH1#201810-202207

sub52161-0K040

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-76040-C0iMZAA10,MZAH1#201810-202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-76050-C0iMZAA10,MZAH1#201810-202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55510-76050-C0iMZAA10,MZAH1#201810-202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-76010-C0iMZAA10,MZAH1#201810-202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-76010-C0iMZAA10,MZAH1#201810-202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-76050-C0iMZAA10,MZAH1#201810-202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-76030iMZAA10,MZAH1#201810-202207

8202

9010508478

main90105-08478

9011906951

main90119-06951

9011908C96

main90119-08C96

9011908D16

main90119-08D16

9011908D53

main90119-08D53

9015960613

main90159-60613

9015970004

main90159-70004

9017906278

main90179-06278

9018305094

main90183-05094

9046705172

main90467-05172

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

34 parts on this diagram · 4 diagrams in section
