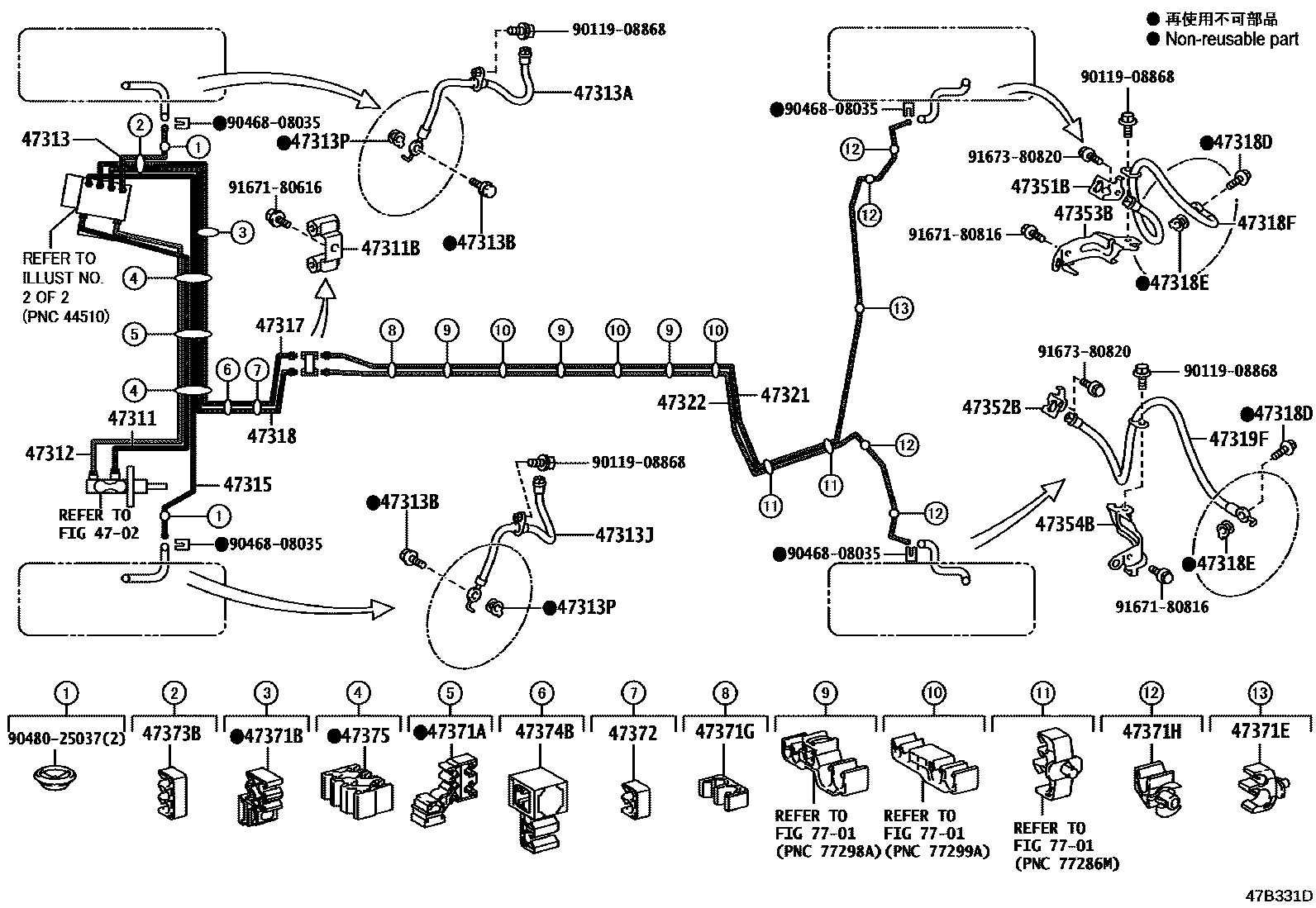

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE ACTUATOR 0004 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-76040iMZAA10201810-202207

main47311-76060iMZAH1#201811-202207

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iMZAA10,MZAH1#201810-202207

47312TUBE, FRONT BRAKE, NO.2

main47312-76020iMZAA10201810-202207

main47312-76040iMZAH1#201811-202207

47313TUBE, FRONT BRAKE, NO.3

main47313-12A40iMZAA10201810-202207

main47313-76040iMZAH1#201811-202207

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02H46iMZAA10,MZAH1#201810-202207

sub90947-02K97

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iMZAA10,MZAH1#201810-202207

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02H47iMZAA10,MZAH1#201810-202207

sub90947-02K98

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021iMZAA10,MZAH1#201810-202207

47315TUBE, FRONT BRAKE, NO.5

main47315-12630iMZAA10201810-202207

main47315-76020iMZAH1#201811-202207

47317TUBE, FRONT BRAKE, NO.7

main47317-12610iMZAA10201810-202207

main47317-76040iMZAH1#201811-202207

47318TUBE, FRONT BRAKE, NO.8

main47318-12750iMZAA10201810-202207

main47318-76040iMZAH1#201811-202207

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iMZAA10,MZAH1#201810-202207

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021iMZAA10,MZAH1#201810-202207

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02H69iMZAA10,MZAH1#201810-202207

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02H70iMZAA10,MZAH1#201810-202207

47321TUBE, REAR BRAKE, NO.1

main47321-12410iMZAA10,MZAH1#201810-202207

47322TUBE, REAR BRAKE, NO.2

main47322-12570iMZAA10,MZAH1#201810-202207

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-47030iMZAA10,MZAH1#201810-202207

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-47030iMZAA10,MZAH1#201810-202207

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47351-10110iMZAA10,MZAH1#201810-202207

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-10060iMZAA10,MZAH1#201810-202207

47371ACLAMP, BRAKE TUBE, NO.1

main47371-33380iMZAH1#201811-202207

main47371-76020iMZAA10201810-202207

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01E51iMZAA10201810-202207

main90949-01E69iMZAH1#201811-202207

47371ECLAMP, BRAKE TUBE, NO.9

main77285-12170iMZAA10,MZAH1#201810-202207

47371GCLAMP, BRAKE TUBE, NO.11

main90464-00904iMZAA10,MZAH1#201810-202207

47371HCLAMP, BRAKE TUBE, NO.12

main90949-01E10iMZAA10,MZAH1#201810-202207

47372CLAMP, BRAKE TUBE, NO.2

main90949-01D91iMZAA10,MZAH1#201810-202207

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D92iMZAA10201810-202207

main90949-01D99iMZAH1#201811-202207

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01E33iMZAA10,MZAH1#201810-202207

47375CLAMP, BRAKE TUBE, NO.5

main90949-01E44iMZAA10201810-202207

main90949-01E51iMZAH1#201811-202207

7701

9011908868

main90119-08868

9046808035

main90468-08035

9048025037

main90480-25037

9167180616

main91671-80616

9167180816

main91671-80816

9167380820

main91673-80820

38 parts on this diagram · 4 diagrams in section
