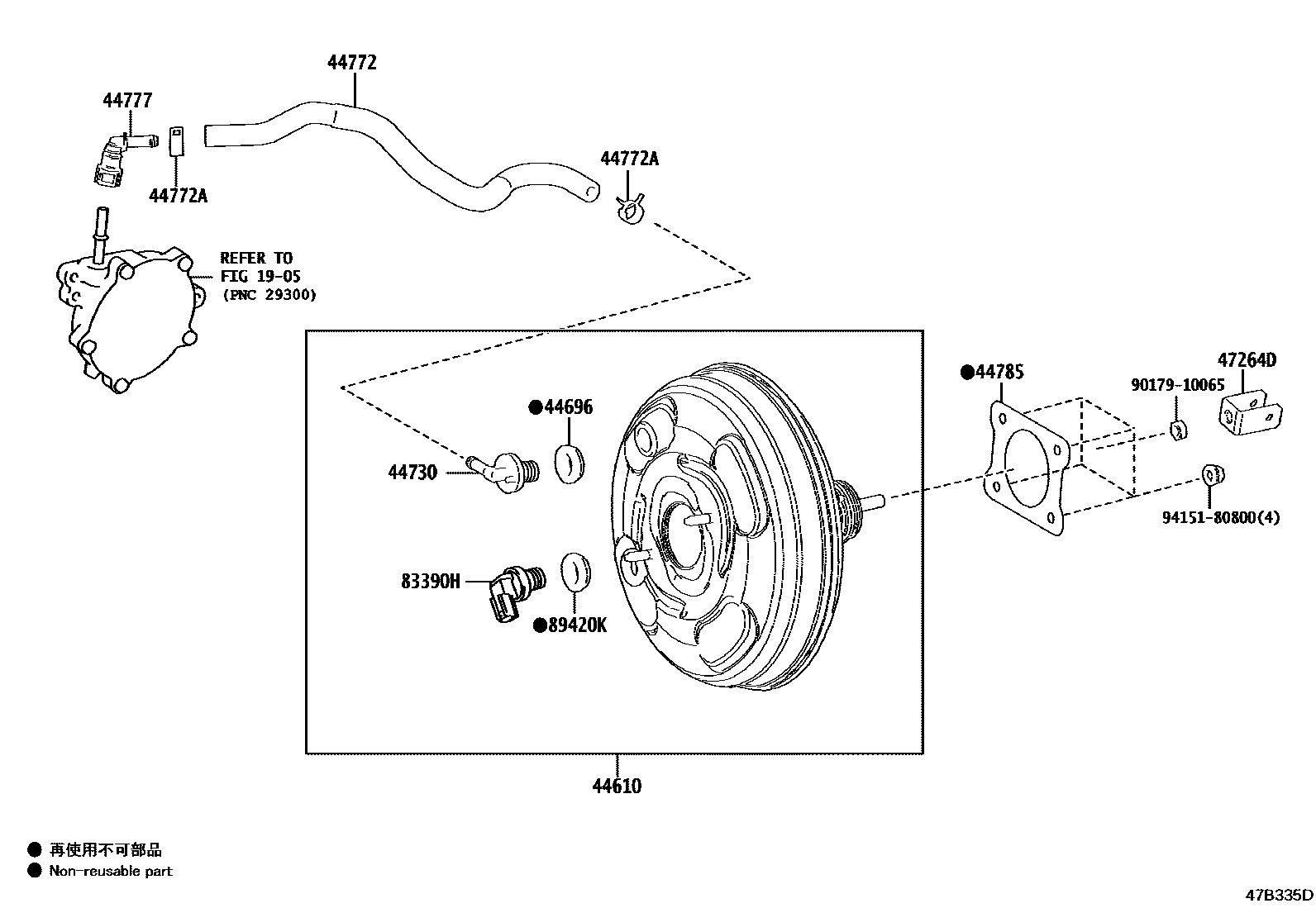

BRAKE BOOSTER & VACUUM TUBE

1905

44610BOOSTER ASSY, BRAKE

main44610-76070iMZAA10201810-202207

44696GROMMET, CHECK VALVE

main90480-24015iMZAA10201810-202207

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28010iMZAA10201810-202207

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-12780iMZAA10201810-202207

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iMZAA10201810-202207

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-12010iMZAA10201810-202207

44785GASKET, BRAKE BOOSTER

main44785-12040iMZAA10201810-202207

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-76020iMZAA10201810-202207

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iMZAA10201810-202207

89420KGROMMET, VACUUM SENSOR

main90480-24015iMZAA10202206-202207

main90480-24439iMZAA10201810-202206

9017910065

main90179-10065

9415180800

main94151-80800

13 parts on this diagram · 1 diagram in section
