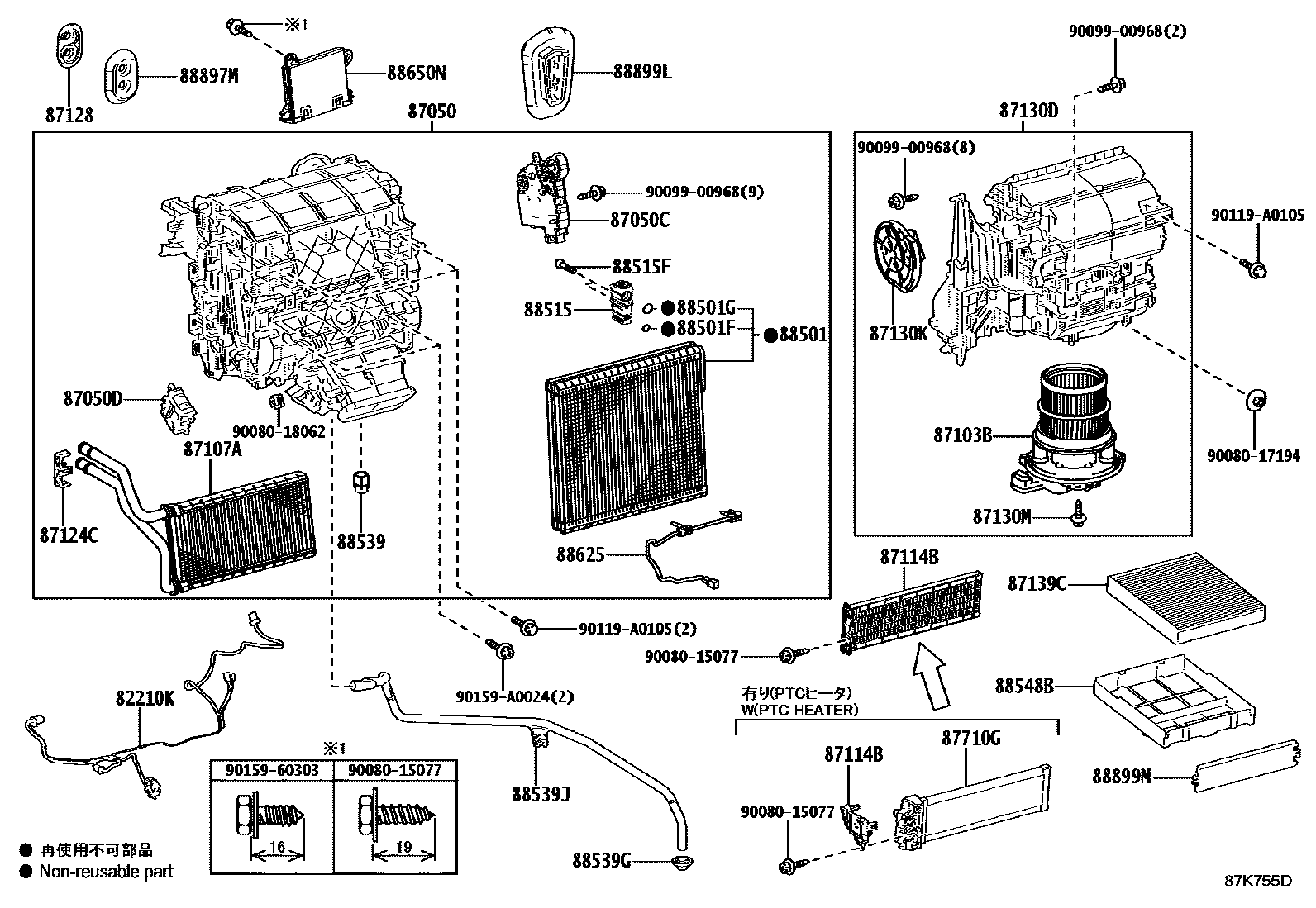

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87050RADIATOR ASSY, AIR CONDITIONER
87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
(L)
87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
(L)
(J)
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87114BCOVER, HEATER
COLD AREA SPEC
87124CCLAMP, HEATER
87128GROMMET, HEATER
87130DBLOWER ASSY
87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1
(L)
(J)
87130MSCREW(FOR BLOWER)
87139CFILTER, CLEAN AIR
DEODORANT FILTER,OE PART
87710GQUICK HEATER ASSY
COLD AREA SPEC
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
(L)
(J)
88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
ID=10.8,OD=15.6,(L)
ID=10.8,OD=15.6,(J)
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
ID=13.4,OD=18.2,(L)
ID=13.4,OD=18.2,(J)
88515FBOLT(FOR COOLER EXPANSION VALVE)
88539HOSE, COOLER UNIT DRAIN, NO.1
88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)
88539JHOSE, DRAIN COOLER
88548BCASE, AIR FILTER
88625THERMISTOR, COOLER, NO.1
(L)
(L)
88650NAMPLIFIER ASSY, AIR CONDITIONER
FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
88897MGROMMET (FOR HEATER PIPE)
88899MPLATE, COVER(FOR AIR FILTER)
9008015077
main90080-15077
9008017194
main90080-17194
9008018062
main90080-18062
9009900968
main90099-00968
90119A0105
main90119-A0105
9015960303
main90159-60303
90159A0024
main90159-A0024
35 parts on this diagram · 1 diagram in section
