CAMERA & REAR MONITOR DISPLAY
8106
86790BCAMERA ASSY, TELEVISION, FR
LUXURY PACKAGE&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
PREMIUM PACKAGE&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
PREMIUM PACKAGE&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
LUXURY PACKAGE&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
86790DCAMERA ASSY, TELEVISION, RR
COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
sub867B0-F6011
COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
sub867B0-F6021
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
sub867B0-F6021
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
sub867B0-F6050
COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
sub867B0-F6050
COLD AREA SPEC
COLD AREA SPEC
COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
86790ECAMERA ASSY, TELEVISION, SIDE RH
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
86790FCAMERA ASSY, TELEVISION, SIDE LH
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
86792CCOMPUTER, PARKING ASSIST
PREMIUM PACKAGE&AUDIO-EMVN & 10SPEAKER&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORTBRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
PREMIUM PACKAGE&AUDIO-EMVN & 17SPEAKER&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORTBRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
LUXURY PACKAGE&AUDIO-EMVN & 10SPEAKER&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORTBRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
LUXURY PACKAGE&AUDIO-EMVN & 17SPEAKER&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORTBRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
LUXURY PACKAGE&AUDIO-EMVN & 10SPEAKER&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORTBRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
LUXURY PACKAGE&AUDIO-EMVN & 17SPEAKER&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORTBRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
PREMIUM PACKAGE&AUDIO-EMVN & 10SPEAKER&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORTBRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
PREMIUM PACKAGE&AUDIO-EMVN & 17SPEAKER&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORTBRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
AUDIO-EMVN & 17SPEAKER&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
AUDIO-EMVN & 10SPEAKER&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
AUDIO-EMVN & 10SPEAKER&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
AUDIO-EMVN & 17SPEAKER&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
86794BCOVER, TELEVISION CAMERA
LUXURY PACKAGE&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
PREMIUM PACKAGE&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
86799WIRE, TELEVISION CAMERA
PREMIUM PACKAGE&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
LUXURY PACKAGE&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
86799BWIRE, TELEVISION CAMERA, RH
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
86799CWIRE, TELEVISION CAMERA, LH
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
867C0CAMERA ASSY, INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & WITH(*GDO)
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & WITH(*GDO)
867F0NOZZLE ASSY, CAMERA CLEANER
COLD AREA SPEC
COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
9008017244
main90080-17244
9015960621
main90159-60621
90159A0034
main90159-A0034
90167A0020
main90167-A0020
90167A0021
main90167-A0021
9018906244
main90189-06244

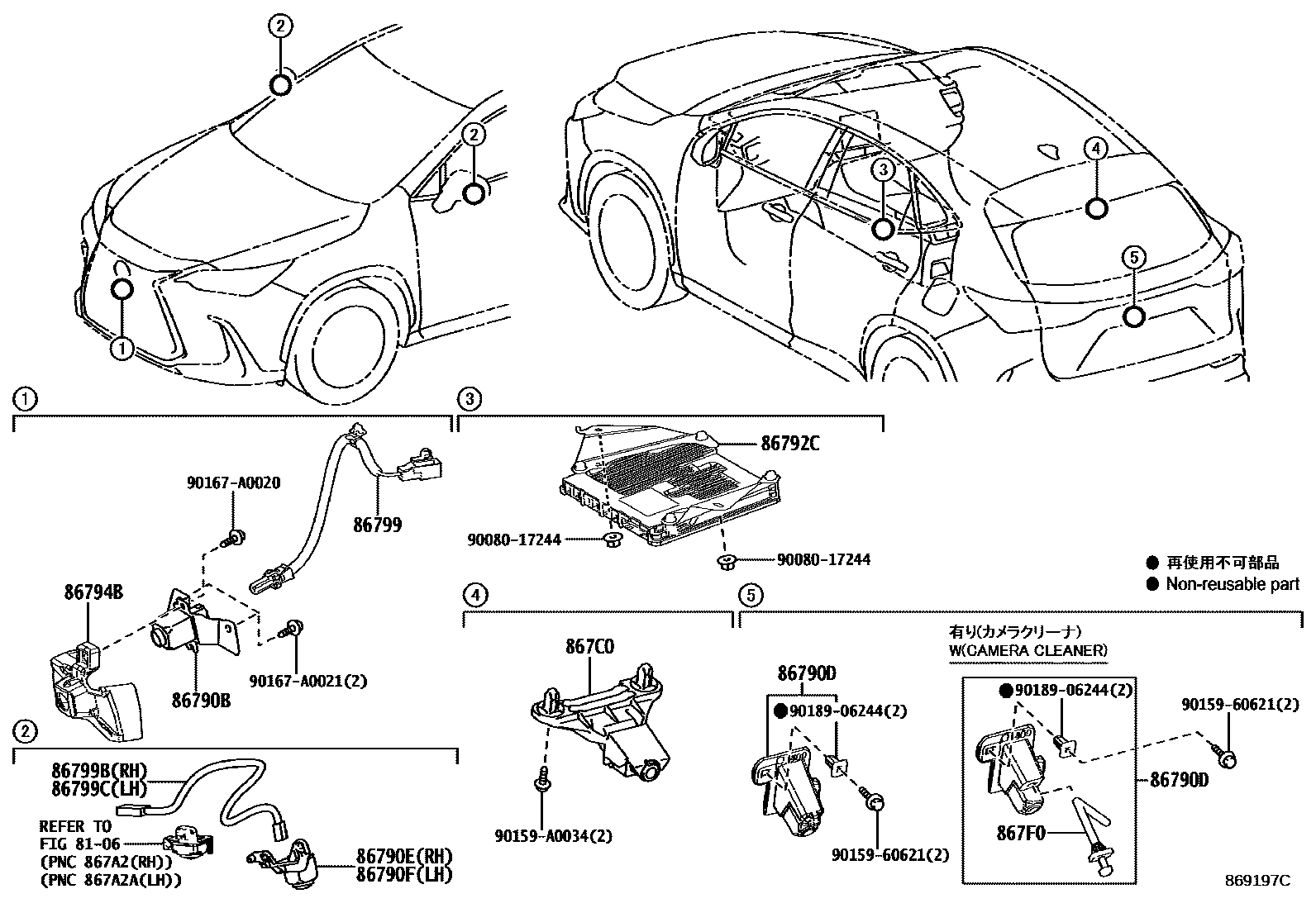

18 parts on this diagram · 1 diagram in section
