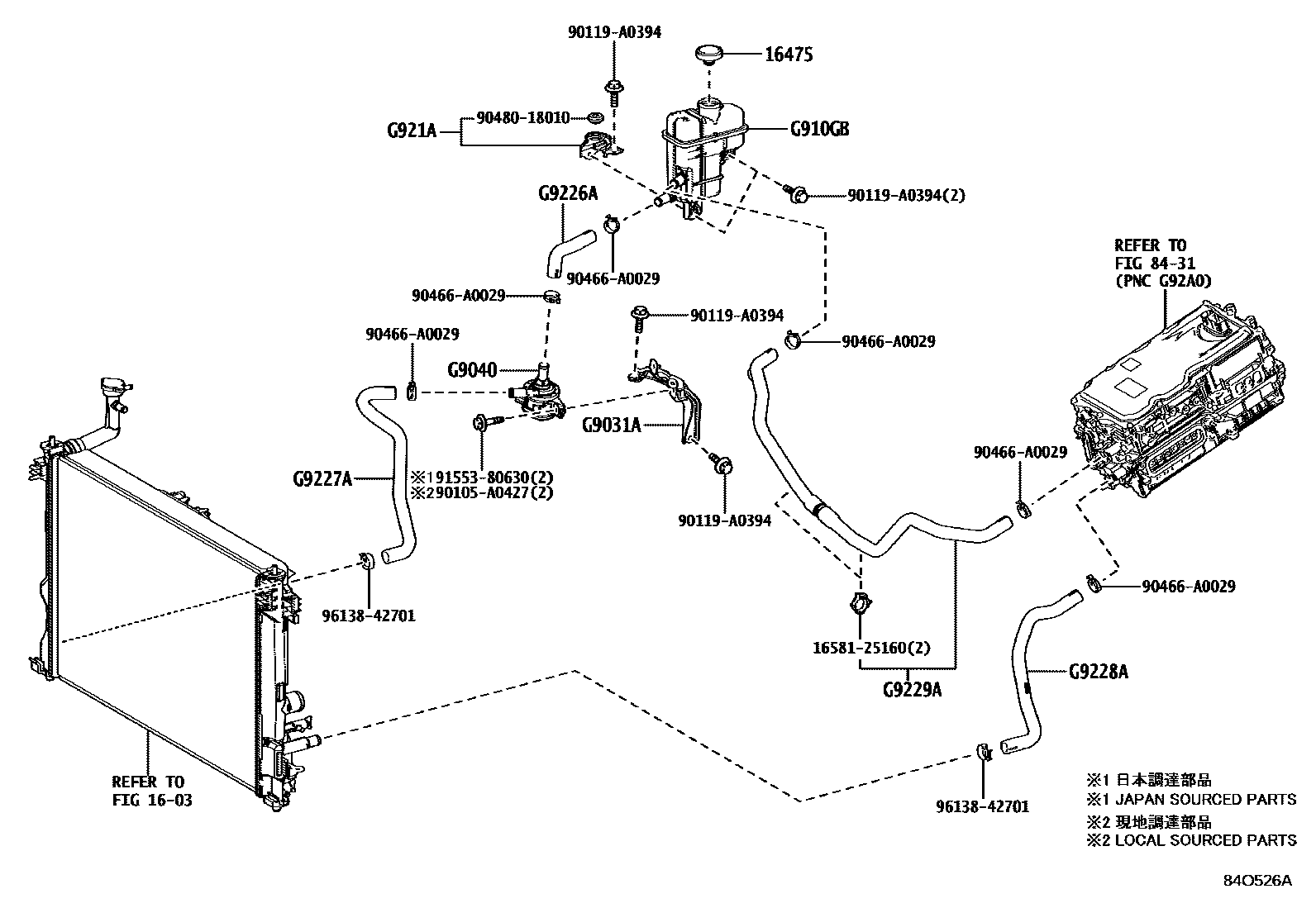

INVERTER COOLING

0001 1W/O(TOWING PACKAGE) 0002 1W(TOWING PACKAGE)

1603

16475CAP, RESERVE TANK

main16475-28140iA25AFXS..AAZH25202203

8431

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG914142010iAAZH25202404

mainG9141F6010iAAZH25202203-202404

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904004020iAAZH25202404

mainG90400E060iAAZH25202311-202404

(L)

subG9040-0R040

mainG904042020iAAZH25202203-202303

mainG904048050iAAZH25202304-202311

mainG904048050iAAZH25202311-202404

(J)

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G0R010iAAZH25202203

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H20R010iAAZH25202203

G9226AHOSE, INVERTER COOLING, NO.2

mainG92260R020iAAZH25202404

mainG9226F6010iAAZH25202203-202404

G9227AHOSE, INVERTER COOLING, NO.3

mainG92270R020iAAZH25202404

mainG9227F6010iAAZH25202203-202404

G9228AHOSE, INVERTER COOLING, NO.4

mainG9228F6010iAAZH25202404

mainG9228F6020iAAZH25202203-202404

G9229AHOSE, INVERTER COOLING, NO.5

mainG92290R020iAAZH25202404

mainG9229F6010iAAZH25202203-202404

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160

90105A0427

main90105-A0427

90119A0394

main90119-A0394

90466A0029

main90466-A0029

9048018010

main90480-18010

9155380630

main91553-80630

9613842701

main96138-42701

18 parts on this diagram · 2 diagrams in section
