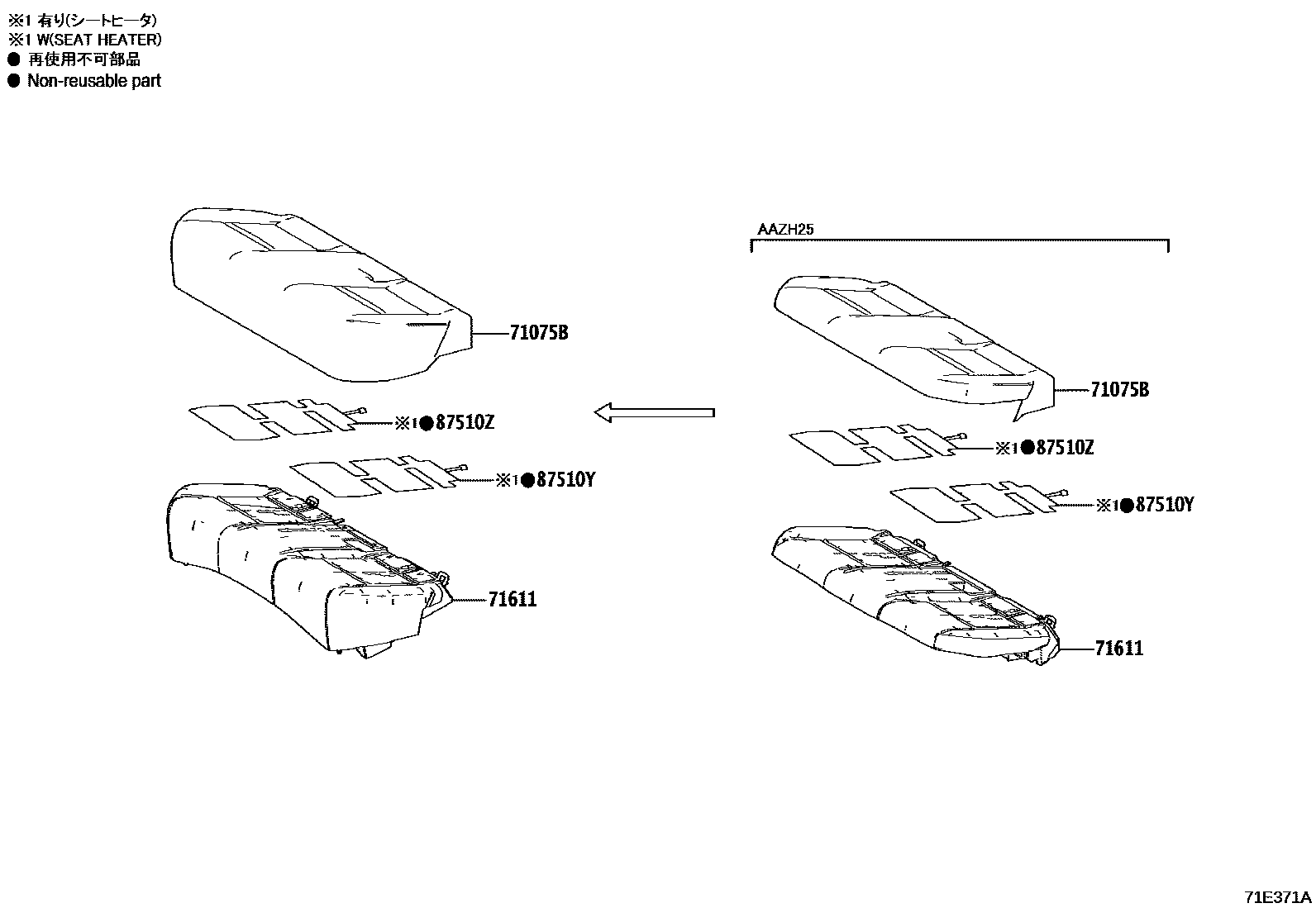

REAR SEAT & SEAT TRACK
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
SEAT COVER MATERIAL-SYNTHETIC LEATHER,RICH CREAM,TRIM0#
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),RICH CREAM,TRIM0#
RICH CREAM,TRIM0#
PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,RICH CREAM,TRIM0#
PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),RICH CREAM,TRIM0#
PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
BLACK,TRIM2#
PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),BLACK,TRIM2#
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),BLACK,TRIM2#
PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK.ROSE,TRIM3#
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),DK.ROSE,TRIM3#
PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),DK.ROSE,TRIM3#
DK.ROSE,TRIM3#
SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK.ROSE,TRIM3#
HAZEL,TRIM4#
PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,HAZEL,TRIM4#
PREMIUM PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),HAZEL,TRIM4#
SEAT COVER MATERIAL-SYNTHETIC LEATHER,HAZEL,TRIM4#
SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),HAZEL,TRIM4#
RICH CREAM,TRIM0#
BLACK,TRIM2#
DK.ROSE,TRIM3#
HAZEL,TRIM4#
WHITE,TRIM0#
BLACK,TRIM2#
BLACK/RED,TRIM3#
71611PAD, REAR SEAT CUSHION
87510YHEATER ASSY, REAR NO.1 SEAT CUSHION, LH
87510ZHEATER ASSY, REAR NO.1 SEAT CUSHION, RH
4 parts on this diagram · 5 diagrams in section
