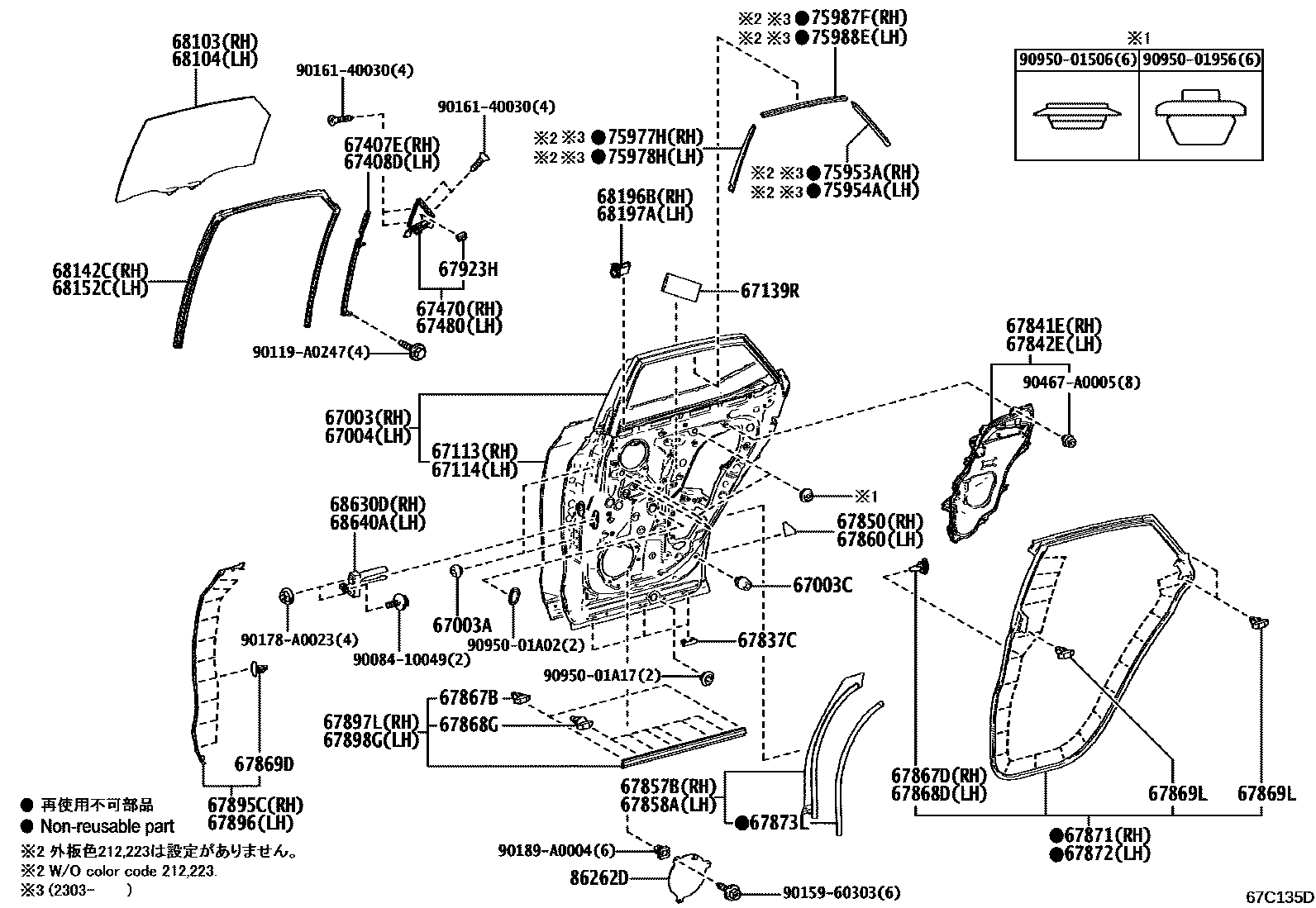

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-F6010iAAZH25,TAZA25202203-202508

67003APLUG, HOLE(FOR REAR DOOR PANEL)

main68714-50040iAAZA2#202203-202508

67003CCUSHION, REAR DOOR PANEL

main90541-09069iAAZA2#202203-202508

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-F6010iAAZA2#202203-202508

67113PANEL, REAR DOOR, OUTER RH

main67113-F6010iAAZA2#202203-202508

67114PANEL, REAR DOOR, OUTER LH

main67114-F6010iAAZA2#202203-202508

67139RLINING, DOOR OUTSIDE PANEL REINFORCEMENT

main67139-76020iAAZA2#202203-202508

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-F6010iAAZA2#202203-202508

67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH

main67408-F6010iAAZH25,TAZA25202203-202508

67470SEAL ASSY, REAR DOOR REAR GUIDE, RH

main67470-F6010iAAZA2#202203-202508

67480SEAL ASSY, REAR DOOR REAR GUIDE, LH

main67480-F6010iAAZA2#202203-202508

67837CSEAL, REAR DOOR DUST PROOF

main67837-0E060iAAZA2#202203-202508

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-F6010iAAZA2#202203-202508

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-F6010iAAZA2#202203-202508

67850PROTECTOR ASSY, REAR DOOR, REAR RH

main67850-F6010iAAZA2#202203-202508

main67850-F6010iAAZH25,TAZA25202203

HAWAII SPEC

main67850-F6010iAAZH25,TAZA25202203

PUERTO RICO SPEC

main67850-F6010iAAZH25,TAZA25202203

MEXICO SPEC

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-F6010iAAZA2#202203-202508

67858APROTECTOR, REAR DOOR PANEL, LH

main67858-F6010iAAZA2#202203-202508

67860PROTECTOR ASSY, REAR DOOR, REAR LH

main67860-F6010iAAZH25,TAZA25202203

MEXICO SPEC

main67860-F6010iAAZA2#202203-202508

main67860-F6010iAAZH25,TAZA25202203

HAWAII SPEC

main67860-F6010iAAZH25,TAZA25202203

PUERTO RICO SPEC

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main53145-60030iAAZA2#202203-202508

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iAAZA2#202203-202508

BLUE

main67867-48030iAAZA2#202203-202508

BLACK

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iAAZA2#202203-202508

PINK

main67867-48030iAAZH25,TAZA25202203-202508

BLACK

67868GRETAINER, DOOR WEATHERSTRIP

main67867-12150iAAZH25,TAZA25202203-202508

67869DCLIP, DOOR WEATHERSTRIP

main67869-78010iAAZH25,TAZA25202206-202508

COLOR:BLACK

main67869-78020iAAZH25,TAZA25202206-202508

COLOR:PINK

main67869-78030iAAZA2#,AAZH25,TAZA25202206-202404

COLOR = GREEN

main67869-78030iAAZA2#202404-202508

COLOR = BROWN

main90467-04035iAAZA2#,AAZH25,TAZA25202203-202205

COLOR:BLACK

main90467-04036iAAZA2#,AAZH25,TAZA25202203-202205

COLOR = GREEN

main90467-04037iAAZA2#,AAZH25,TAZA25202203-202205

COLOR = BROWN

67869LCLIP, REAR DOOR WEATHERSTRIP

main67869-26050iAAZA2#202203-202508

67871WEATHERSTRIP, REAR DOOR, RH

main67871-F6010iAAZH25,TAZA25202203-202508

67872WEATHERSTRIP, REAR DOOR, LH

main67872-F6010iAAZA2#202203-202508

67873LWEATHERSTRIP, REAR DOOR, NO.5 RH

main67873-F6010iAAZA2#202203-202508

67895CWEATHERSTRIP, REAR DOOR, NO.3 RH

main67895-F6010iAAZA2#,AAZH25,TAZA25202203-202205

sub67895-F6011

main67895-F6011iAAZA2#,AAZH25,TAZA25202206-202403

sub67895-F6012

main67895-F6012iAAZA2#202404-202508

67896WEATHERSTRIP, REAR DOOR, NO.3 LH

main67896-F6010iAAZA2#,AAZH25,TAZA25202203-202205

sub67896-F6011

main67896-F6011iAAZA2#,AAZH25,TAZA25202206-202403

sub67896-F6012

main67896-F6012iAAZA2#202404-202508

67897LWEATHERSTRIP, REAR DOOR, NO.4 RH

main67897-F6010iAAZA2#202203-202508

67898GWEATHERSTRIP, REAR DOOR, NO.4 LH

main67898-F6010iAAZA2#202203-202508

67923HRETAINER, DOOR CORNER SEAL

main67923-33100iAAZA2#202203-202508

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-F6010iAAZA2#202203-202508

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-F6010iAAZA2#202203-202508

68142CRUN, REAR DOOR GLASS, RH

main68142-F6010iAAZA2#202203-202508

68152CRUN, REAR DOOR GLASS, LH

main68152-F6010iAAZA2#202203-202508

68196BSEAL, REAR DOOR BELT, FRONT RH

main68196-F6010iAAZA2#202203-202508

68197ASEAL, REAR DOOR BELT, FRONT LH

main68197-F6010iAAZA2#202203-202508

68630DCHECK ASSY, REAR DOOR, RH

main68630-F6010iAAZA2#,AAZH25,TAZA25202203-202208

main68630-F6011iAAZA2#202209-202508

68640ACHECK ASSY, REAR DOOR, LH

main68640-F6010iAAZA2#,AAZH25,TAZA25202203-202208

sub68640-F6011

main68640-F6011iAAZA2#202209-202508

75953ATAPE, BLACK OUT, INNER REAR RH

main75953-F6010iAAZA2#,AAZH25,TAZA25202203-202508

75954ATAPE, BLACK OUT, INNER REAR LH

main75954-F6010iAAZA2#,AAZH25,TAZA25202203-202508

75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH

main75977-F6010iAAZA2#,AAZH25,TAZA25202203-202508

75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH

main75978-F6010iAAZA2#,AAZH25,TAZA25202203-202508

75987FSTRIPE, REAR DOOR, OUTSIDE, RH

main75987-F6010iAAZA2#,AAZH25,TAZA25202203-202508

75988ESTRIPE, REAR DOOR, OUTSIDE LH

main75988-F6010iAAZA2#,AAZH25,TAZA25202203-202508

86262DCOVER, REAR DOOR SPEAKER

main86262-47010iAAZA2#202203-202508

9008410049

main90084-10049

90119A0247

main90119-A0247

9015960303

main90159-60303

9016140030

main90161-40030

90178A0023

main90178-A0023

90189A0004

main90189-A0004

90467A0005

main90467-A0005

9095001506

main90950-01506

9095001956

main90950-01956

9095001A02

main90950-01A02

9095001A17

main90950-01A17

58 parts on this diagram · 2 diagrams in section
