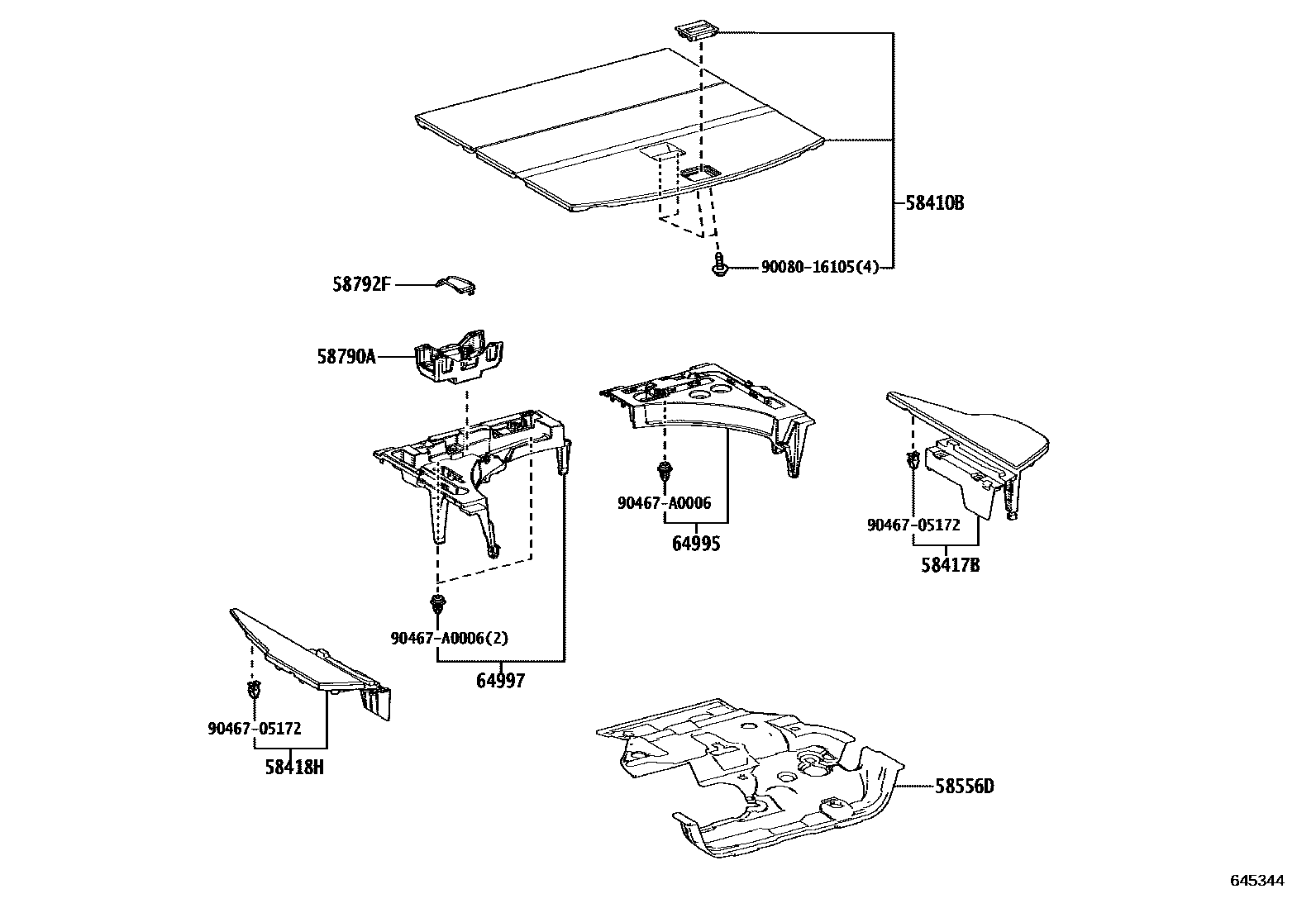

DECK BOARD & DECK TRIM COVER

0001 1DECK BOARD:W(SPARE TIRE) 0002 1DECK BOARD:W/O(SPARE TIRE) 0003 1DECK BOARD 0004 1DECK SIDE TRIM COVER

58410BBOARD ASSY, DECK

main58410-F6010-C0iAAZA2#202203-202508

BLACK,TRIM0#,2#,3#,4#

58417BBOARD, REAR FLOOR, REAR RH

main58417-F6010-C0iAAZA2#202203-202508

BLACK,TRIM0#,2#,3#,4#

main58417-F6020-C0iAAZH25202203

BLACK,TRIM0#,2#,3#,4#

58418HBOARD, REAR FLOOR, REAR LH

main58418-F6020-C0iAAZA2#202203-202508

BLACK,TRIM0#,2#,3#,4#

58556DSILENCER, REAR FLOOR

main58556-F6010iAAZA2#202203-202508

58790ACARRIER ASSY, JACK

58792FSUPPORT, JACK CARRIER

64995BOX, DECK FLOOR, RH

main64995-F6020iAAZA2#202203-202508

64997BOX, DECK FLOOR, LH

main64997-F6020iAAZA2#202203-202508

9008016105

main90080-16105

9046705172

main90467-05172

90467A0006

main90467-A0006

11 parts on this diagram · 4 diagrams in section
