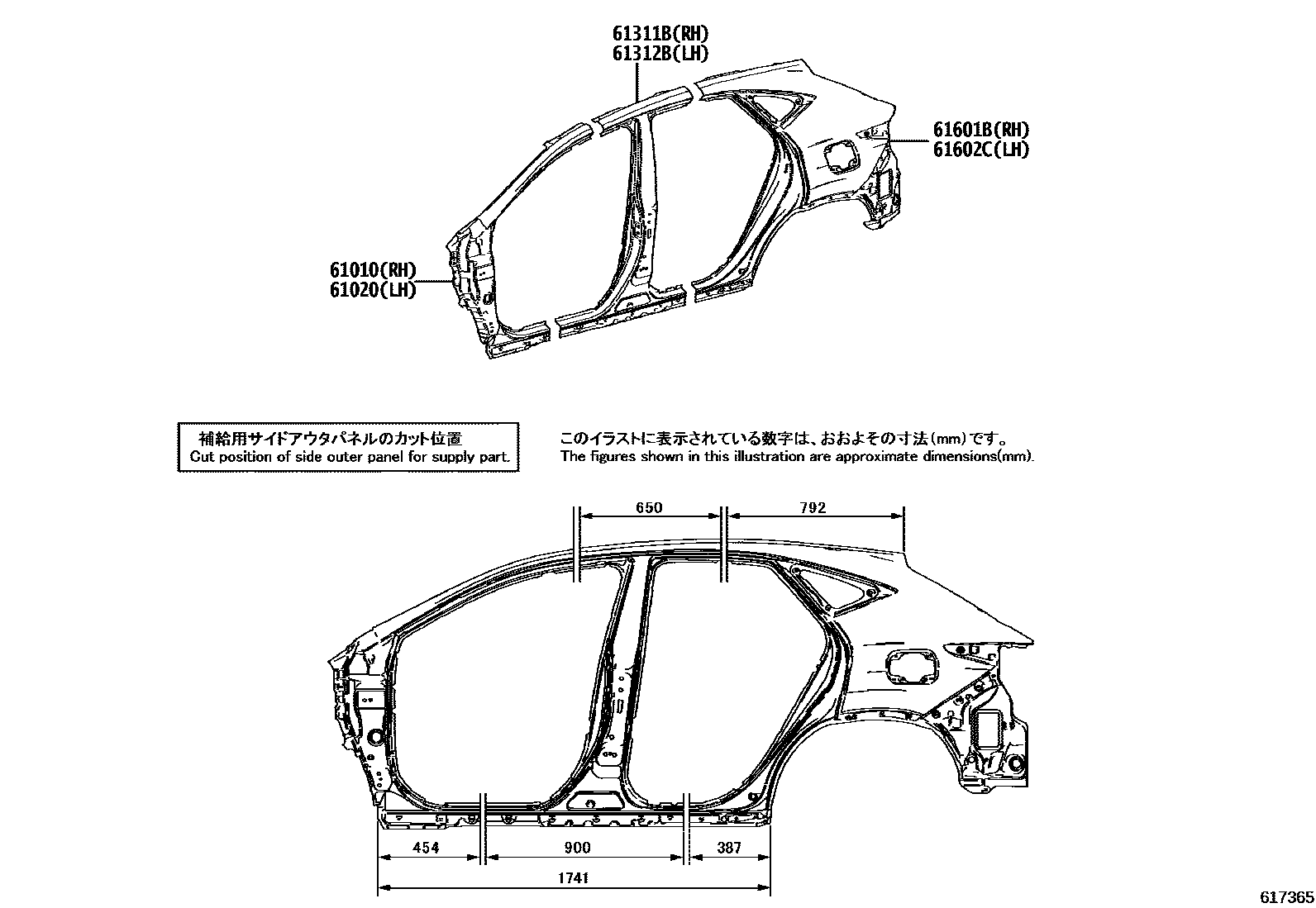

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH

61010MEMBER ASSY, SIDE, RH

main61010-F6010iAAZA2#202203-202508

61020MEMBER ASSY, SIDE, LH

main61020-F6010iAAZA2#202203-202508

61311BPILLAR, CENTER BODY, OUTER RH

main61311-F6010iAAZA2#202203-202508

61312BPILLAR, CENTER BODY, OUTER LH

main61312-F6010iAAZA2#202203-202508

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-F6020iAAZA2#202203-202508

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-F6020iAAZA2#202203-202508

6 parts on this diagram · 3 diagrams in section
